Trunk Light Test

WARNING: This page is about a different car, the 2003 Acura 3.2CL, 2002 Acura 3.2CL, and 2001 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the trunk lid.
  2. Pry out the trunk light assembly.
  3. Disconnect the 2P connector (A) from the housing (B).

    TRUNK LIGHT:  5 W

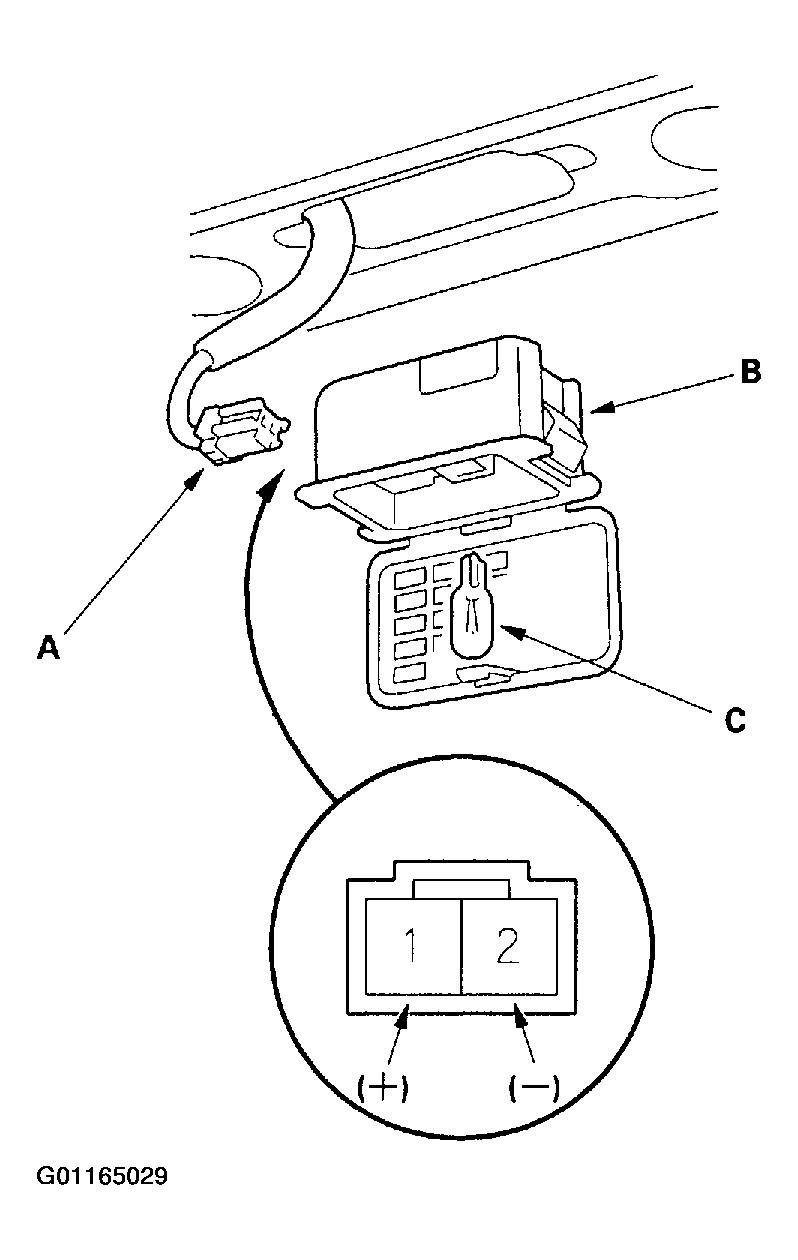

    Fig 1: Disconnect The Connector From The Housing
    G01165029Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Check for continuity between the No. 1 and No. 2 terminals. If there is no continuity, check the bulb (C). If the bulb is OK, replace the trunk light.
