Trunk Latch Switch Test

WARNING: This page is about a different car, the 2003 Acura 3.2CL, 2002 Acura 3.2CL, and 2001 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the trunk lid.
  2. Disconnect the 6P connector from the trunk lid latch.

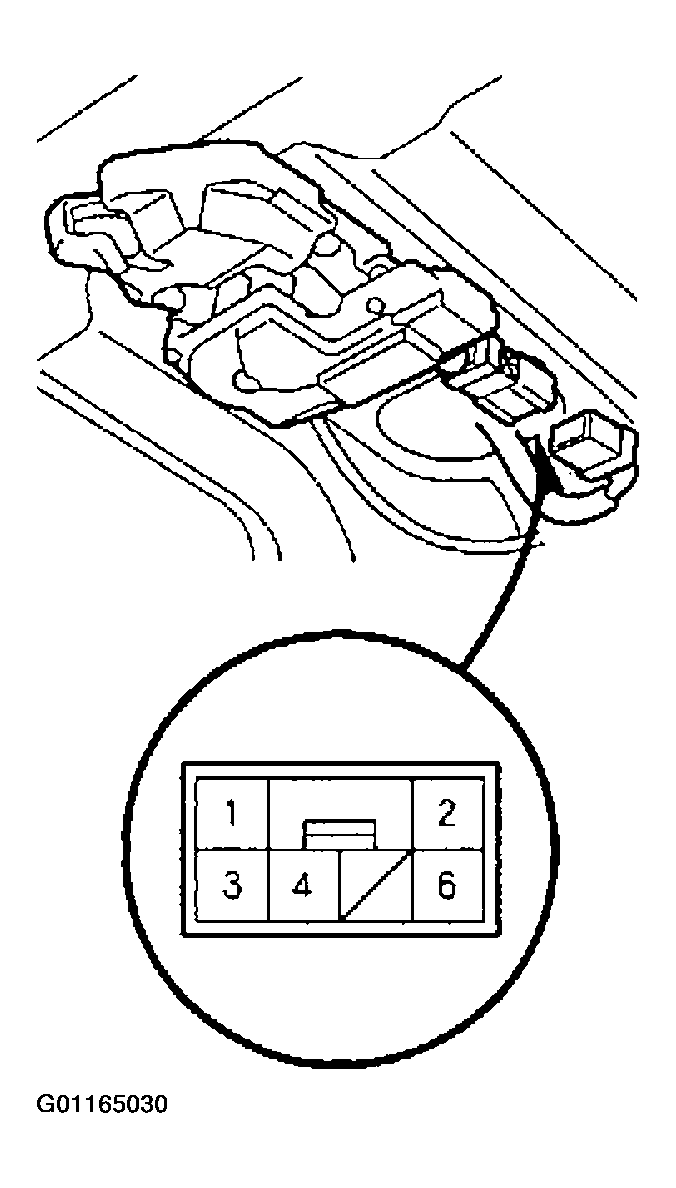

    Fig 1: Disconnecting The Connector From The Trunk Lid Latch
    G01165030Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the No. 1 and No. 6 terminals and the No. 2 and No. 6 terminals.
    • With the trunk lid open, there should be continuity.
    • With the trunk lid closed, there should be no continuity.
  4. If the continuity is not as specified, replace the trunk lid latch switch.
