Spotlight Test

WARNING: This page is about a different car, the 2003 Acura 3.2CL, 2002 Acura 3.2CL, and 2001 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the light switch OFF.
  2. Carefully pry off the lens (A) with a small screwdriver.

    SPOTLIGHT:  4CP

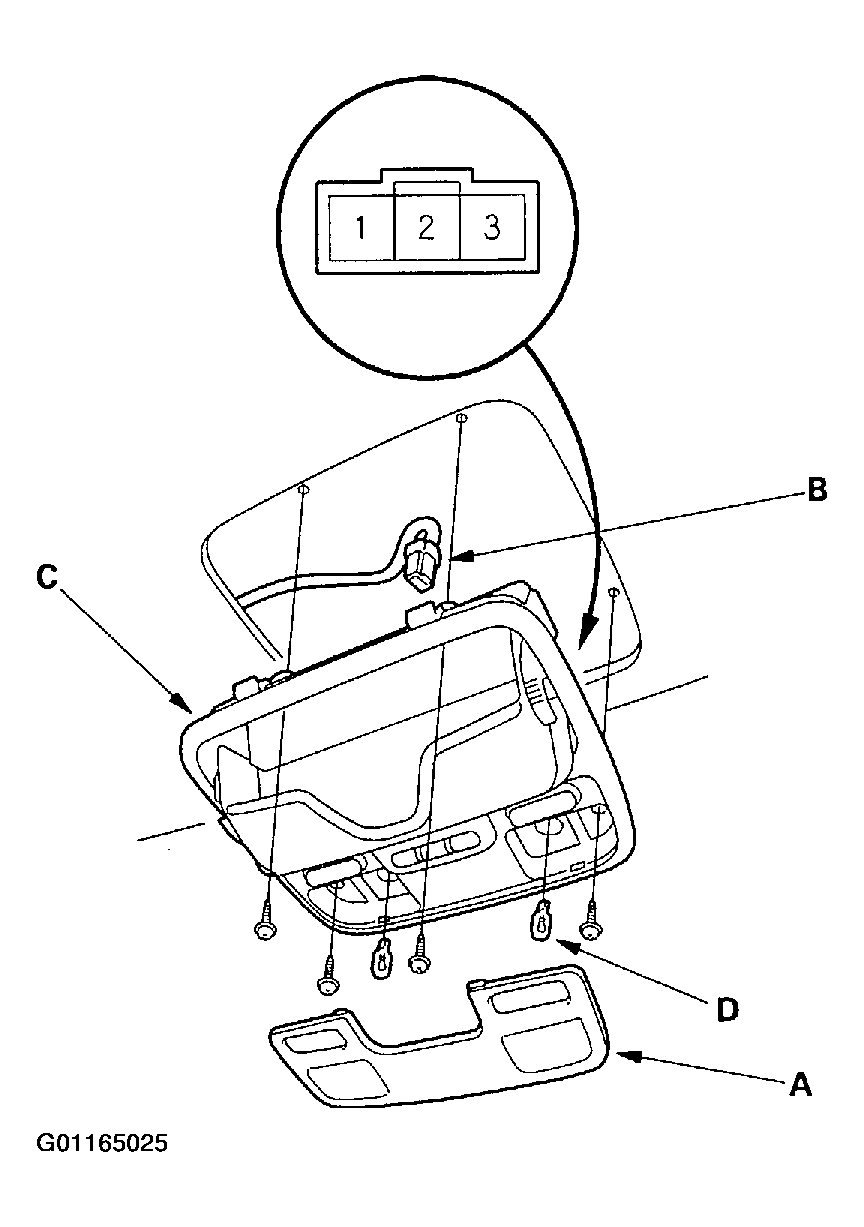

    Fig 1: Prying Off The Spotlight Lens
    G01165025Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the four mounting screws.
  4. Disconnect the 3P connector (B) from the housing (c).
  5. Check for continuity between the terminals in each switch position according to the chart.

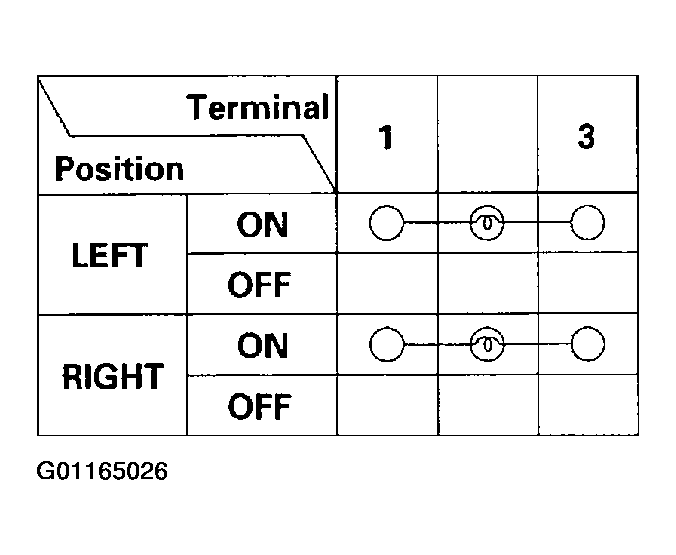

    Fig 2: Spotlight Switch Continuity Test Chart
    G01165026Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. If the continuity is not as specified, check the bulbs (D).

    If the bulbs are OK, replace the light.
