Courtesy Light Replacement

WARNING: This page is about a different car, the 2003 Acura 3.2CL, 2002 Acura 3.2CL, and 2001 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully pry off the lens (A) with a small screwdriver.

    COURTESY LIGHT:  2CP

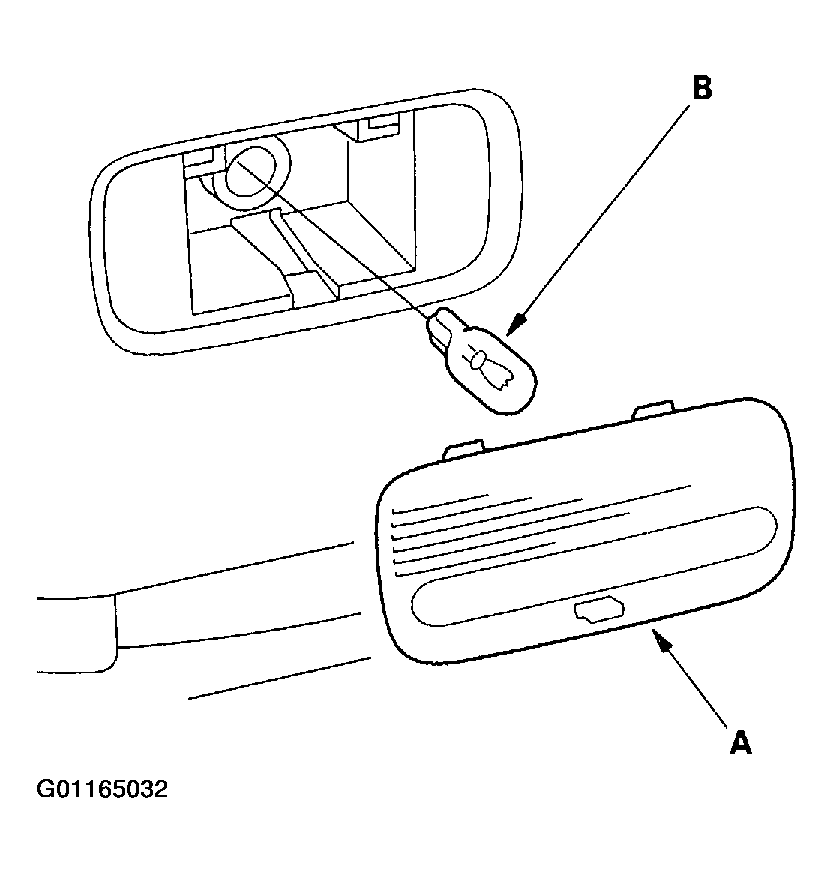

    Fig 1: Prying Off The Courtesy Light Lens
    G01165032Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the bulb (B) from the socket.
