Ceiling Light Test

WARNING: This page is about a different car, the 2003 Acura 3.2CL, 2002 Acura 3.2CL, and 2001 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the light switch OFF.
  2. Carefully pry off the lens (A) with a small screwdriver.

    CEILING LIGHT:  7W

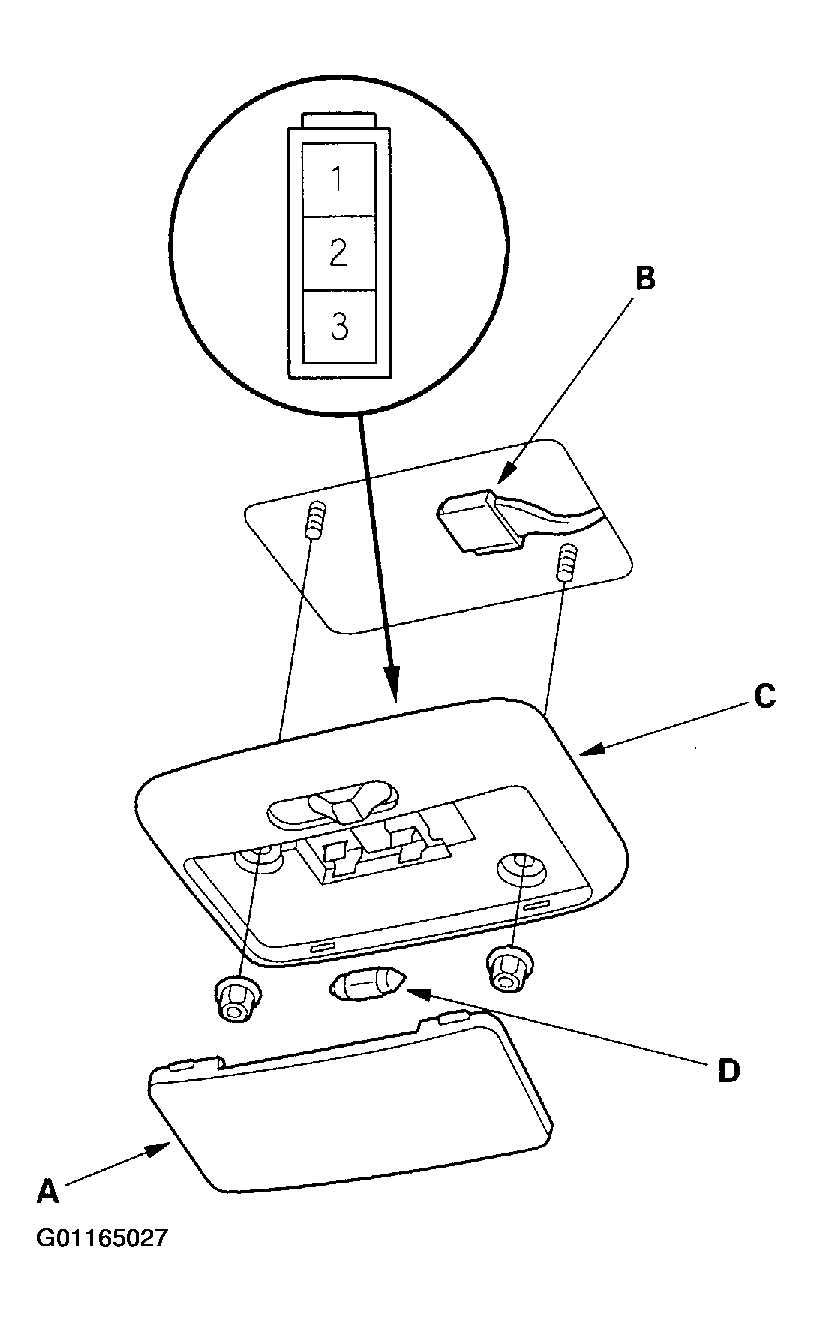

    Fig 1: Prying Off The Ceiling Light Lens
    G01165027Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the two mounting nuts.
  4. Disconnect the 3P connector (B) from the housing (C).
  5. Check for continuity between the terminals in each switch position according to the table.

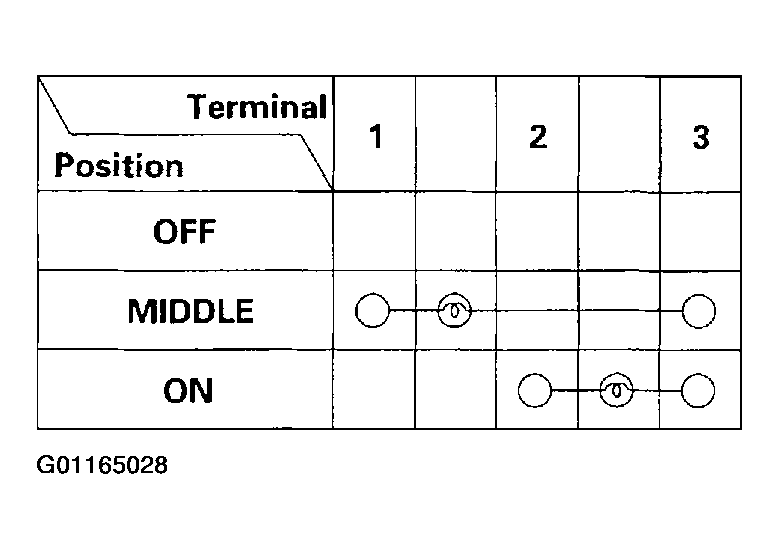

    Fig 2: Ceiling Light Switch Continuity Test Chart
    G01165028Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. If the continuity is not as specified, check the bulbs (D).

    If the bulbs are OK, replace the light.
