Front Undercover Replacement

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body.

Remove the bolts (A), and clips (B), then remove the front undercover (C) from the splash shield (D), front suspension subframe (E), and front subframe stiffener (F).

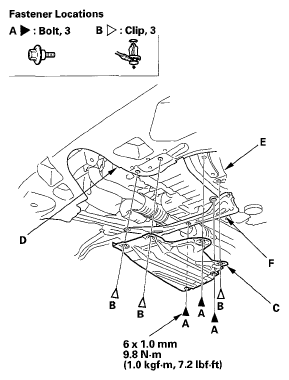

Fig 1: Front Undercover Bolts And Clips With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the undercover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
