Initiator Replacement: Rear

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to LOCK (0).
  2. Raise the rear of the vehicle, and support it with safety stands in the proper locations (see LIFT AND SUPPORT POINTS ).
  3. Remove the rear wheel.
  4. Remove the rear fender cover (see REAR FENDER COVER REPLACEMENT ).
  5. Disconnect the initiator connector (A).

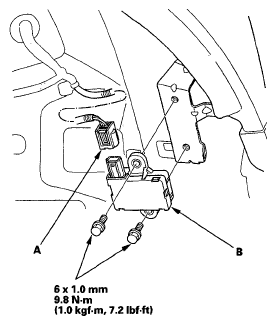

    Fig 1: Initiator Connector And Initiator With Torque Specification
    G05486768Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the initiator (B) from the inner side of the wheelwell.
  7. Install the initiator in the reverse order of removal.
