Front Bank (Bank 2)

  1. Disconnect the front secondary H02S 4P connector (A), then remove the front secondary H02S (B).

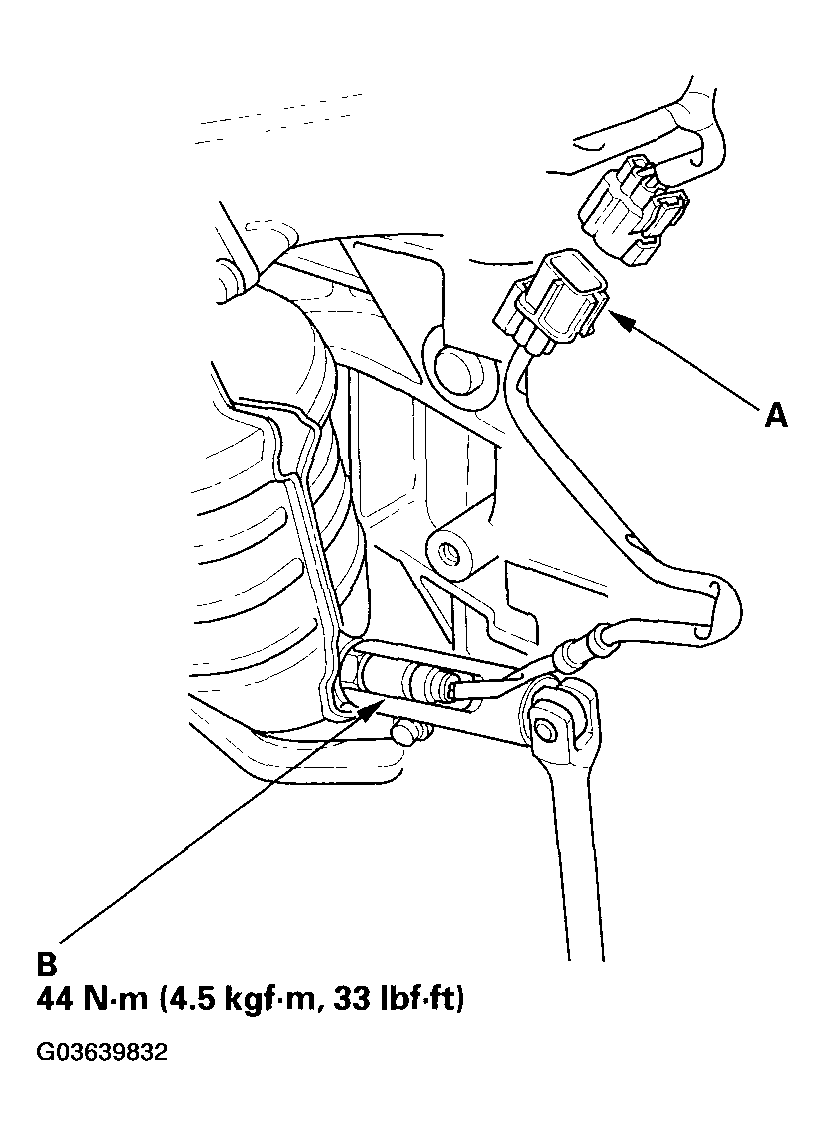

    Fig 1: Disconnecting Front Secondary H02S 4P Connector
    G03639832Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the front secondary H02S in the reverse order of removal.
