Rocker Arm Assembly Removal

  1. Remove the cylinder head cover (see CYLINDER HEAD COVER REMOVAL  ).

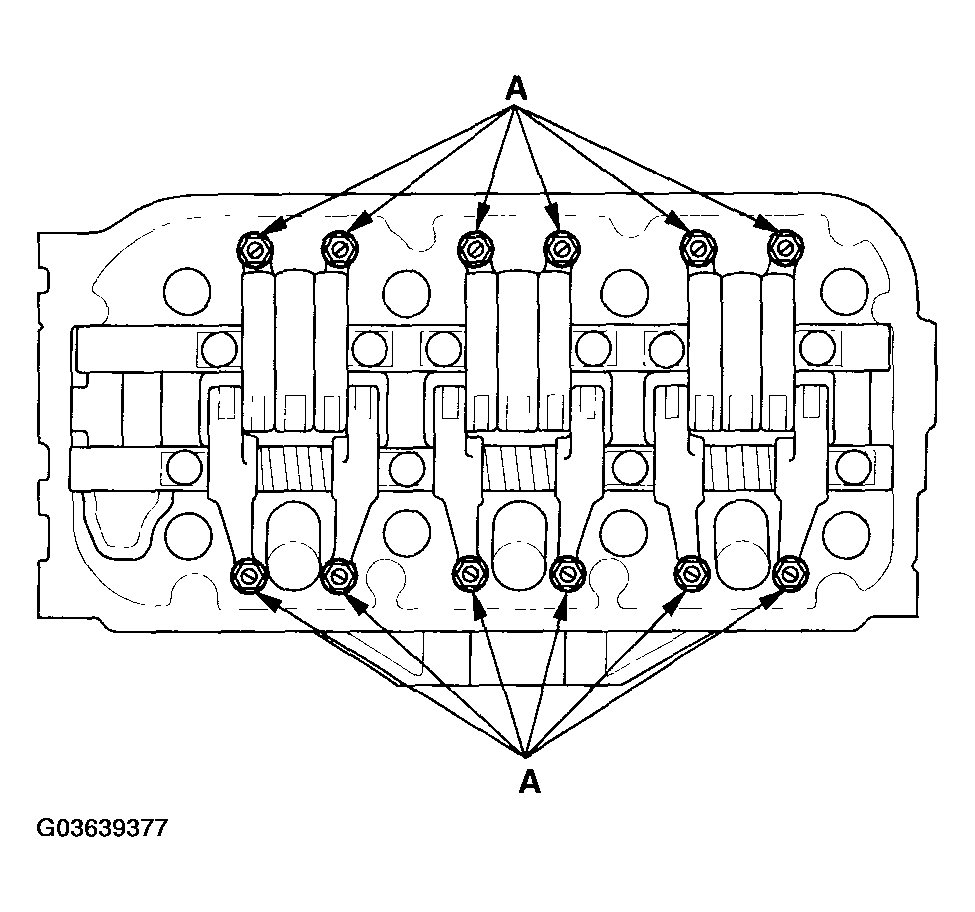

  2. Loosen the adjusting screws (A).
    Fig 1: Loosening Adjusting Screws
    G03639377Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts and the rocker arm assembly.
    • -1 Unscrew the rocker shaft mounting bolts at two turns at a time, to prevent damaging the valves or rocker arm assembly.
    • -2 When removing the rocker arm assembly, do not remove the rocker shaft mounting bolts. The bolts will keep the springs and the rocker arms on the shafts.

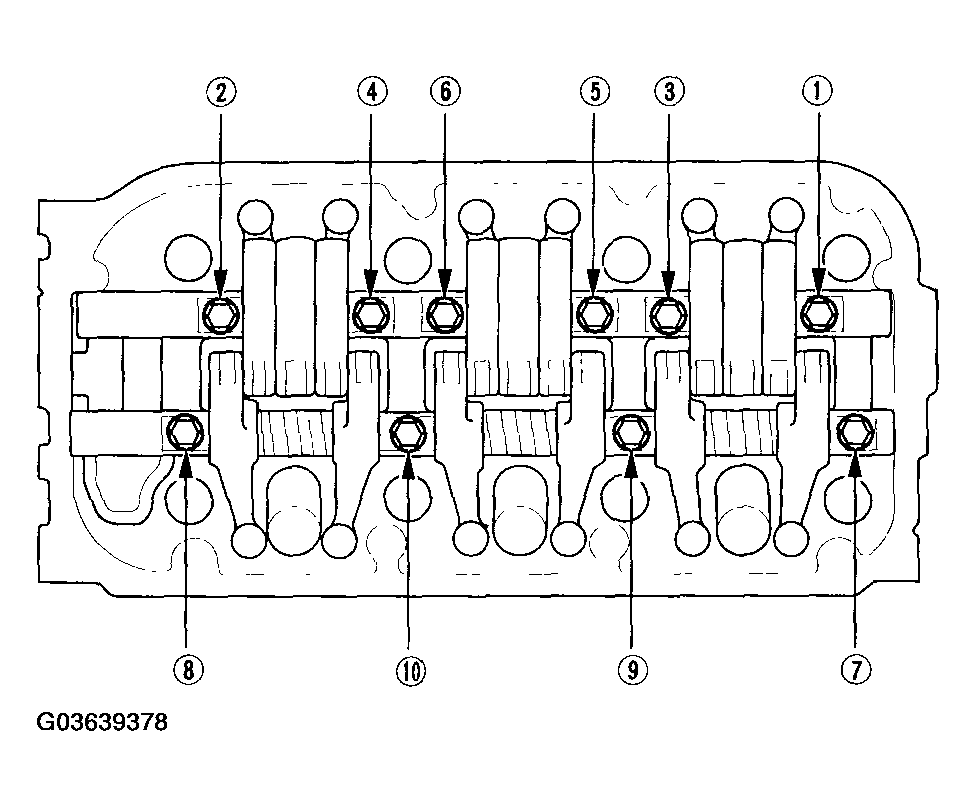

      Fig 2: Removing Rocker Arm Assembly In Sequence
      G03639378Courtesy of AMERICAN HONDA MOTOR CO., INC.
