Component Location Index

Fig 1: Identifying Cylinder Head Components (1 Of 3)
G03639280Courtesy of AMERICAN HONDA MOTOR CO., INC.

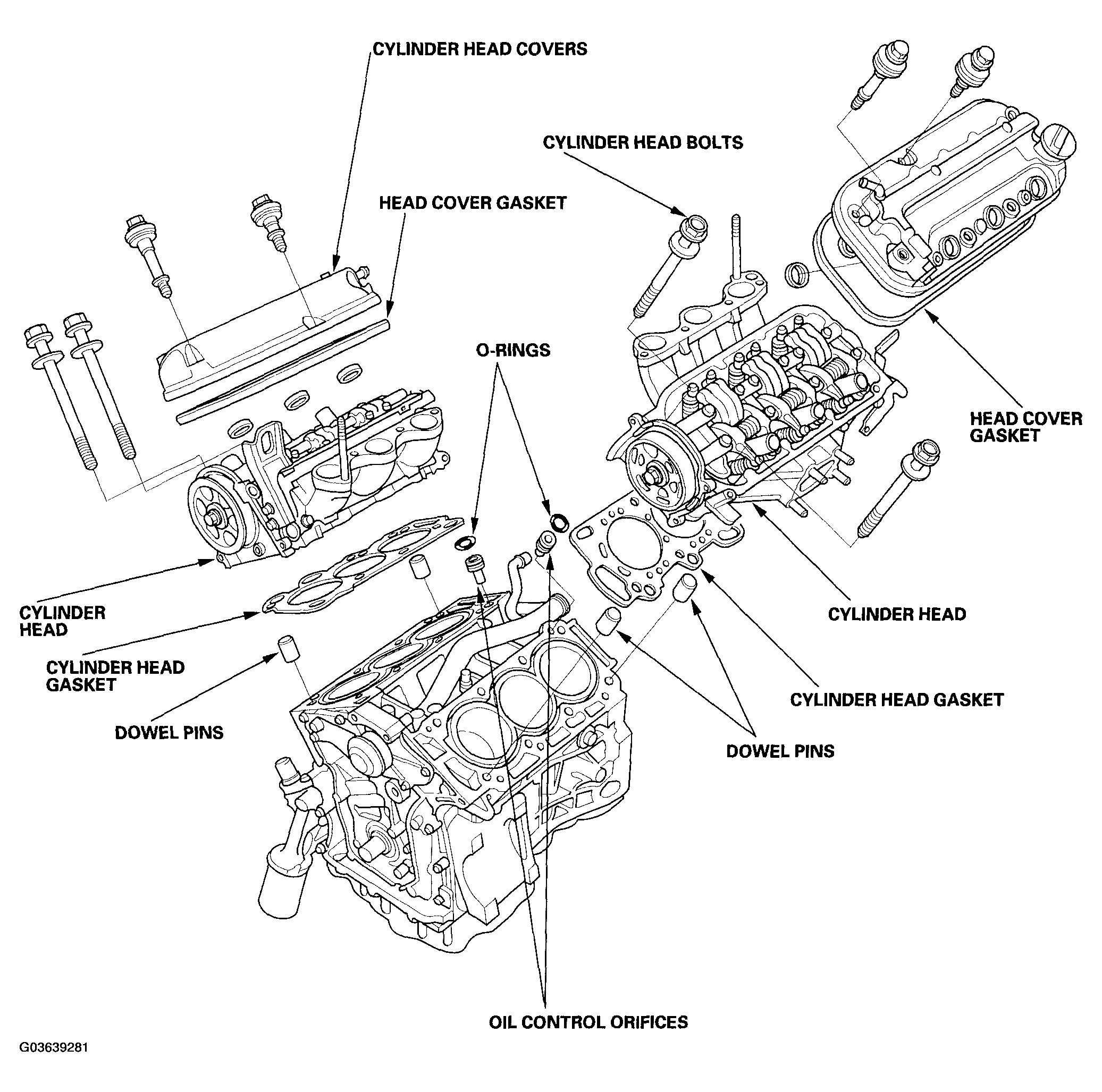

Fig 2: Identifying Cylinder Head Components (2 Of 3)
G03639281Courtesy of AMERICAN HONDA MOTOR CO., INC.

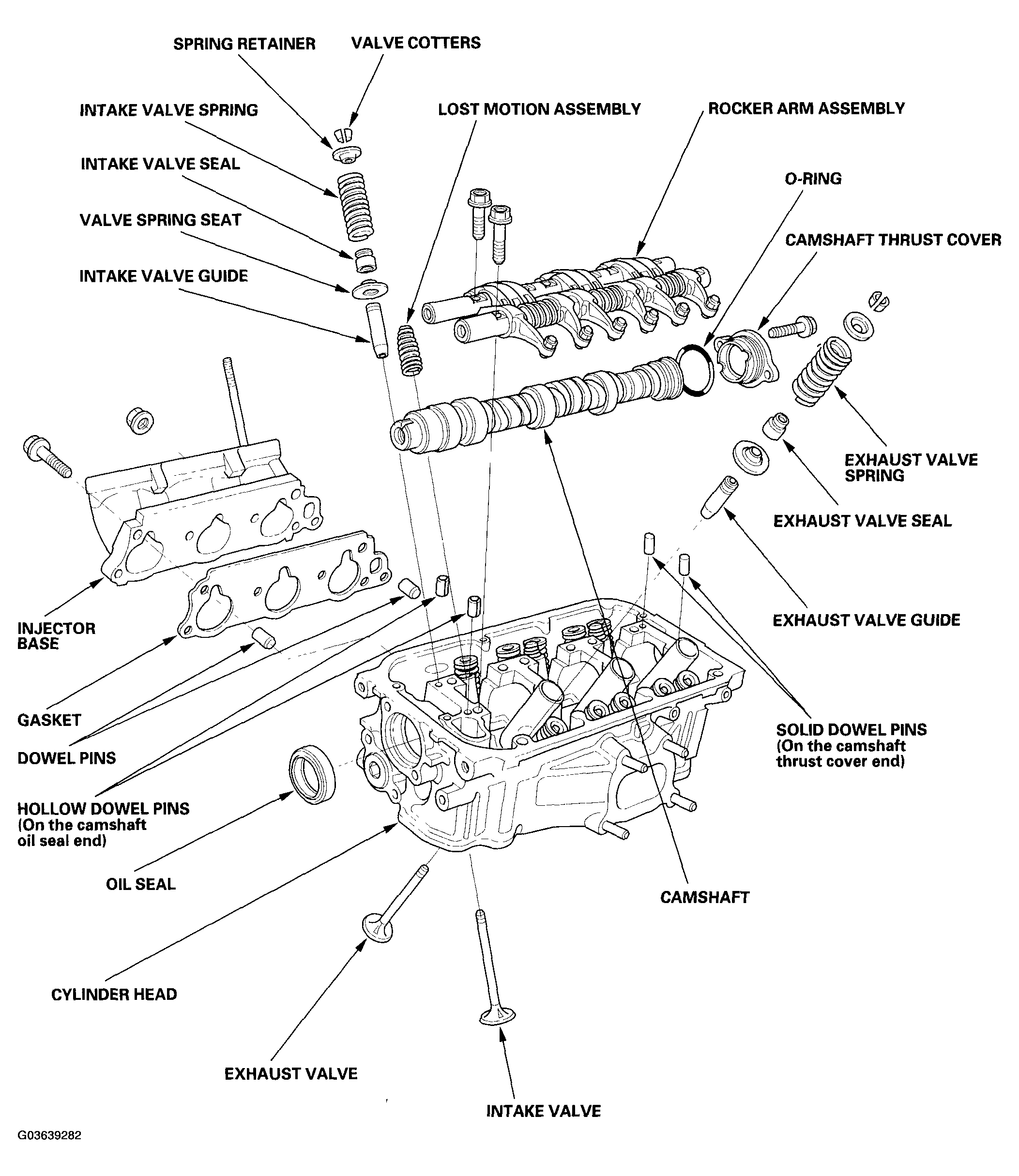

Fig 3: Identifying Cylinder Head Components (3 Of 3)
G03639282Courtesy of AMERICAN HONDA MOTOR CO., INC.
