Oil Filter Feed Pipe Replacement

  1. Remove the filter (see ENGINE OIL FILTER REPLACEMENT  ).
  2. Remove the oil filter feed pipe.

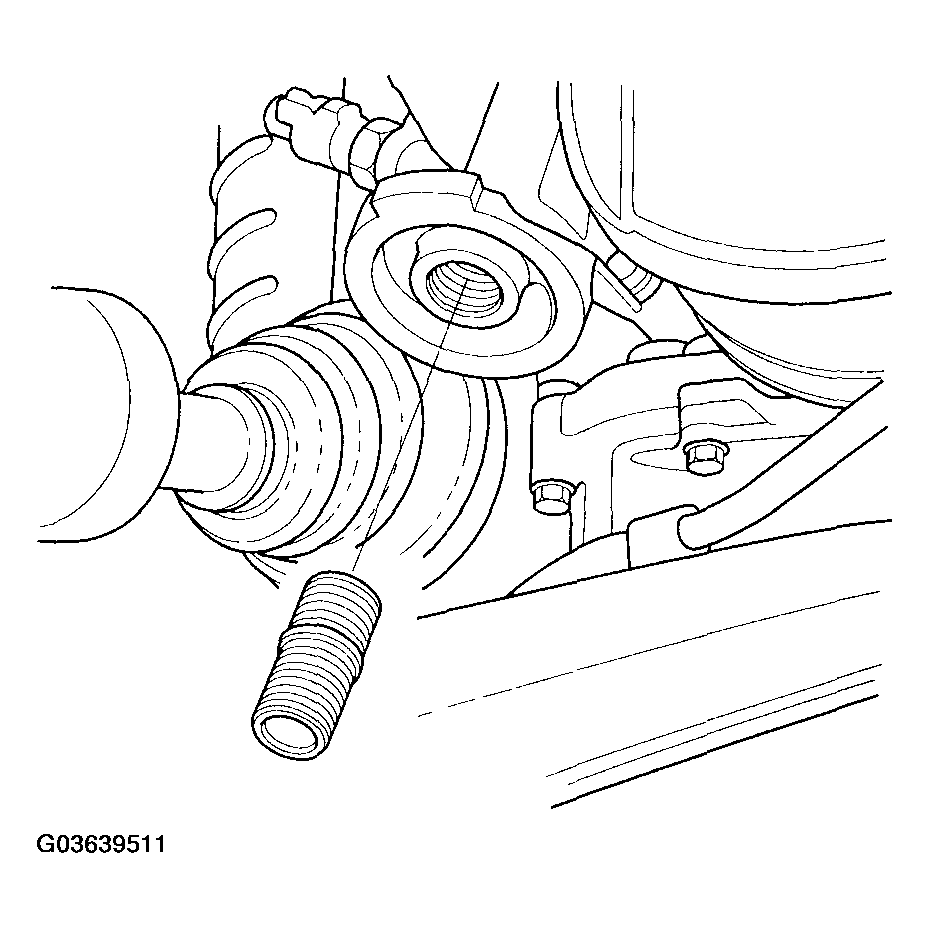

    Fig 1: Removing Oil Filter Feed Pipe
    G03639511Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install two 20 x 1.5 mm nuts (A) onto the new oil filter feed pipe, and hold one nut with a wrench, then tighten the other nut.
    Fig 2: Installing Nuts Onto Oil Filter Feed Pipe
    G03639512Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Tighten the oil filter feed pipe to 49 N.m (5.0 kgf.m, 36 lbf.ft), then remove the nuts from the oil filter feed pipe.
