Engine Oil Replacement

  1. Warm up the engine.
  2. Remove the drain bolt (A), and drain the engine oil.

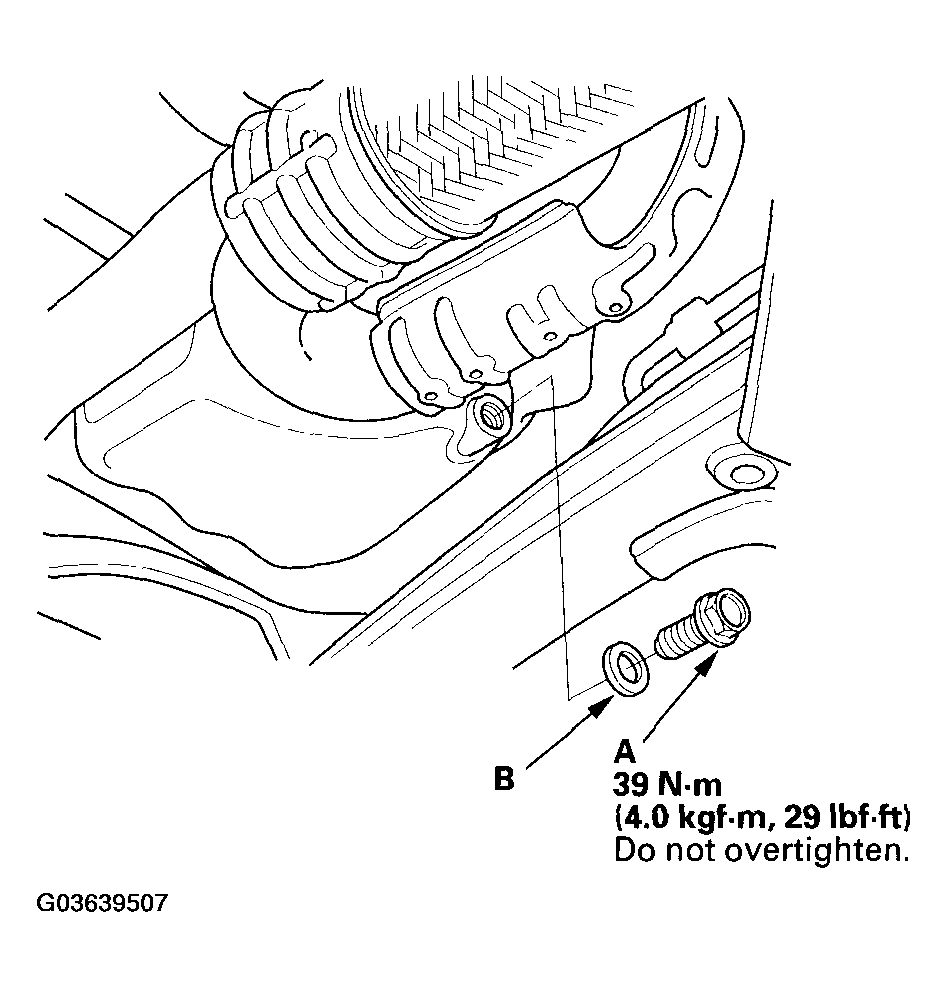

    Fig 1: Removing Drain Bolt
    G03639507Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Reinstall the drain bolt with a new washer (B).
  4. Refill with the recommended oil (see LUBRICANTS & FLUIDS ).

    Capacity

    • At Oil Change: 4.0 L (4.2 US qt)
    • At Oil Change including Filter: 4.3 L (4.5 US qt)
    • After Engine Overhaul: 5.0 L (5.3 US qt)
  5. Run the engine for more than 3 minutes, then check for oil leakage.
