Drive Belt Auto-tensioner Replacement

  1. Remove the drive belt (see DRIVE BELT REPLACEMENT  ).
  2. Remove the splash shield (see step 25 in ENGINE REMOVAL ).
  3. Remove the auto-tensioner.

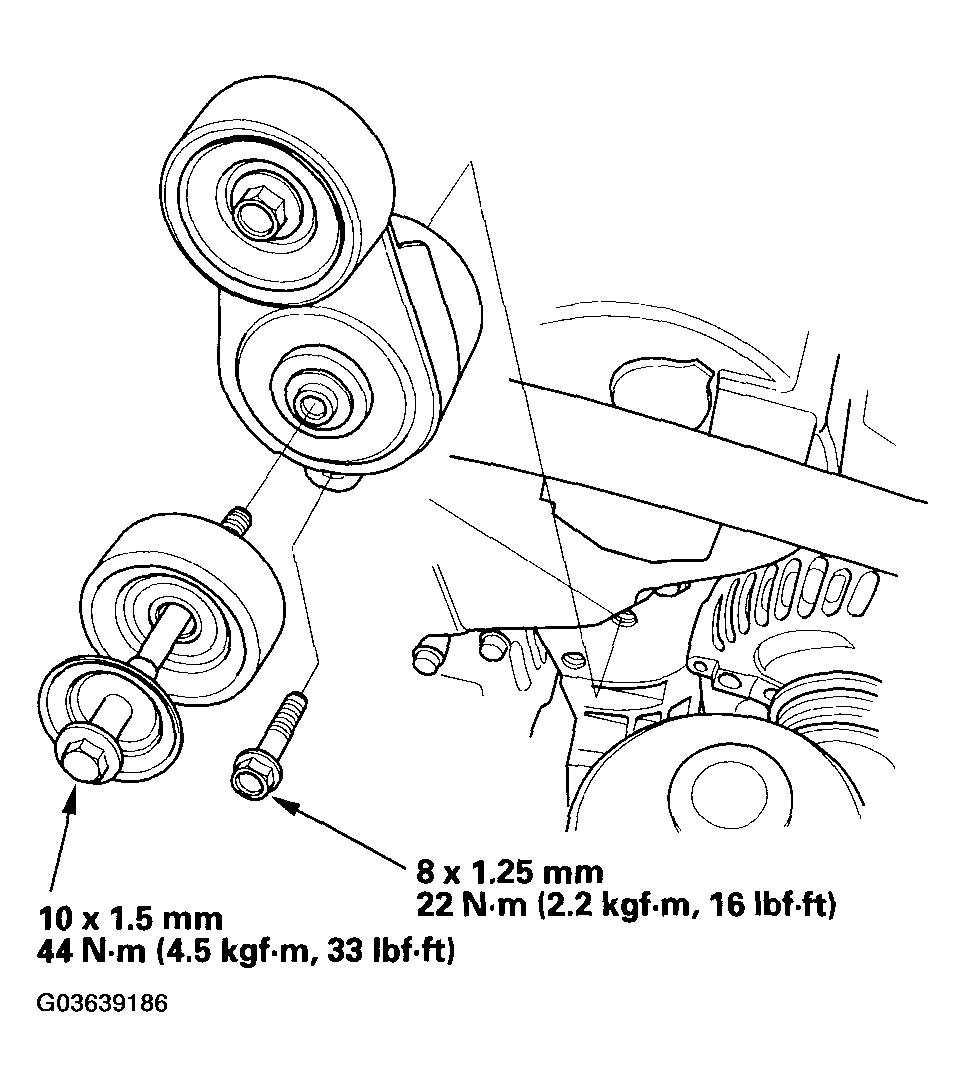

    Fig 1: Removing Auto-Tensioner
    G03639186Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the auto-tensioner in the reverse order of removal.
