Component Location Index & Drive Belt Routing

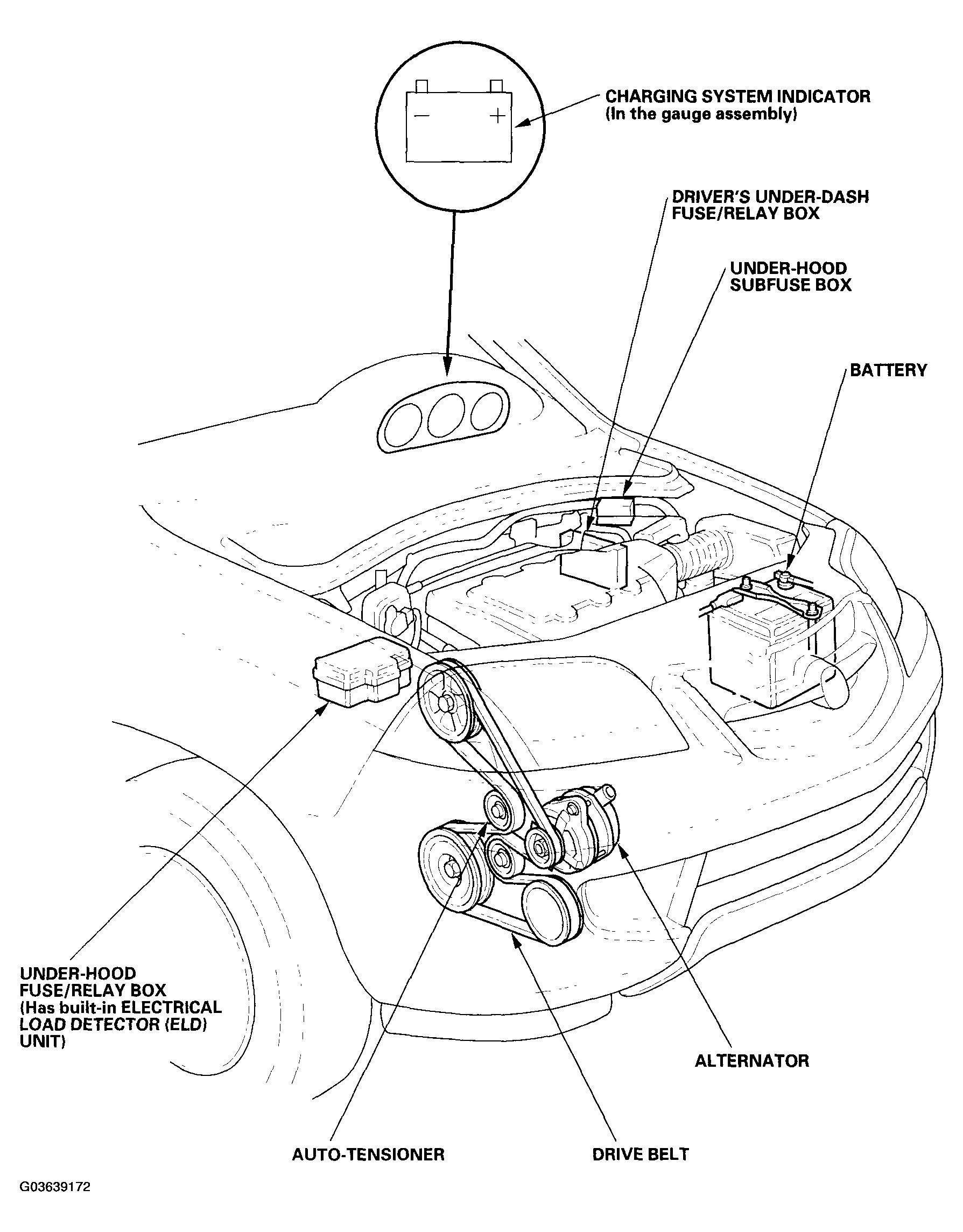

Fig 1: Identifying Charging System Components Location & Drive Belt Routing

G03639172

Courtesy of AMERICAN HONDA MOTOR CO., INC.
