Removal and Installation: Removal

Make sure you have the anti-theft codes for the radio and the navigation system, then write down the radio presets.
Disconnect the battery negative cable, then disconnect the positive cable, and wait at least 3 minutes.
Driver's fuse box: Remove the left kick panel and dashboard lower cover (see DRIVER'S DASHBOARD UNDER COVER REMOVAL/INSTALLATION ). Passenger's fuse box: Remove the right kick panel and glove box (see DASHBOARD CENTER PANEL REMOVAL/INSTALLATION ).
Remove the mounting bolt or nut, and pull the driver's under-dash fuse/relay box (A) or passenger's under-dash fuse/relay box (B) away from the body.

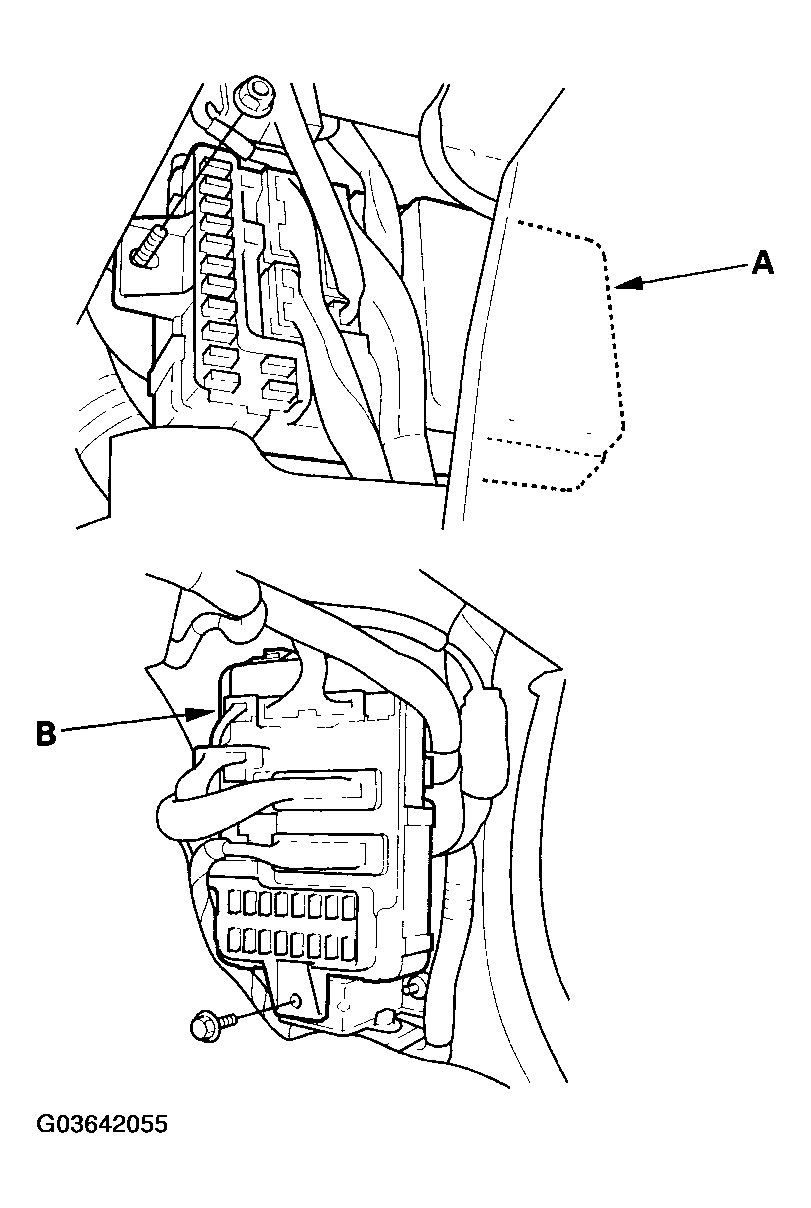

Fig 1: Pulling Driver's Or Passenger's Under-Dash Fuse/Relay Box Away From Body
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the driver's or passenger's under-dash fuse/relay box connectors, and remove the driver's or passenger's under-dash fuse/relay box.
NOTE: The SRS main harness connector is a spring-loaded lock type (see SPRING-LOADED LOCK CONNECTOR ).
