Under-hood Subfuse Box

FUSE TO COMPONENTS INDEX UNDER-HOOD SUBFUSE BOX

Fuse Number

Amps

Wire Color

Component(s) or Circuit(s) Protected

20 A

WHT/BLU⁽⁴⁾

Audio unit (with rear entertainment system), Rear controller and screen (with rear entertainment system), DVD player unit (with rear entertainment system)

WHT/RED⁽¹⁾ , ⁽²⁾

VTM-4 control unit

40 A

WHT/GRN

VSA modulator-control unit (+B FSR)

30 A

WHT

VSA modulator-control unit (+B MTR)

20 A

WHT/RED⁽⁴⁾

VTM-4 control unit

WHT/BLU⁽¹⁾ , ⁽²⁾

Audio unit (with rear entertainment system), Rear controller and screen (with rear entertainment system), DVD player unit (with rear entertainment system)

Not used

20 A

BLU/ORN

Rear accessory power socket

15 A

WHT/GRN⁽¹⁾ , ⁽²⁾ , ⁽⁵⁾

Throttle actuator control module

WHT/BLK⁽³⁾

15 A

BLU/ORN

Ignition coils

15 A

WHT/RED

A/F sensors (Bank 1, Bank 2), A/F sensor relay, Radiator fan relay, Engine mount control solenoid, EVAP canister purge valve, Secondary heated oxygen sensors (Bank 1, Bank 2), ELD unit⁽⁴⁾

7.5 A

WHT/GRN

PCM (VBU), TPMS control unit⁽³⁾ , HandsFreeLink control unit⁽³⁾

20 A

WHT/BLU⁽¹⁾ , ⁽³⁾ , ⁽⁵⁾

Power window control unit

WHT/BLK⁽²⁾

⁽¹⁾

'03 model

⁽²⁾

'04 model

⁽³⁾

'05 model

⁽⁴⁾	'04-06 models

⁽⁵⁾

'06 model

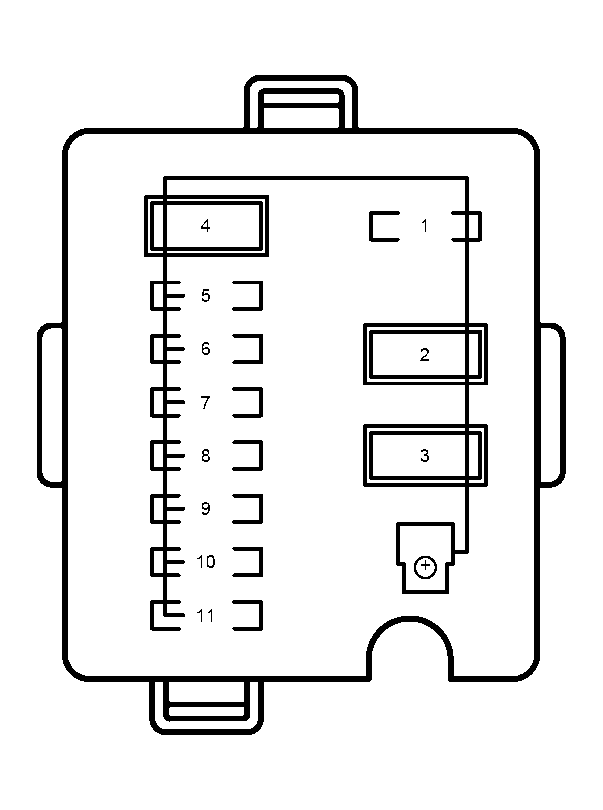

Fig 1: Identifying Under-Hood Subfuse Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.
