Headlight, Left Connector End View
Headlight, Left Connector End View

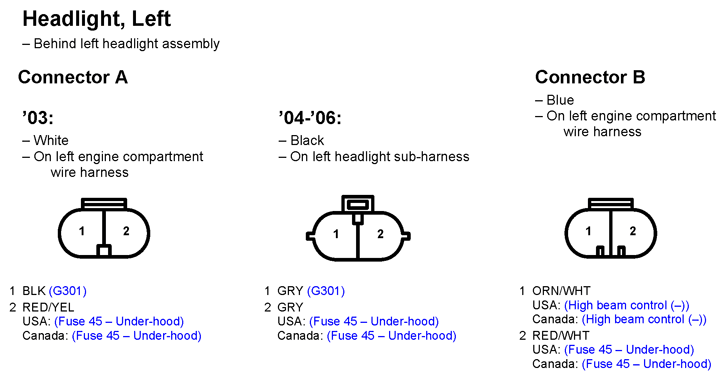

Fig 1: Headlight, Left Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
