OEM Connector End Views
>>
Connector End Views
>>
C681 Connector End View
C681 Connector End View

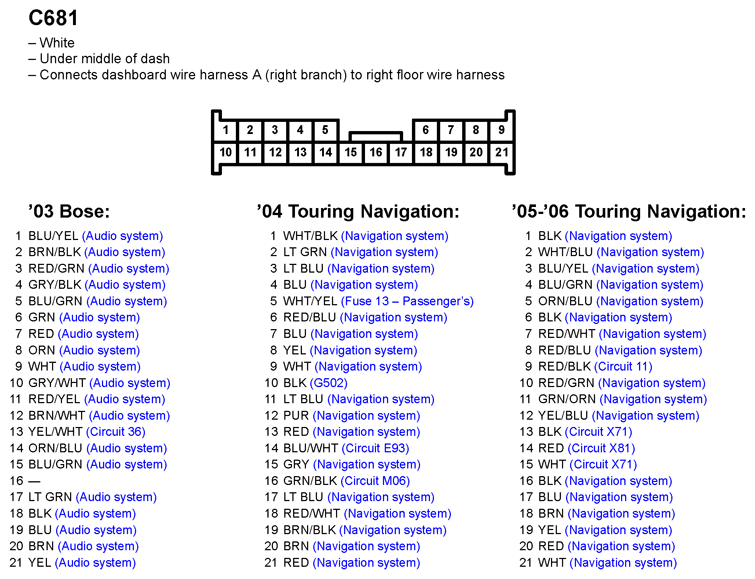

Fig 1: C681 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
