C631 Connector End View
C631 Connector End View

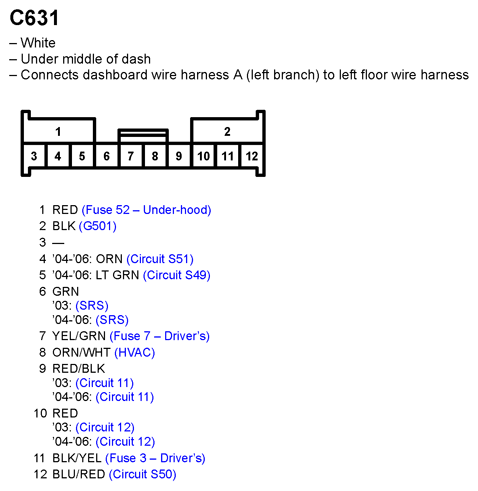

Fig 1: C631 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
