Circuit Diagram
Circuit Diagram

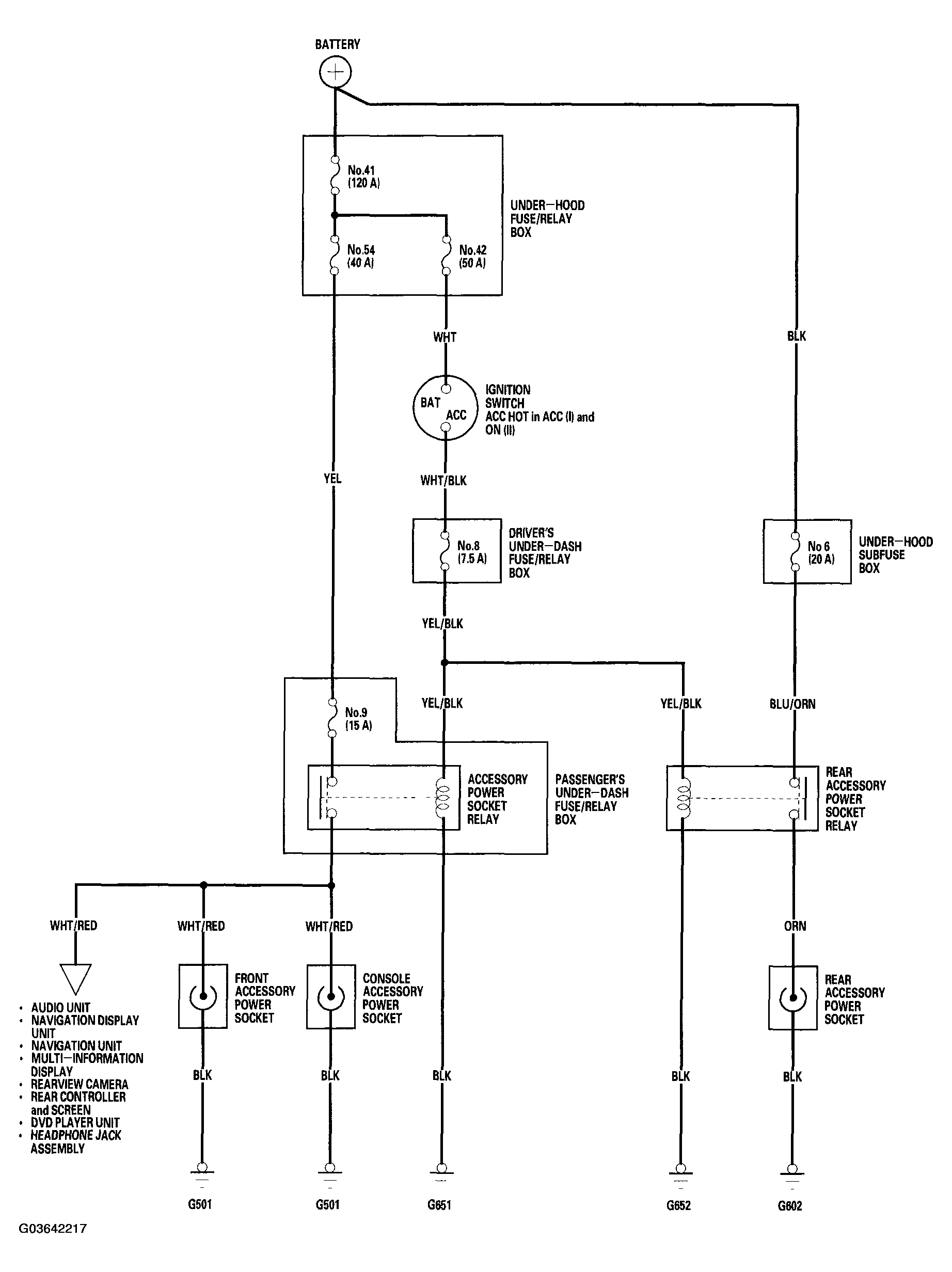

Fig 1: Circuit Diagram - Accessory Power Sockets
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
