Yaw Rate-Lateral Acceleration Sensor Replacement

NOTE:
  • Do not damage or drop the sensor as it is sensitive.
  • Do not use an impact wrench.
  1. Remove the audio unit (see AUDIO UNIT REMOVAL/INSTALLATION ).
  2. Remove the yaw rate-lateral acceleration sensor (A).

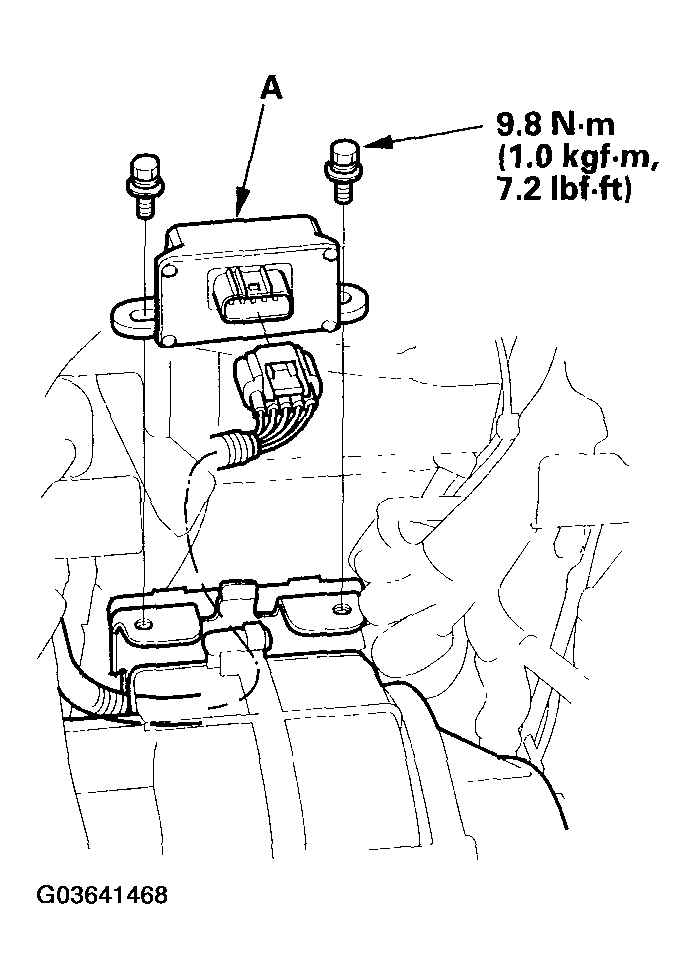

    Fig 1: Removing Yaw Rate-Lateral Acceleration Sensor
    G03641468Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install in the reverse order of removal.
