Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Seat Heaters
>>
Component Location Index
Component Location Index

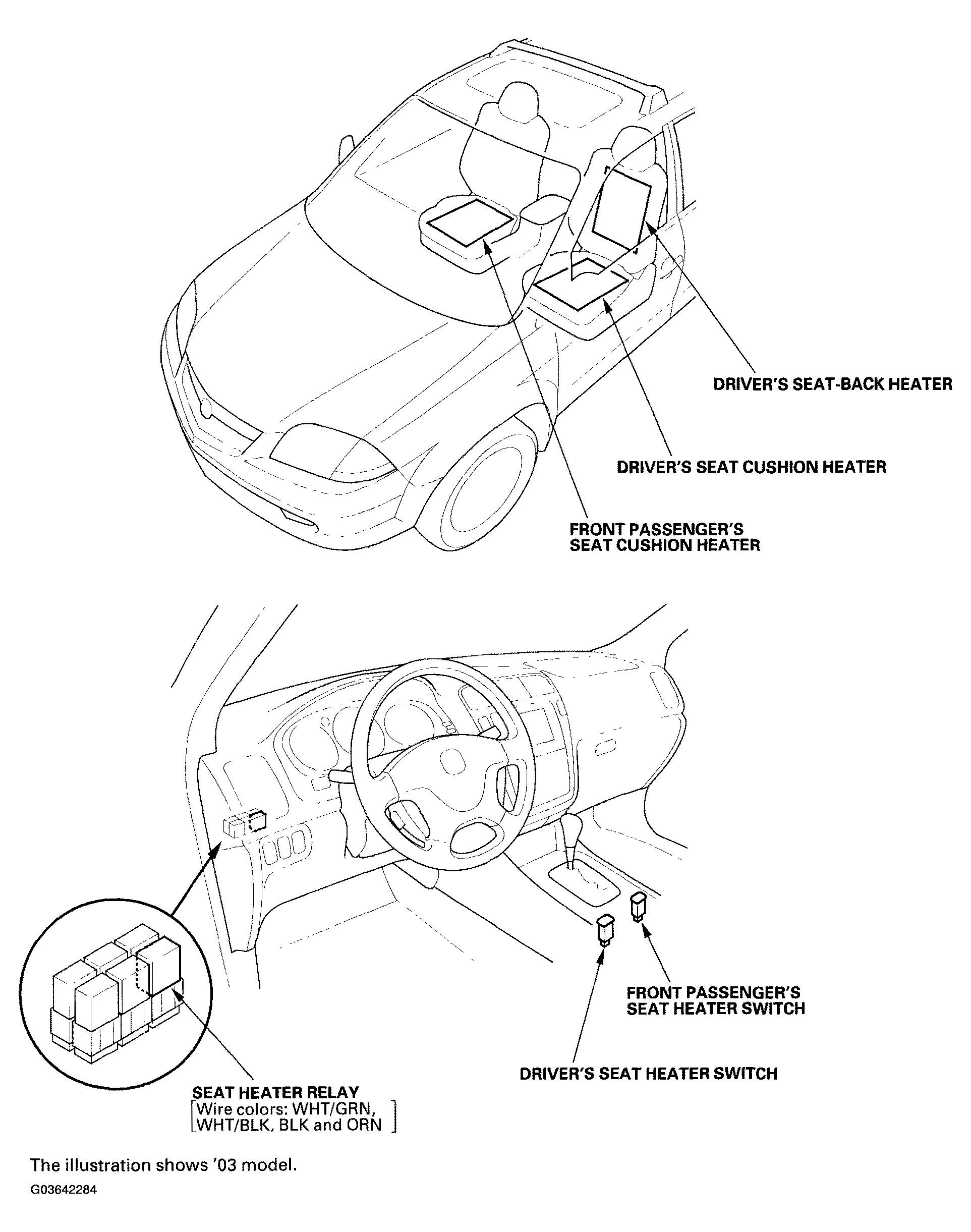

Fig 1: Identifying Seat Heaters Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
The illustration shows '03 model.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
