Instrument Panel Removal/Installation

Special Tools Required

KTC trim tool set SOJATP2014

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to scratch the dashboard and related parts.

Tilt the steering column down.
Remove the instrument panel (A).
- -1 Remove the screws (B).
- -2 Gently pull out the panel to release the clips (C, D).
- -3 Disconnect the dash lights brightness controller connector (E), select/reset switch connector (F), and VTM-4 lock switch connector (G).

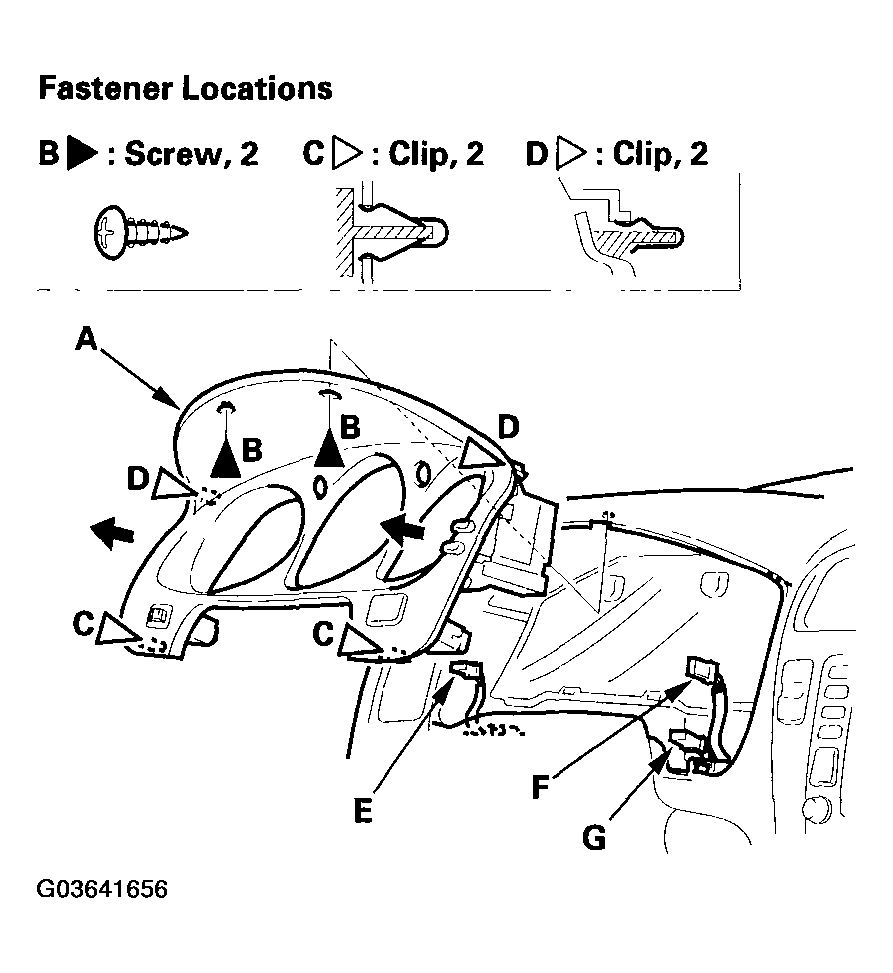

  Fig 1: Removing Instrument Panel
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the instrument panel in the reverse order of removal, and note these items:
- Make sure each connector is plugged in properly.
- Push the clips into place securely.
