Console Armrest Disassembly/Reassembly

NOTE: Apply multipurpose grease to the spring of the armrest hinge.

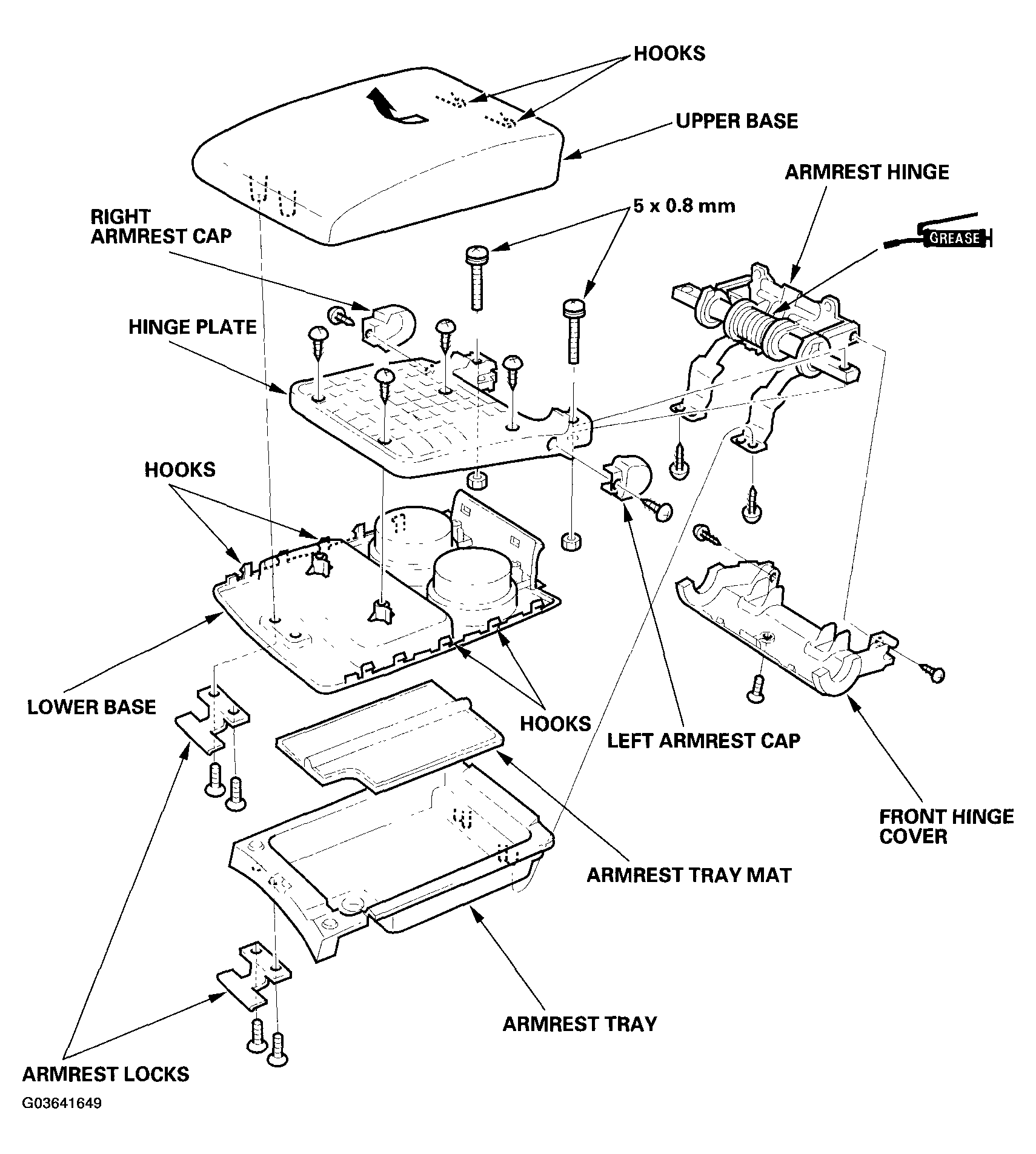

Fig 1: Disassembly/Reassembly Of Console Armrest

Courtesy of AMERICAN HONDA MOTOR CO., INC.
