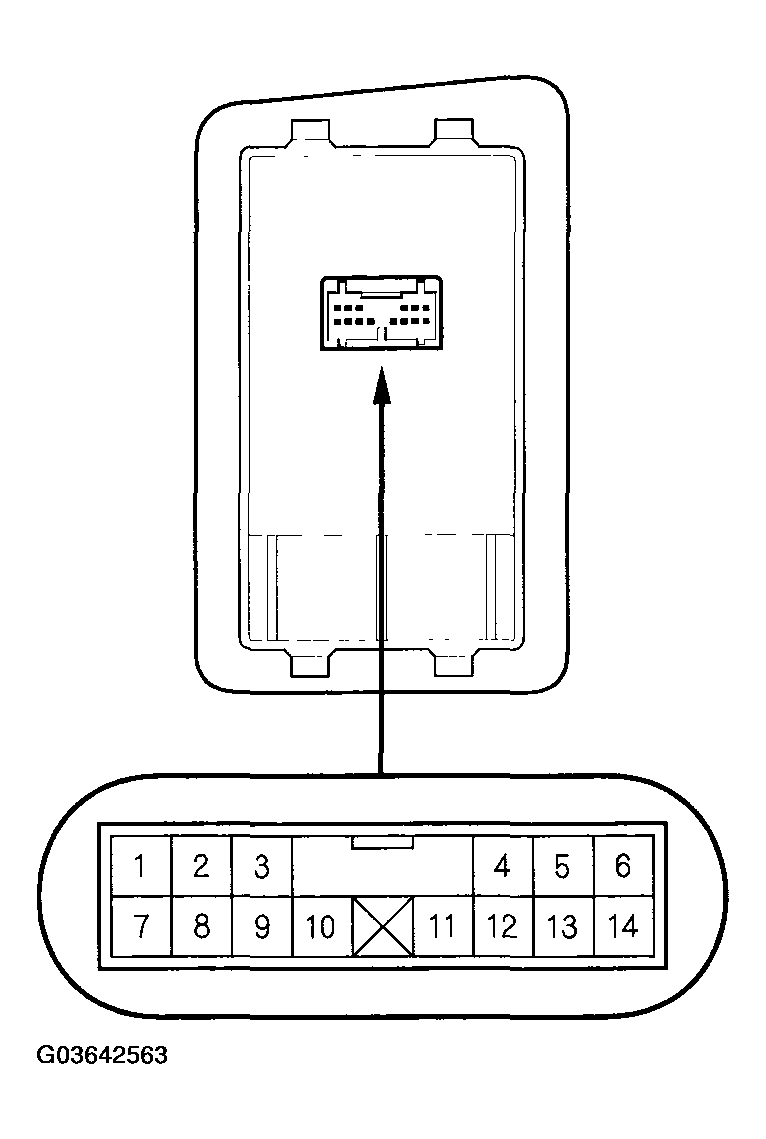

Auxiliary Jack Assembly Connector Inputs and Outputs
NOTE:
For Rear Entertainment Circuit Diagram, refer to CIRCUIT DIAGRAM - WITH BOSE SOUND SYSTEM
:
- '03-'04 models (see '03-04 MODELS WITH REAR ENTERTAINMENT SYSTEM )
- '05-'06 models (see '05-06 MODELS WITH REAR ENTERTAINMENT SYSTEM
)
When replacing an auxiliary jack assembly connector, match the wires to the cavities listed in AUXILIARY JACK ASSEMBLY CONNECTOR ('03-04 MODELS) or AUXILIARY JACK ASSEMBLY CONNECTOR ('05-06 MODELS) .
AUXILIARY JACK ASSEMBLY CONNECTOR ('03-04 MODELS)Cavity Wire Connects to 1 BLK Ground (G652) 2 WHT/RED ACC (main stereo power supply) 3 BRN Audio unit (HP SHIELD) 4 BRN/BLK DVD player unit (VIDEO 3 SHIELD) 5 BRN/WHT DVD player unit (AUDIO 3 SHIELD) 6 WHT/GRN DVD player unit (COMMUNICATION LINE CHECK) 7 BLU/GRN(1) Audio unit (HP AUDIO COMMON) WHT(2) 8 RED DVD player unit (VIDEO 3 GROUND) 9 BLU DVD player unit (VIDEO 3) 10 YEL DVD player unit (L CH3) 11 BLU DVD player unit (AUDIO 3 COMMON) 12 GRN DVD player unit (R CH3) 13 ORN(1) Audio unit (HP L CH OUT) BRN(2) 14 ORN/BLU(1) Audio unit (HP R CH OUT) GRN/BLU(2) (1) '03 Model (2) '04 Model AUXILIARY JACK ASSEMBLY CONNECTOR ('05-06 MODELS)Cavity Wire Connects to 1 BLK Ground (G652) 2 WHT/RED ACC (main stereo power supply) 3 BRN Audio unit (HP SHIELD) 4 - 5 - 6 WHT/GRN DVD player unit (CONN CHECK) 7 WHT Audio unit (HP AUDIO COM) 8 RED Audio unit (VIDEO 1 GND) 9 BLU Audio unit (VIDEO 1) 10 YEL Audio unit (VIDEO 1 L) 11 BLU Audio unit (VEDEO 1 L/R GND) 12 GRN AUDIO unit (VIDEO 1 R) 13 BRN Audio unit (HP L CH OUT) 14 GRN/BLU Audio unit (HP R CH OUT)
