Rear Controller and Screen Removal/Installation

NOTE:

Remove the display cover (A) by pulling down on the rear. There are hooks (B) on the front.

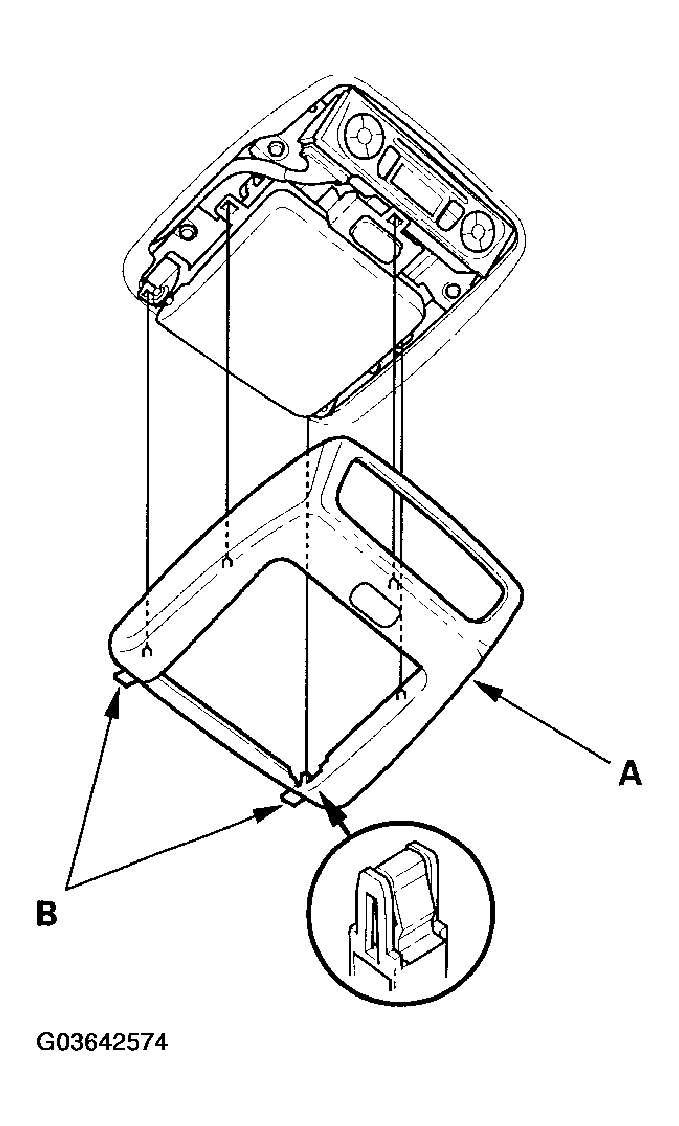

Fig 1: Removing Display Cover Pulling Down On Rear
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the mounting bolts (A).

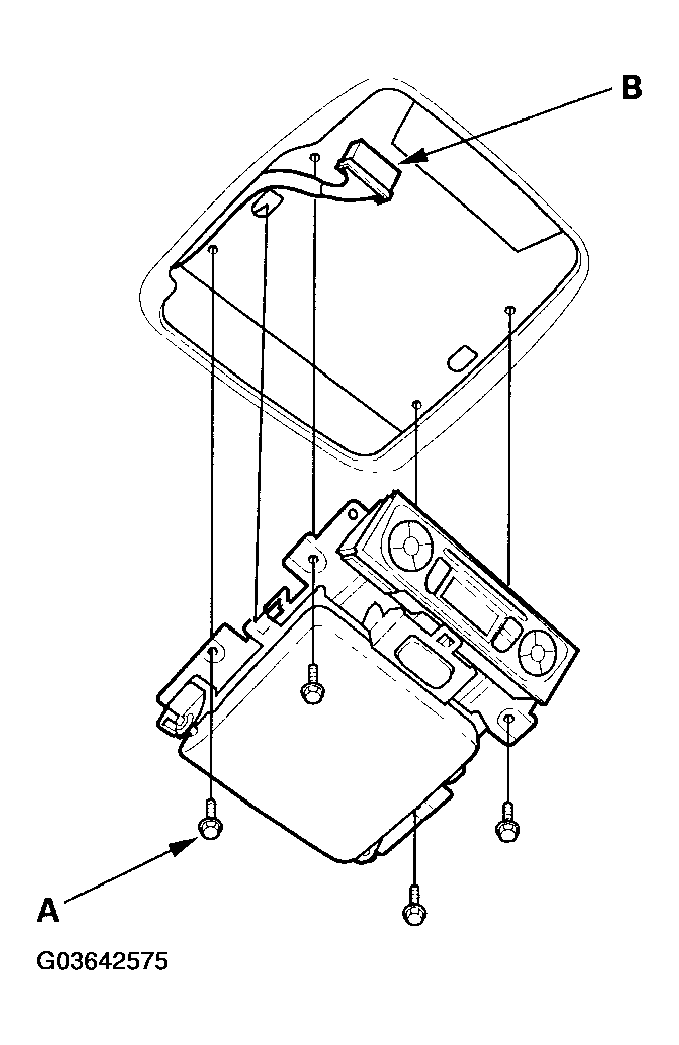

Fig 2: Removing Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connector (B) from the rear controller and screen.
Remove the screws from the controller (A).

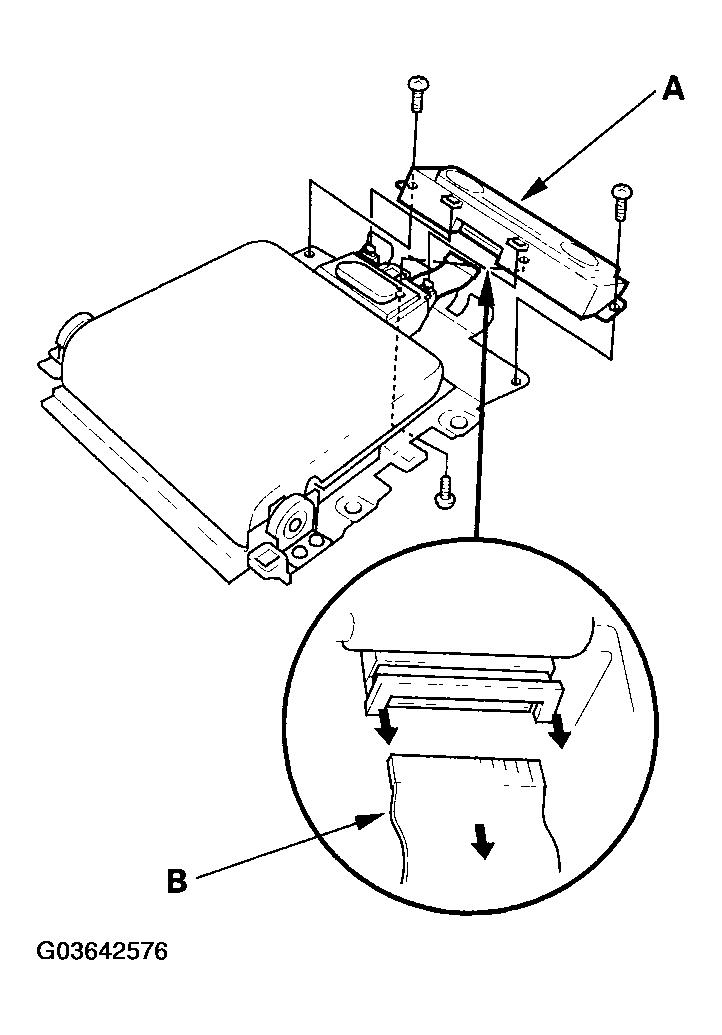

Fig 3: Removing Screws From Controller
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the cable (B) from the controller.
Remove the screws, then remove the screen (A) and base (B).

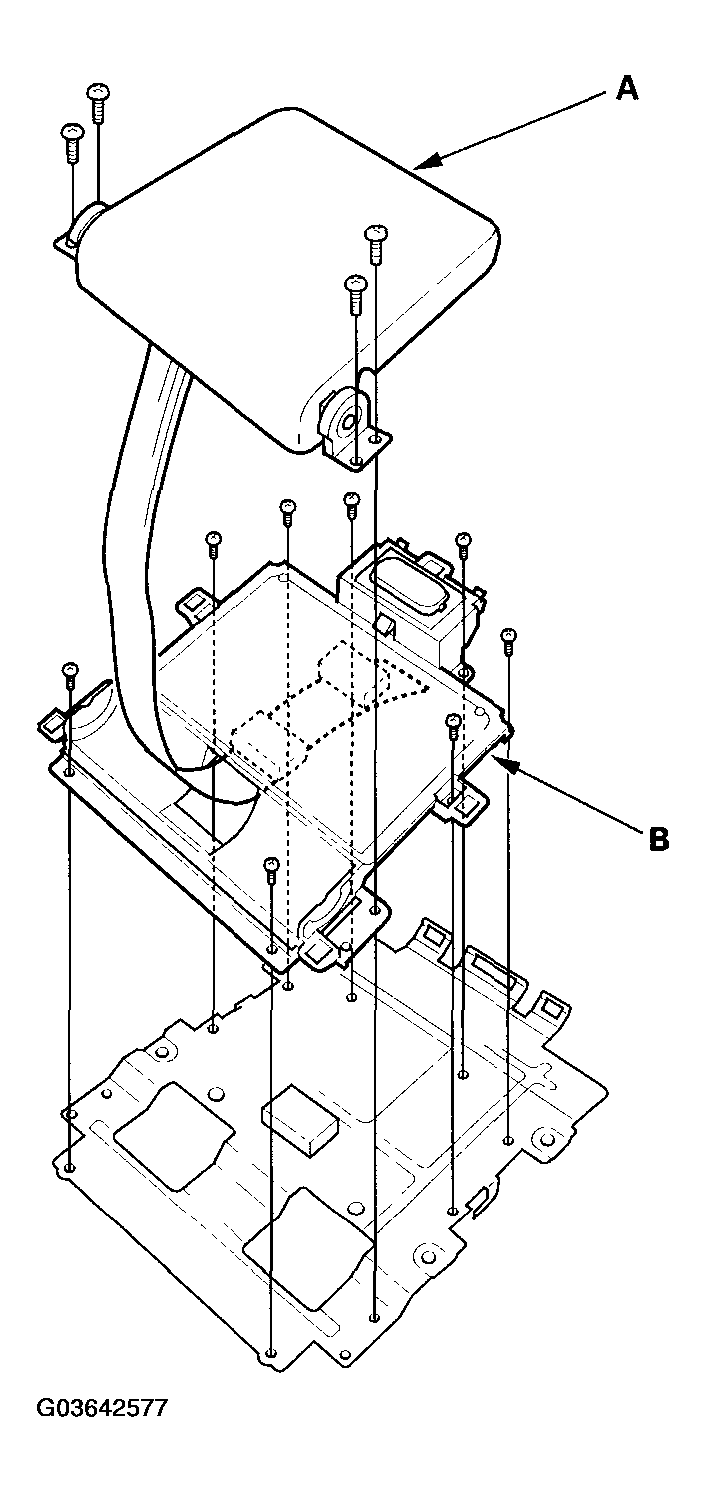

Fig 4: Removing Screen And Base
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws and lock switch (A).

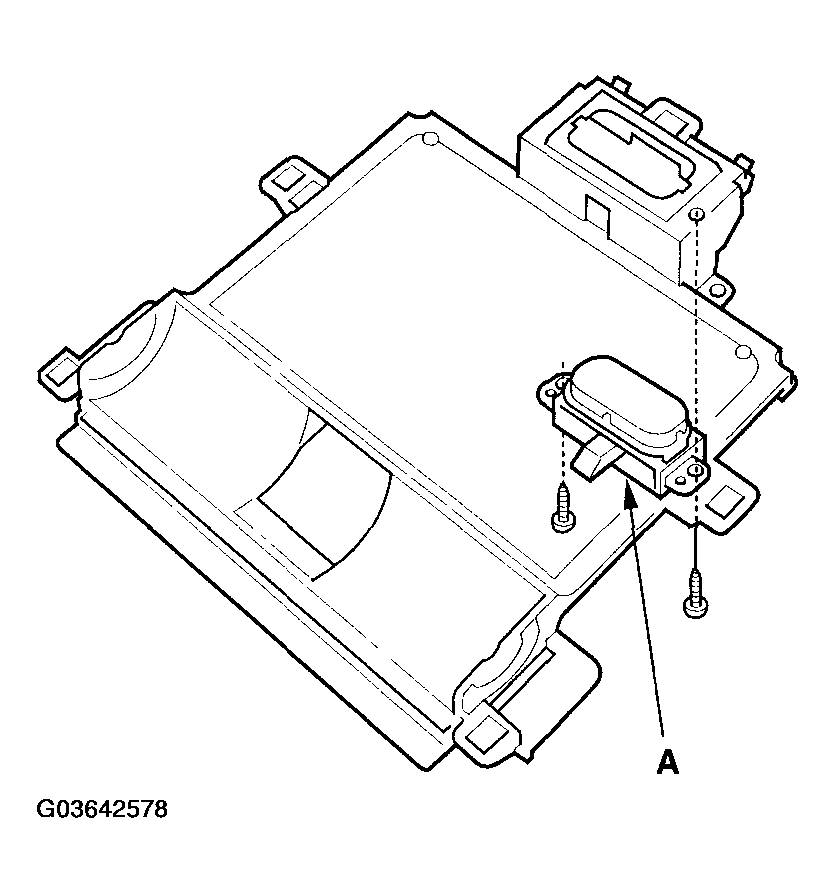

Fig 5: Removing Screws And Lock Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal, and make sure the rear controller and screen connector is plugged in properly.
