Weight Sensor Unit, Front Passenger's Connector End View

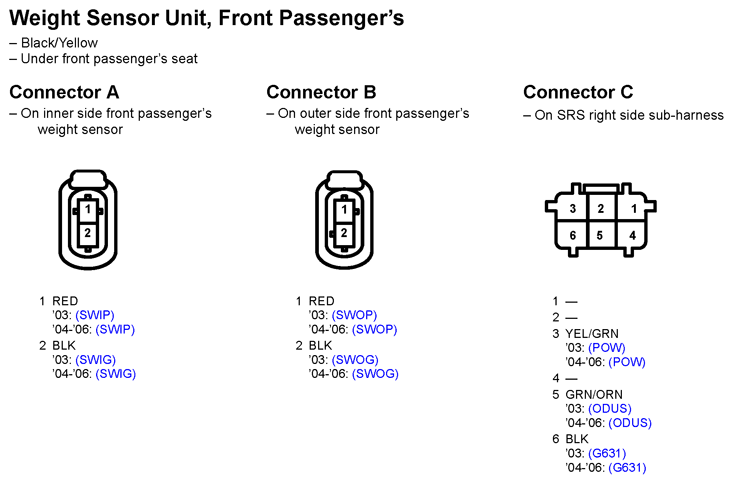

Fig 1: Weight Sensor Unit, Front Passenger's Connector End View

G11248301

Courtesy of AMERICAN HONDA MOTOR CO., INC.
