Rear Heater-A/C Control Panel-Unit Connector End View

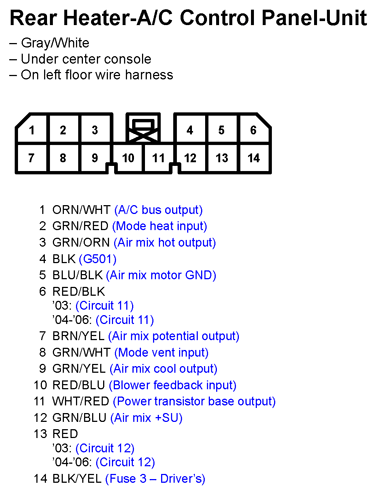

Fig 1: Rear Heater-A/C Control Panel-Unit Connector End View

G11248228

Courtesy of AMERICAN HONDA MOTOR CO., INC.
