Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
Climate Control System
>>
System Description
>>
Climate Control Unit Inputs and Outputs
Climate Control Unit Inputs and Outputs

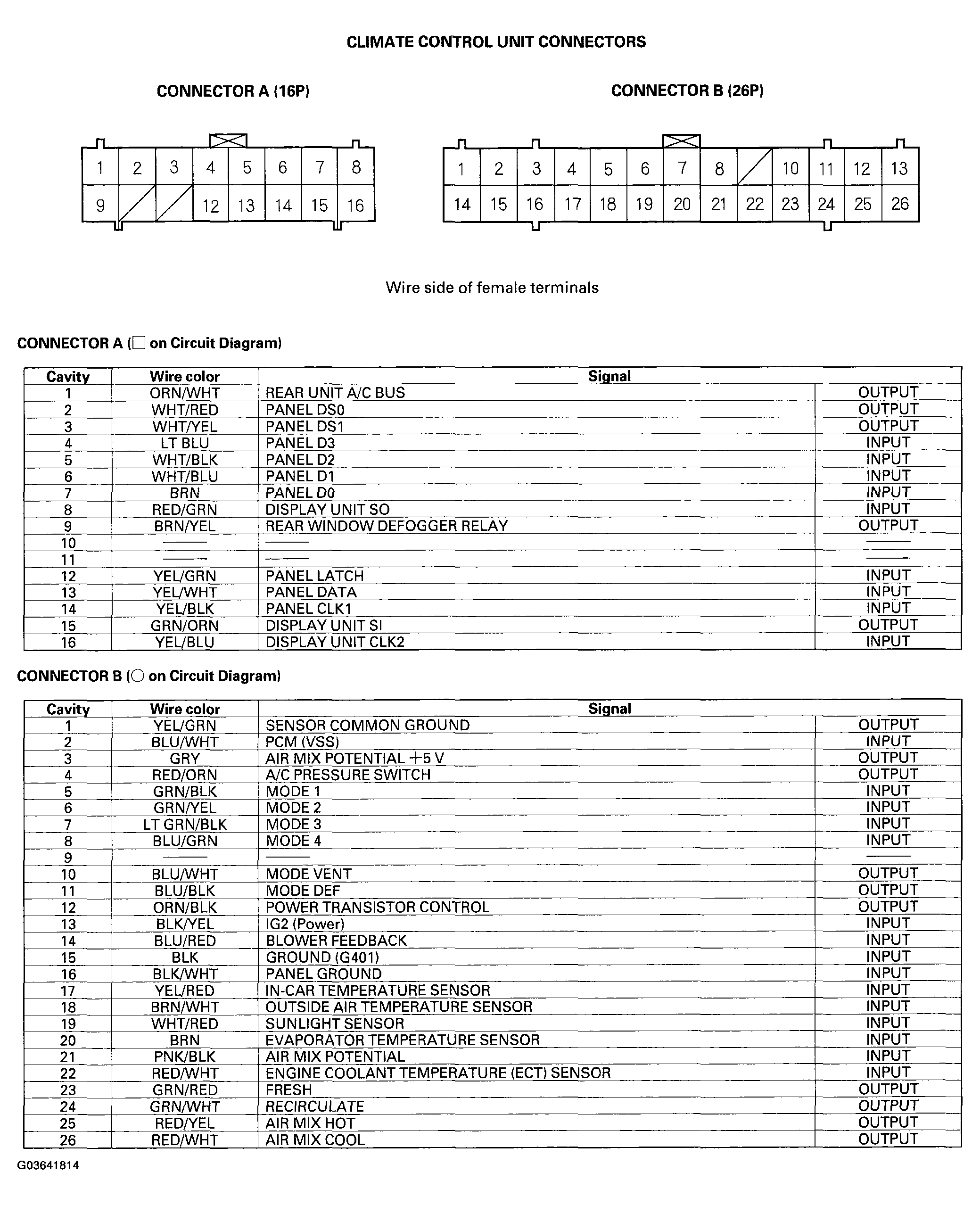

Fig 1: Identifying Climate Control Unit Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
