Display Unit Inputs and Outputs for Connector A (5P)

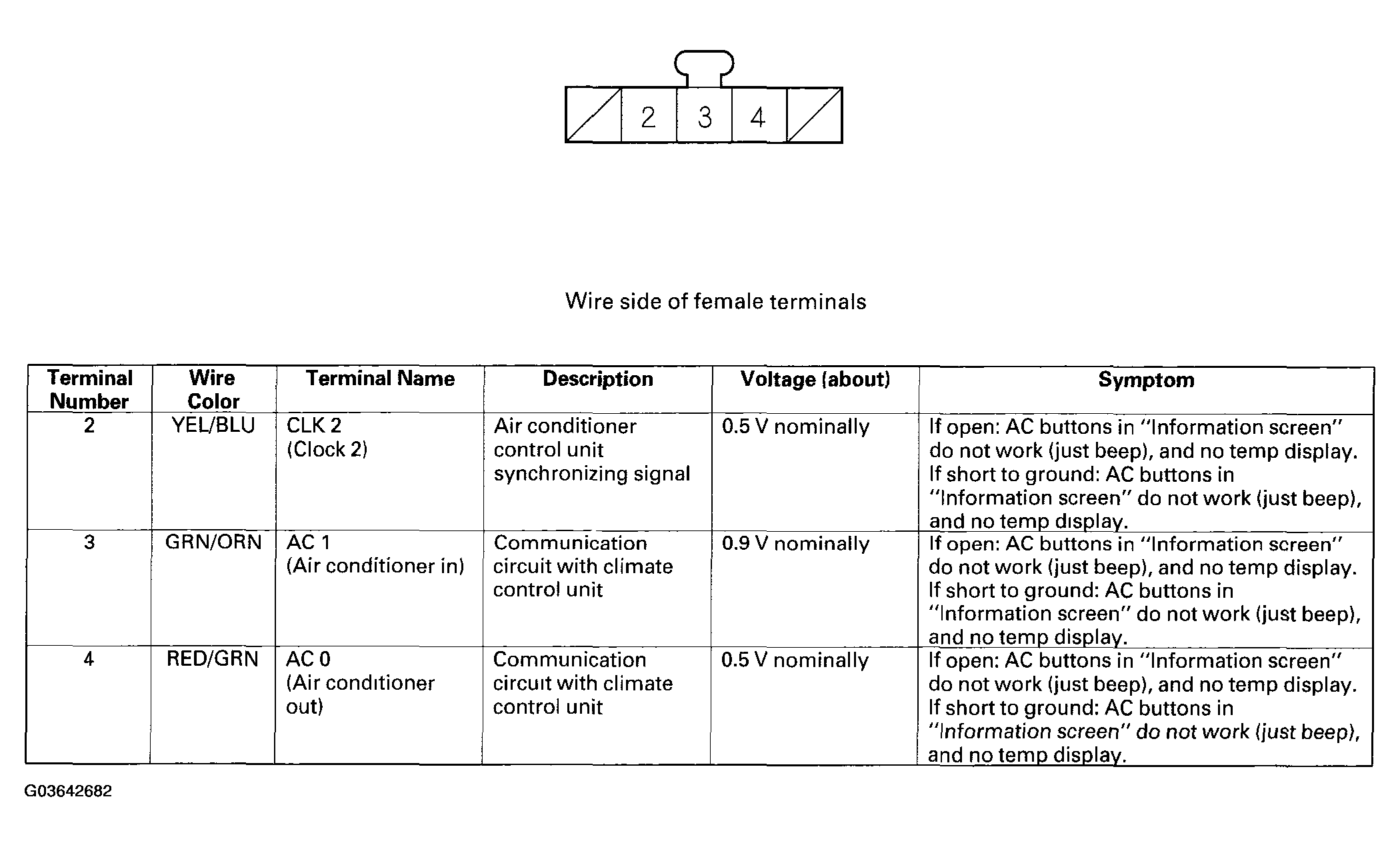

Fig 1: Identifying Wire Side Of Female Terminals (Connector G (5P))

G03642682

Courtesy of AMERICAN HONDA MOTOR CO., INC.
