Display Unit Connector Inputs and Outputs

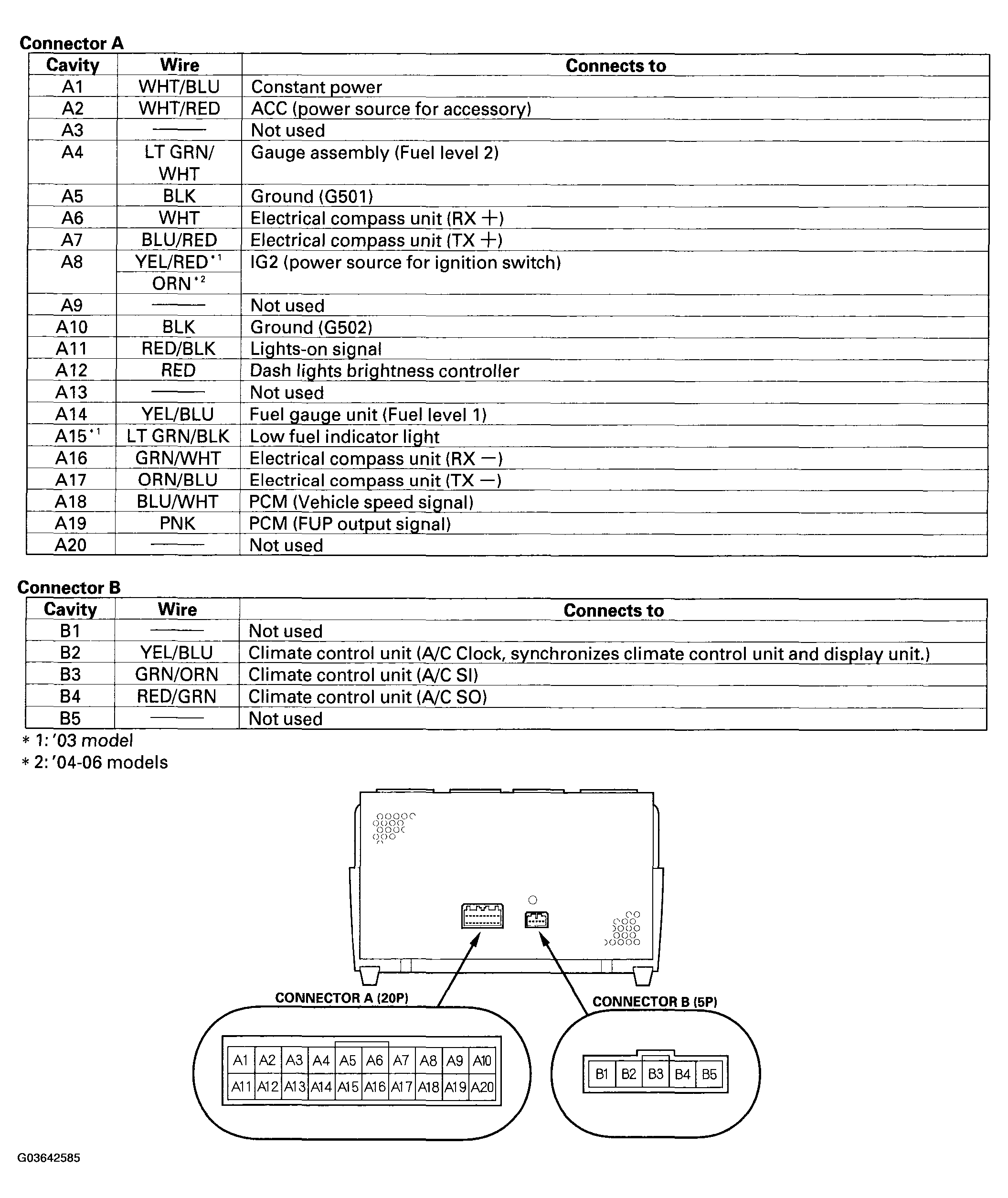

Fig 1: Identifying Display Unit Connector Inputs And Outputs

G03642585

Courtesy of AMERICAN HONDA MOTOR CO., INC.
