DTC 94: TCS Control Valve Sensor

For DTC testing flow chart, see Fig 1 and Fig 2 .

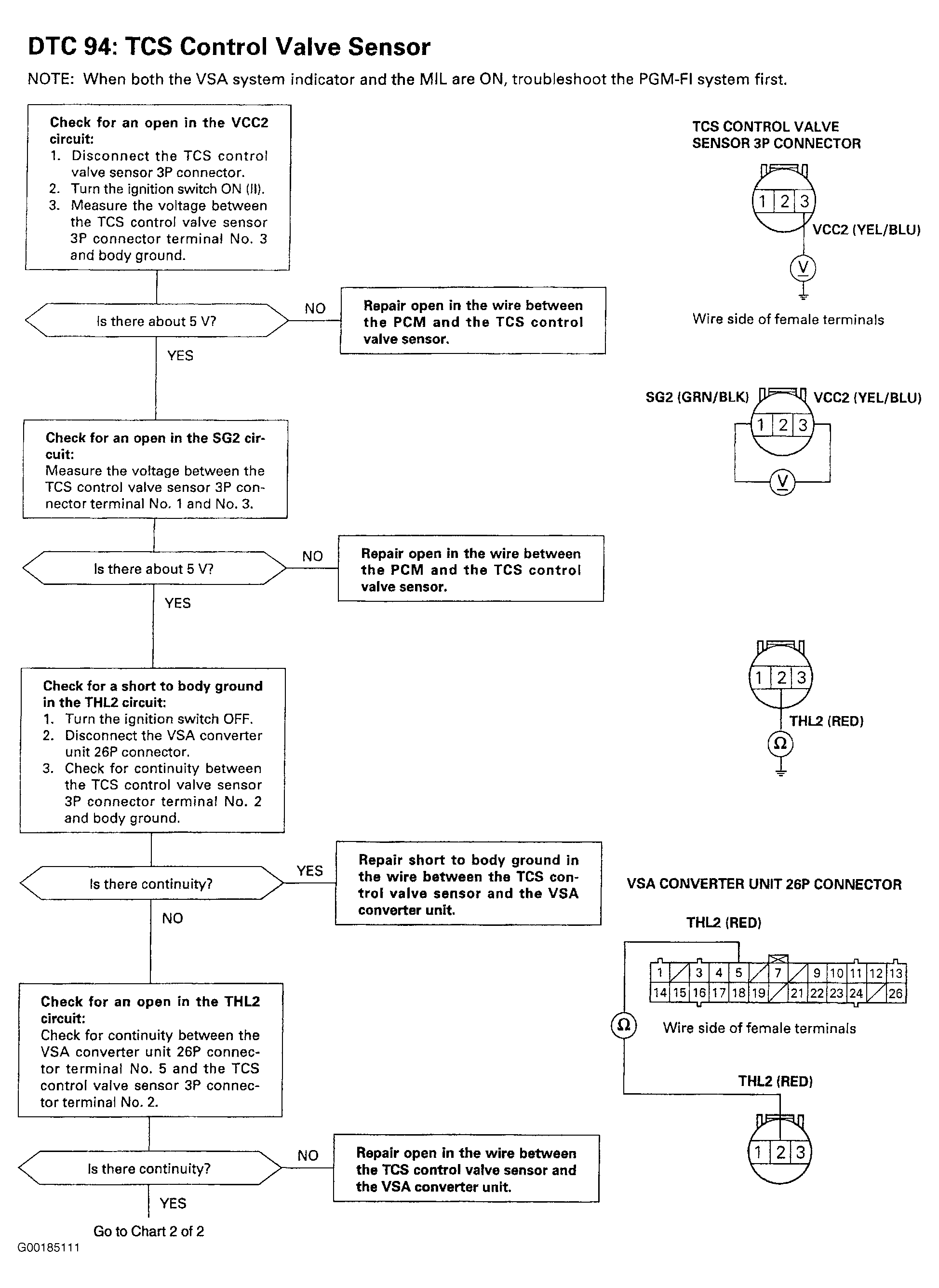

Fig 1: DTC 94: Control Valve Sensor Testing Flow Chart (1 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

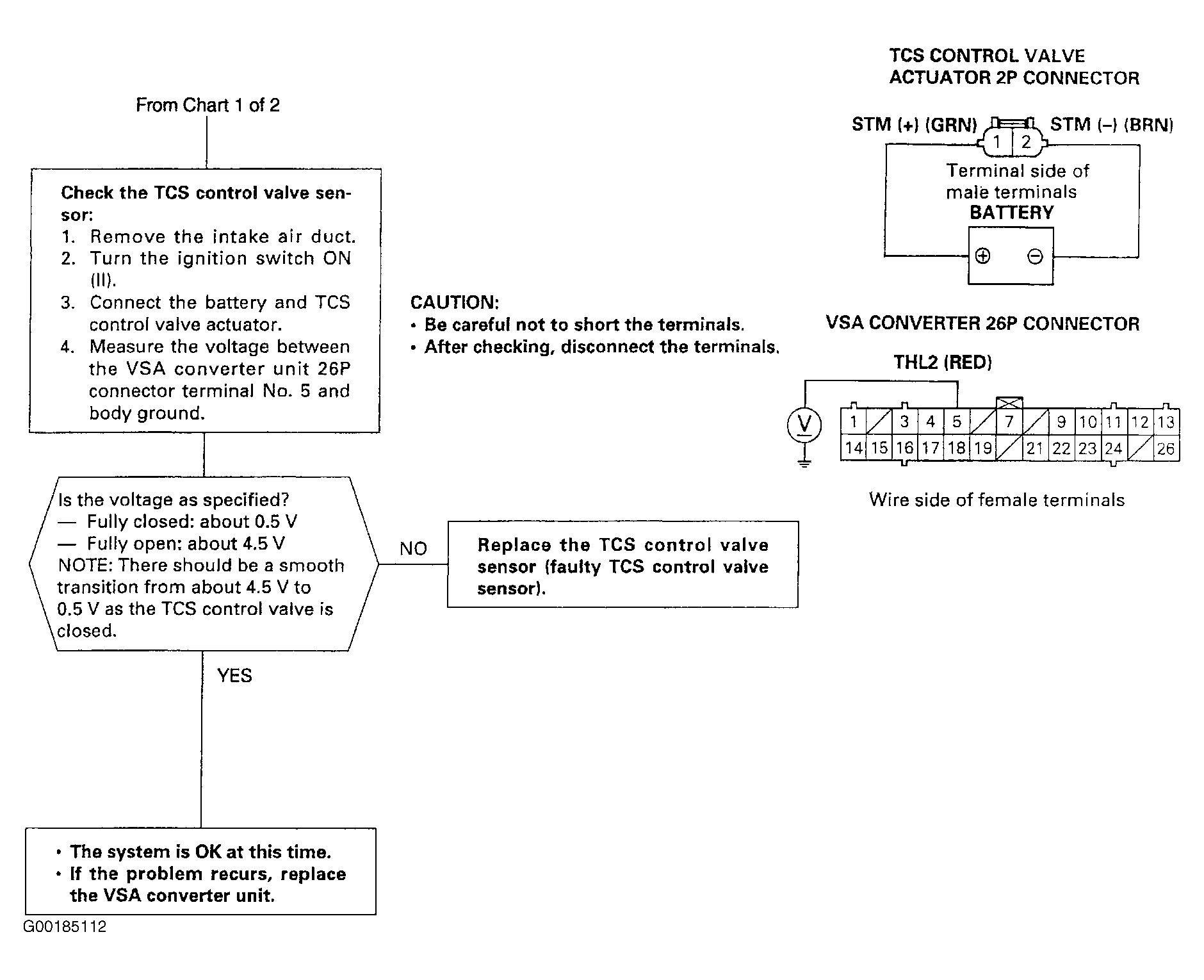

Fig 2: DTC 94: Control Valve Sensor Testing Flow Chart (2 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
