Lumbar Support Switch

Carefully pry out the lumbar support switch from the seat. Disconnect the connector from the switch. See Fig 1 . Using an ohmmeter, ensure switch continuity is as specified. See LUMBAR SUPPORT SWITCH CONTINUITY table. If switch fails test, replace faulty switch.

LUMBAR SUPPORT SWITCH CONTINUITY

Position	Terminals
Forward	2 & 4; 3 & 5
Backward	1 & 2; 4 & 5

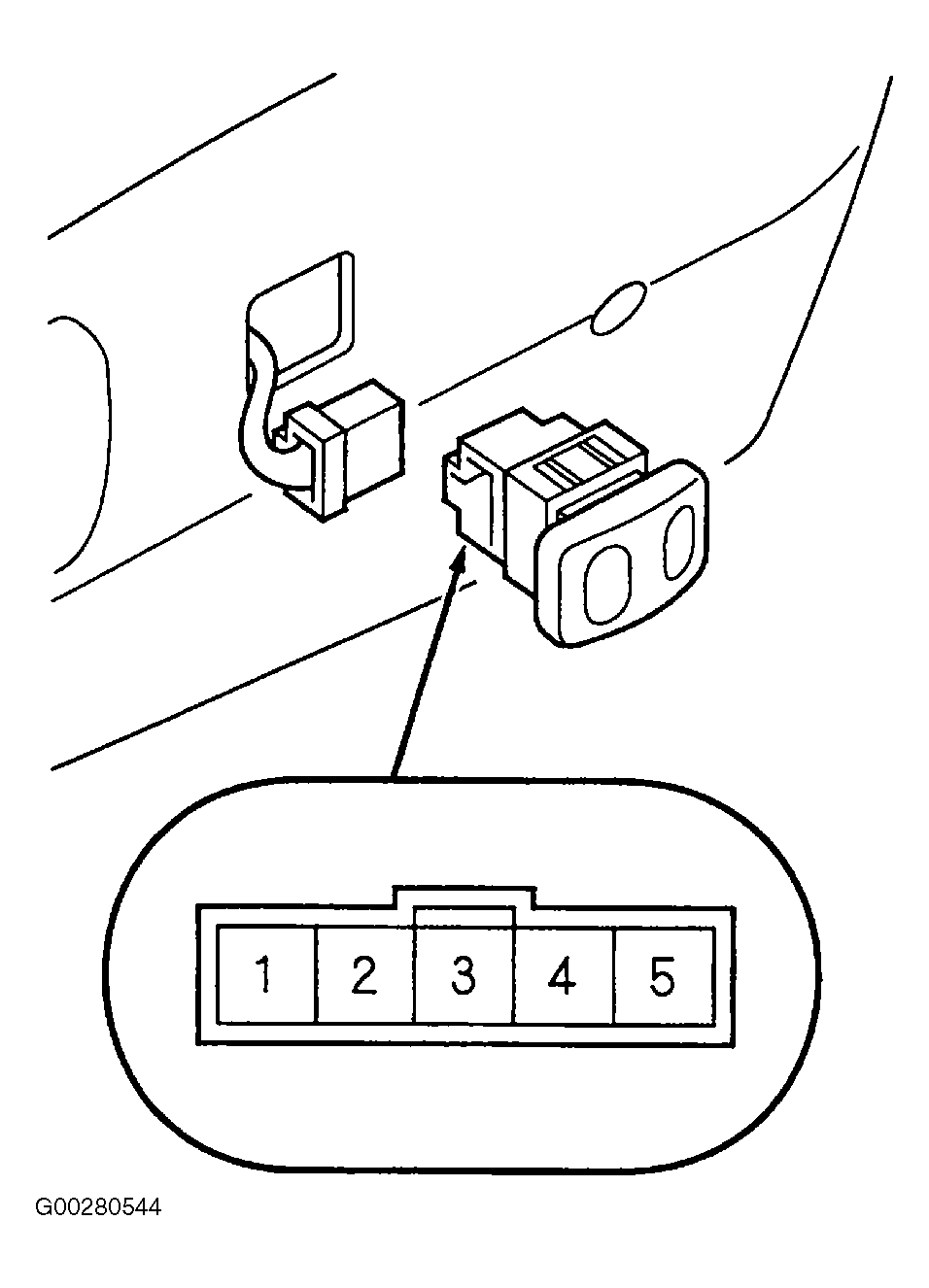

Fig 1: Identifying Lumbar Support Switch Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
