Lumbar Support Motor

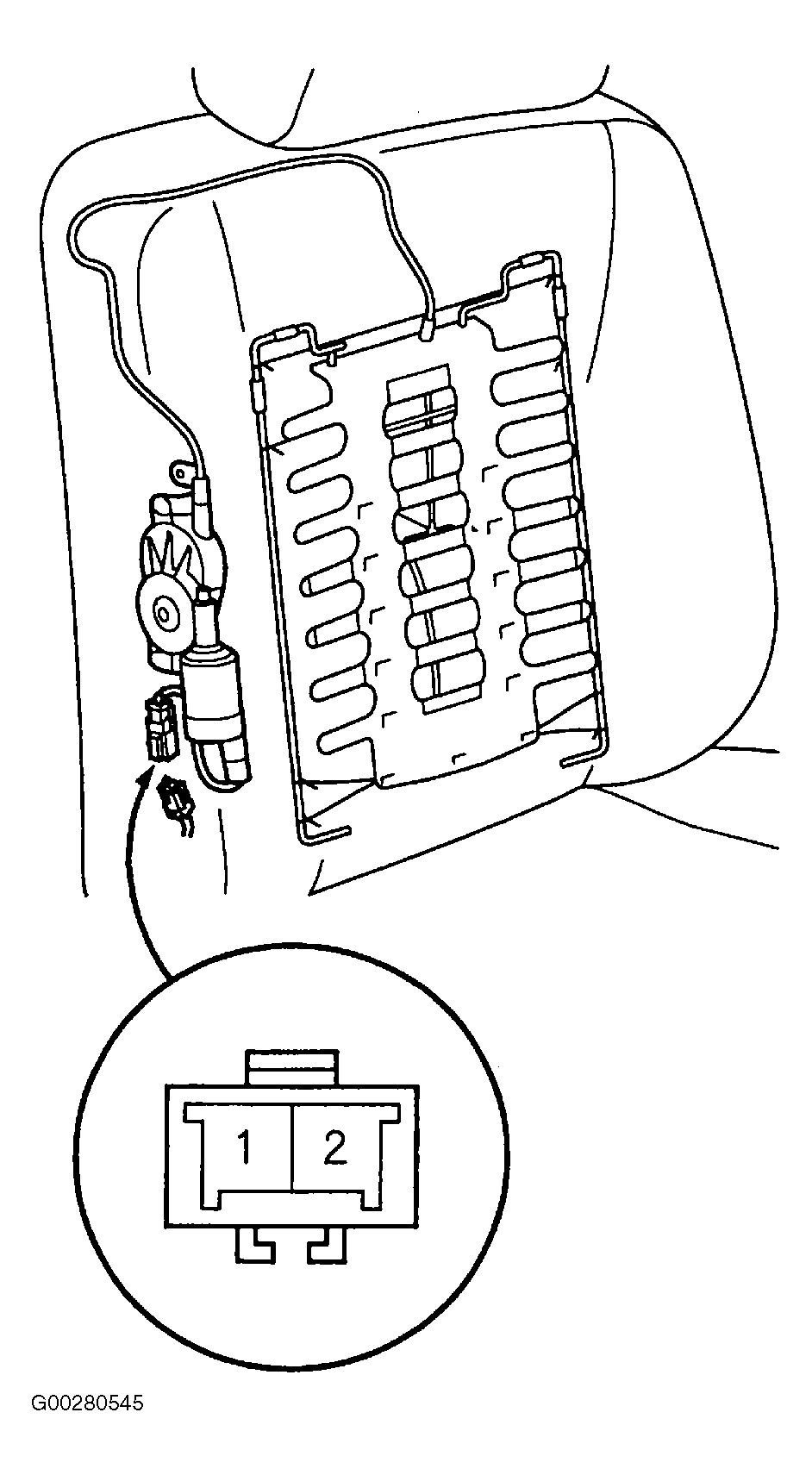

Remove driver's seat. See FRONT SEATS under REMOVAL & INSTALLATION. Disconnect lumbar support motor connector from sub-harness. See Fig 1 . Using fused jumper wires, apply battery voltage and ground to specified harness connector terminals. See LUMBAR SUPPORT MOTOR OPERATION table. If motor fails any portion of test, replace faulty motor.
LUMBAR SUPPORT MOTOR OPERATION
| Seat Movement | Connect Battery To Terminals (+) & (-) |
|---|---|
| Forward | 1 & 2 |
| Backward | 2 & 1 |
