Servo Body

The servo body is on the main valve body. It contains the servo valve, the shift valve A, the shift valve B, and CPC valves A and B.

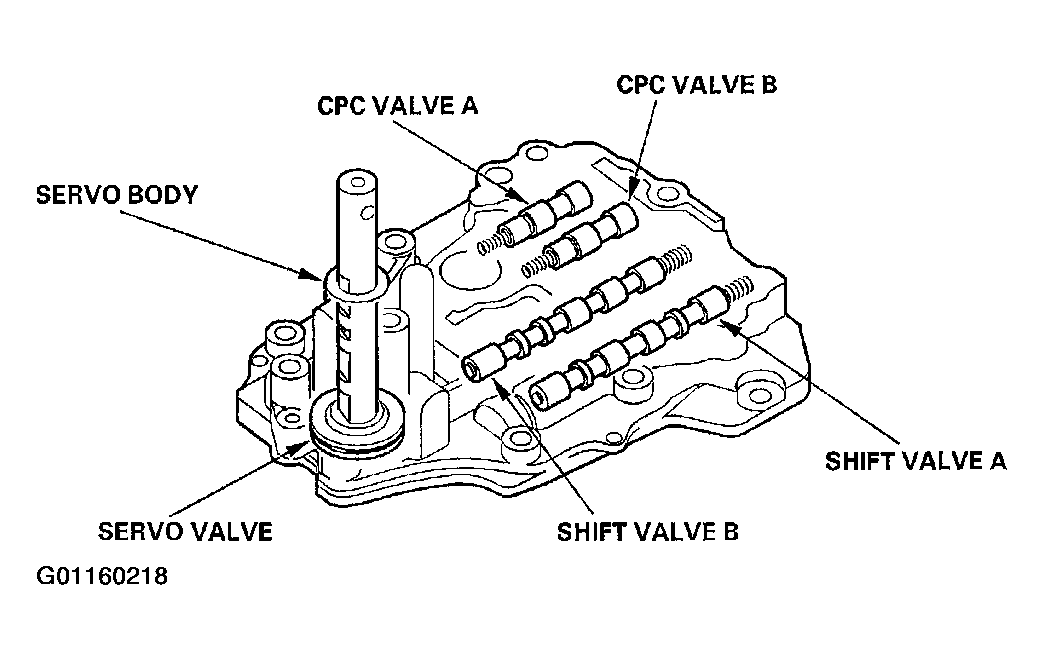

Fig 1: Cut-Away View Of Servo Body

Courtesy of AMERICAN HONDA MOTOR CO., INC.
