Gear Selection

The shift lever has nine positions: [ ] PARK, [ ] REVERSE, [ ] NEUTRAL, [5 ] 1st through 5th gear ranges, [4 ] 1st through 4th gear ranges, [3 ] 1st through 3rd gear ranges, [ ] 2nd gear, [ ] 1st gear, and the sequential sportshift mode position.

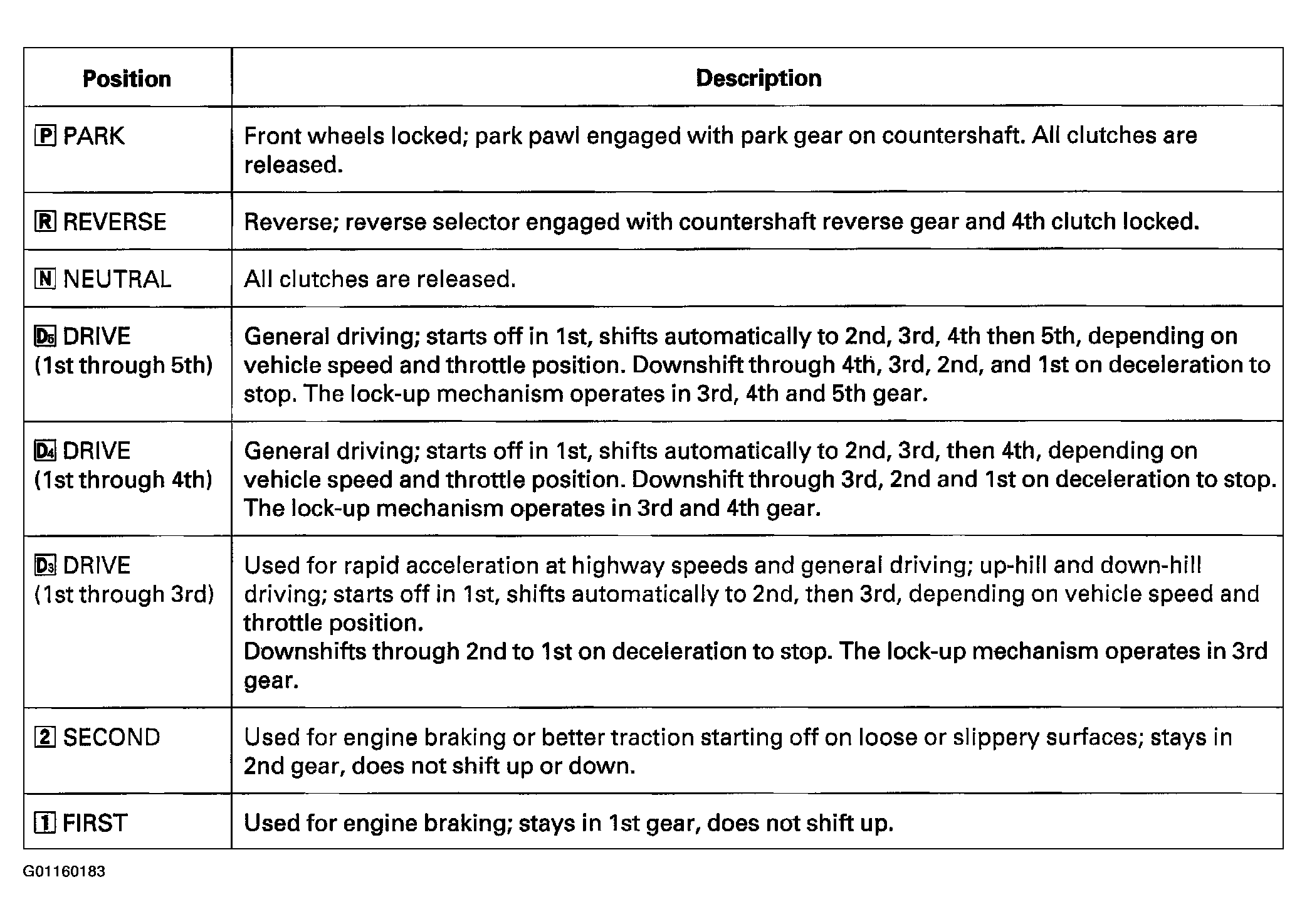

Fig 1: Identifying Shift Lever Positions
G01160183Courtesy of AMERICAN HONDA MOTOR CO., INC.

Starting is possible only in the [ ] and [ ] positions because of a slide-type neutral-safety switch.
