Automatic Transmission Diagnosis
>>
System Description
>>
Circuit Diagram
Circuit Diagram

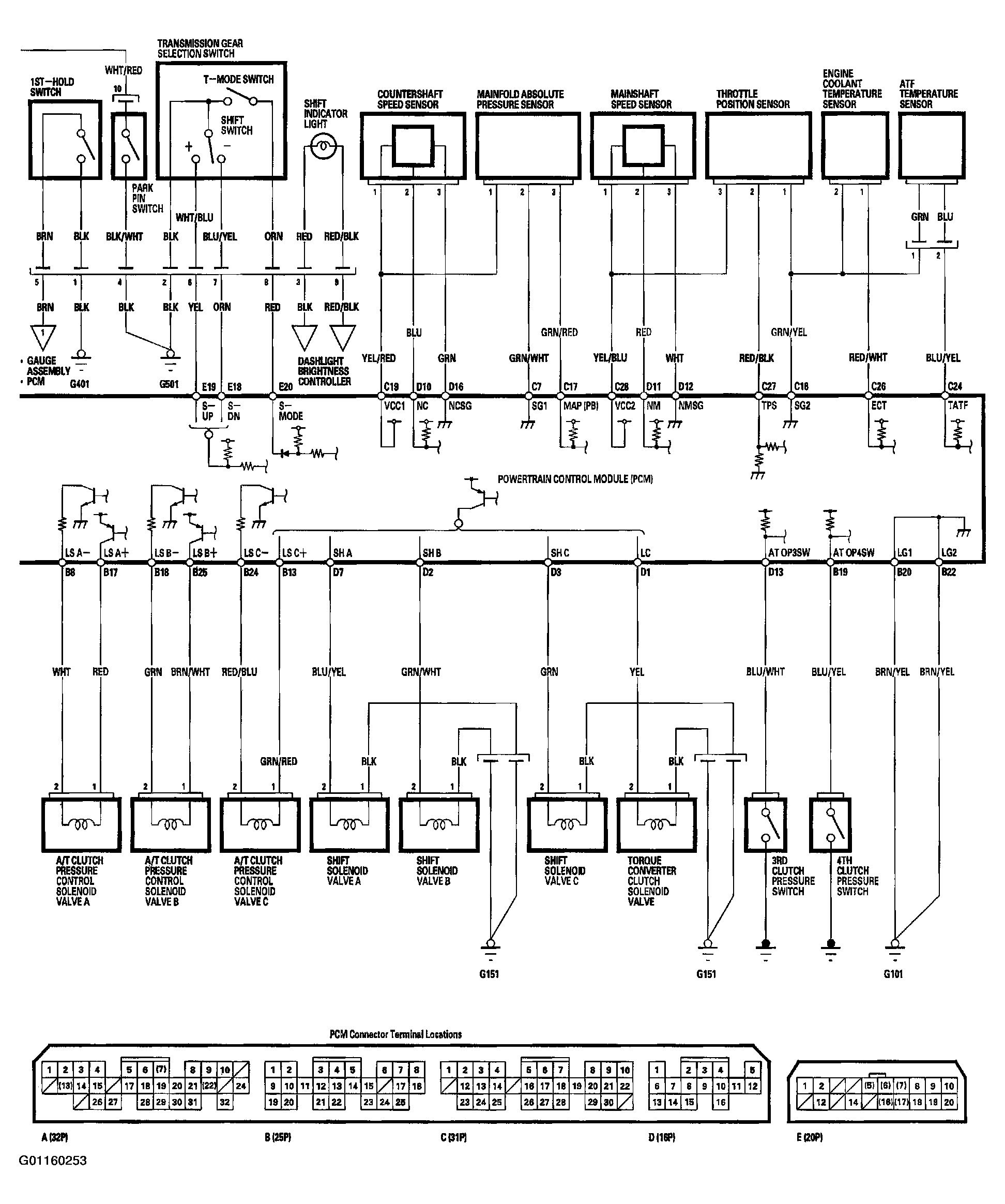

Fig 1: System Description Circuit Diagram (1 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

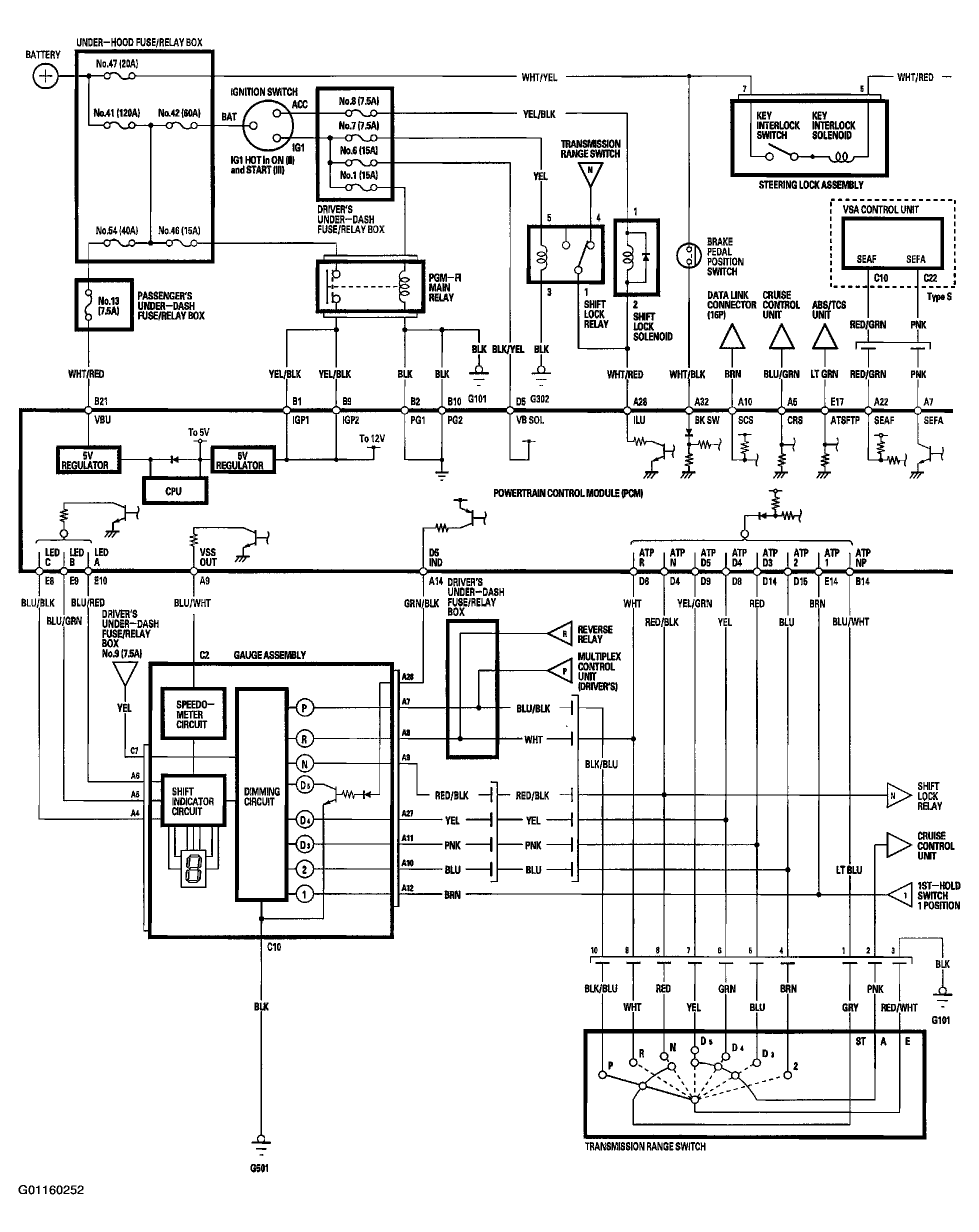

Fig 2: System Description Circuit Diagram (2 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
