Symptom Troubleshooting Index

These symptoms DO NOT trigger Diagnostic Trouble Codes (DTCs) or cause the [D ₅ ] indicator to blink. If the MIL was reported ON or the [D ₅ ] indicator has been blinking, check for DTCs. But if the vehicle has one of the symptoms in the following chart, check the probable cause(s) for it in the sequence listed, until you find the problem.

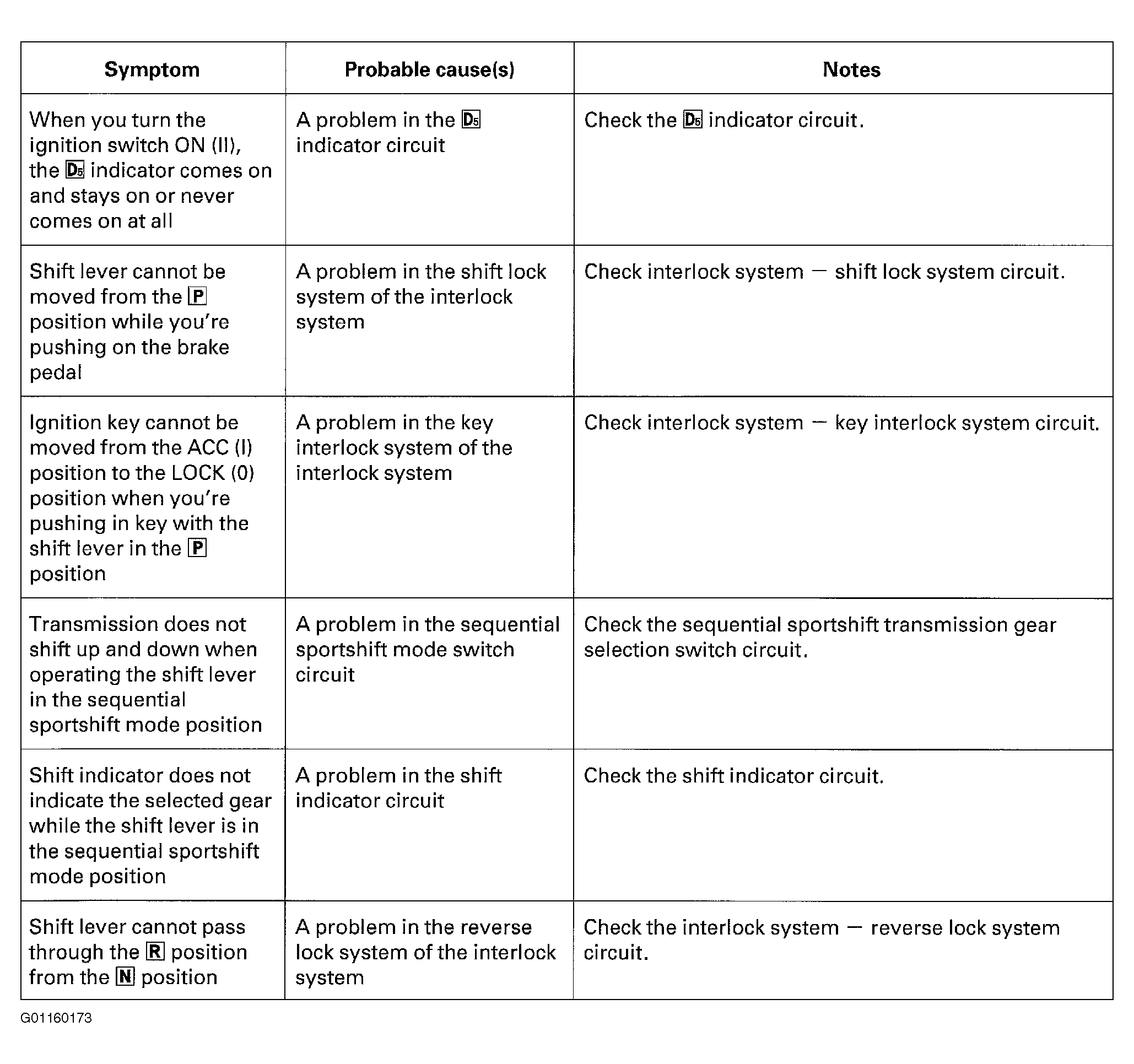

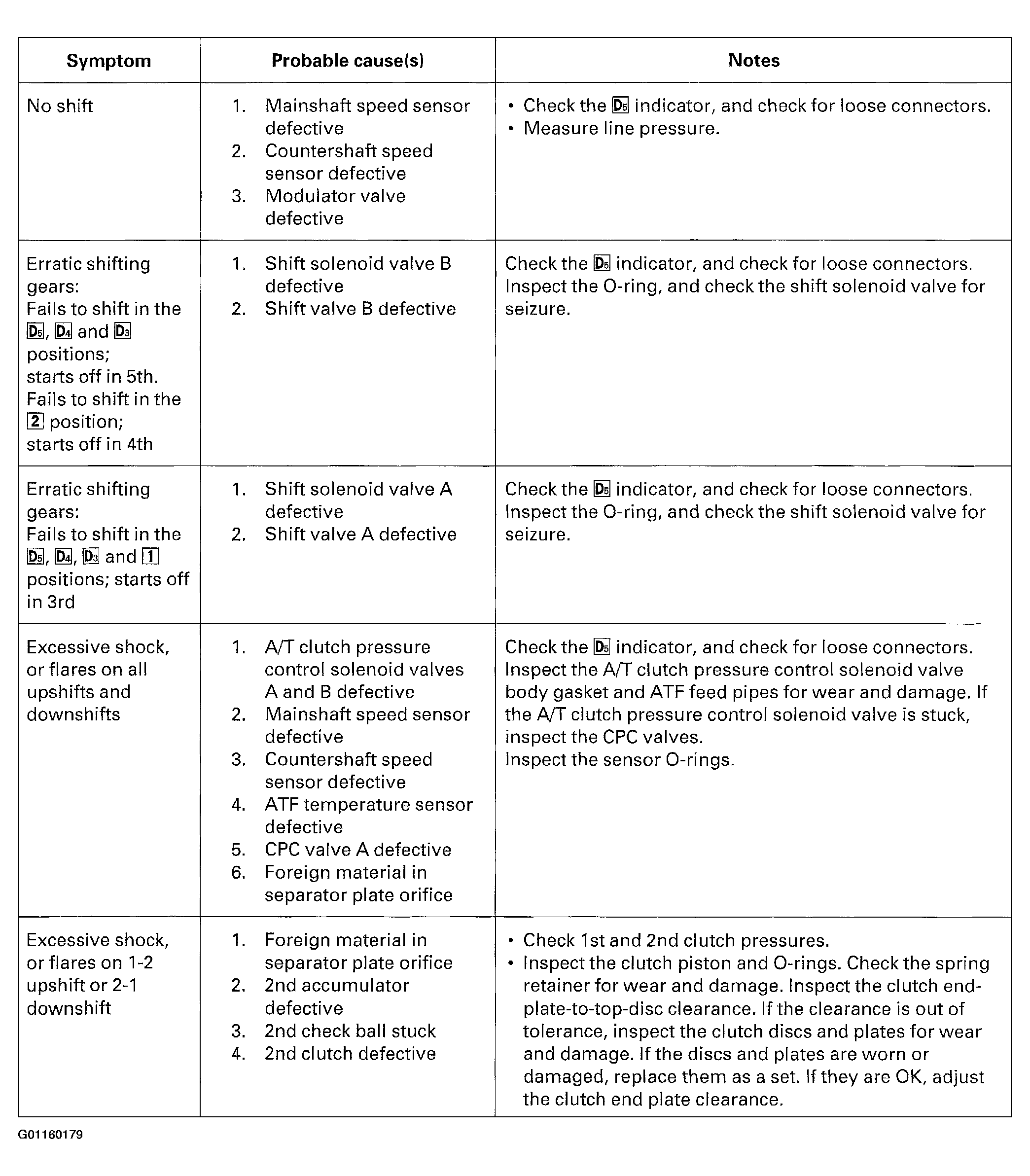

Fig 1: Symptom Troubleshooting Index (1 of 10)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

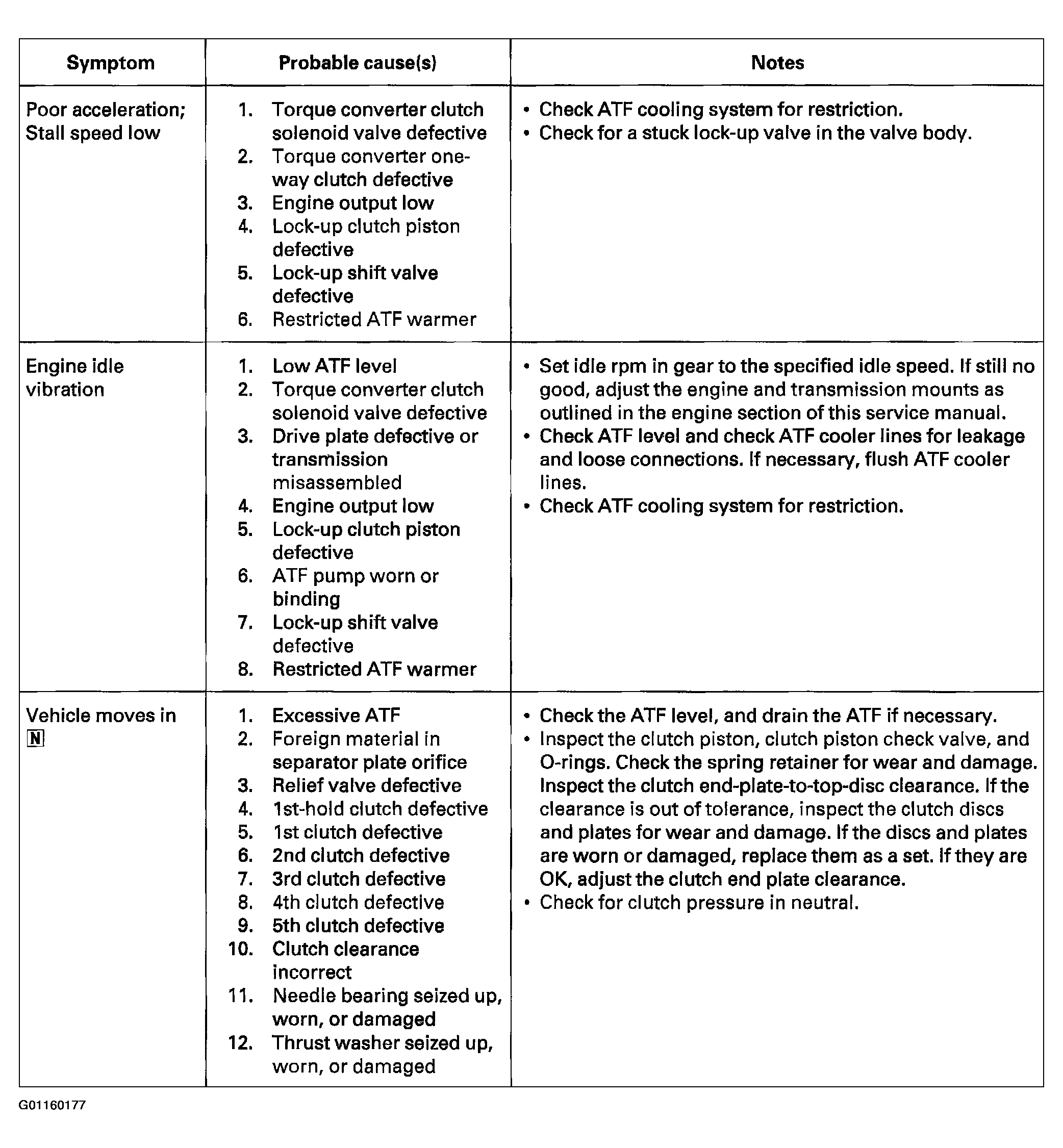

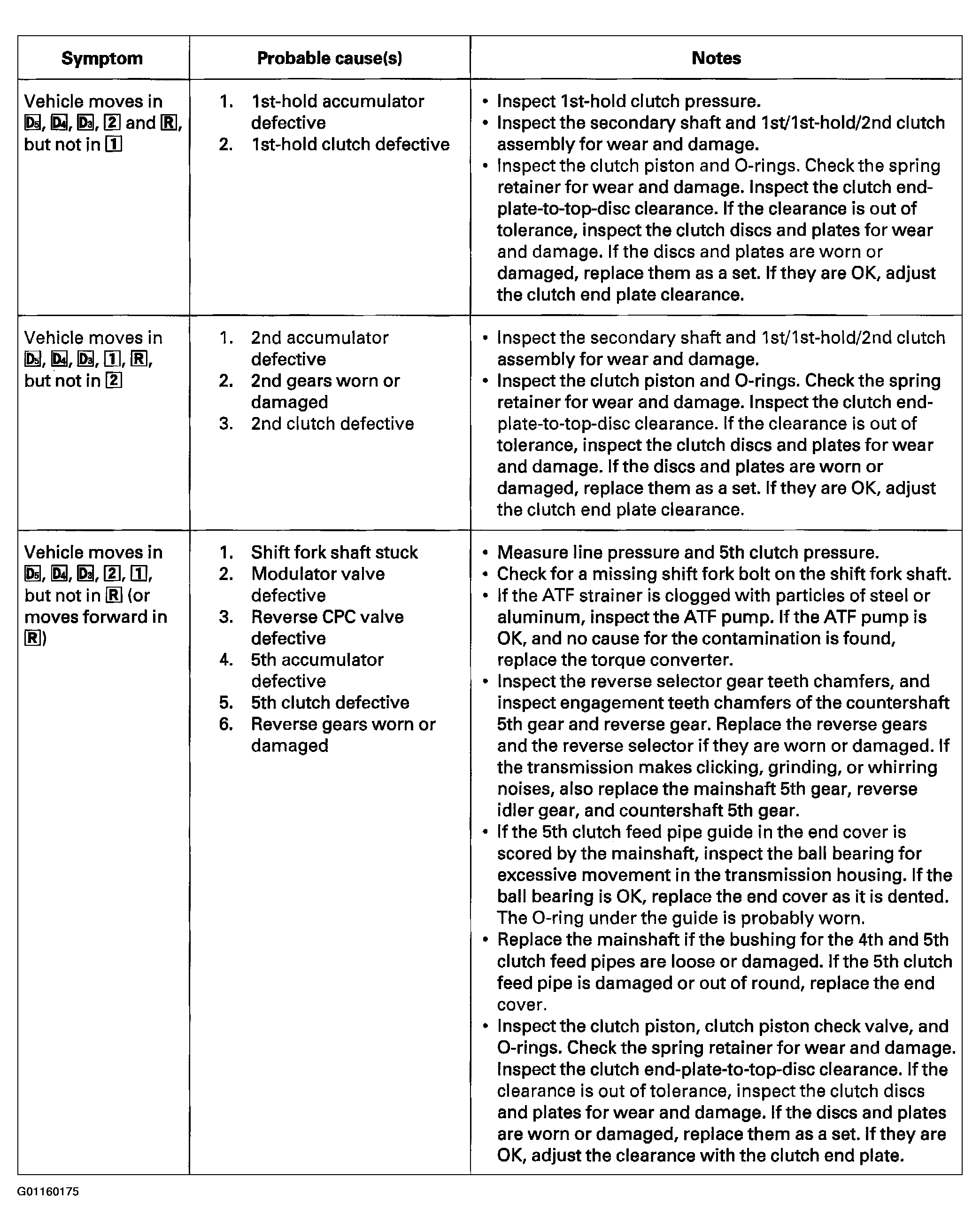

Fig 2: Symptom Troubleshooting Index (2 of 10)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

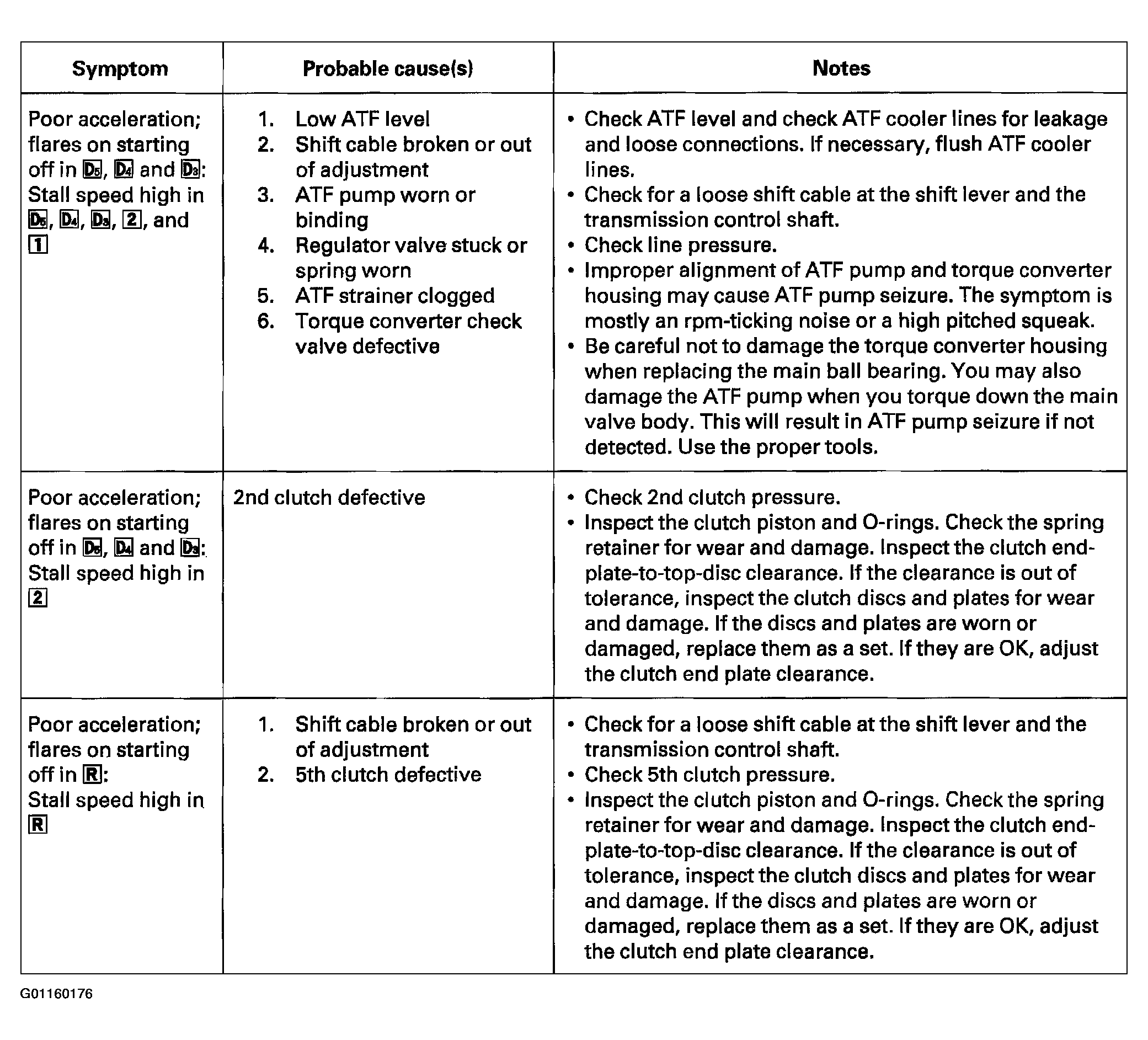

Fig 3: Symptom Troubleshooting Index (3 of 10)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

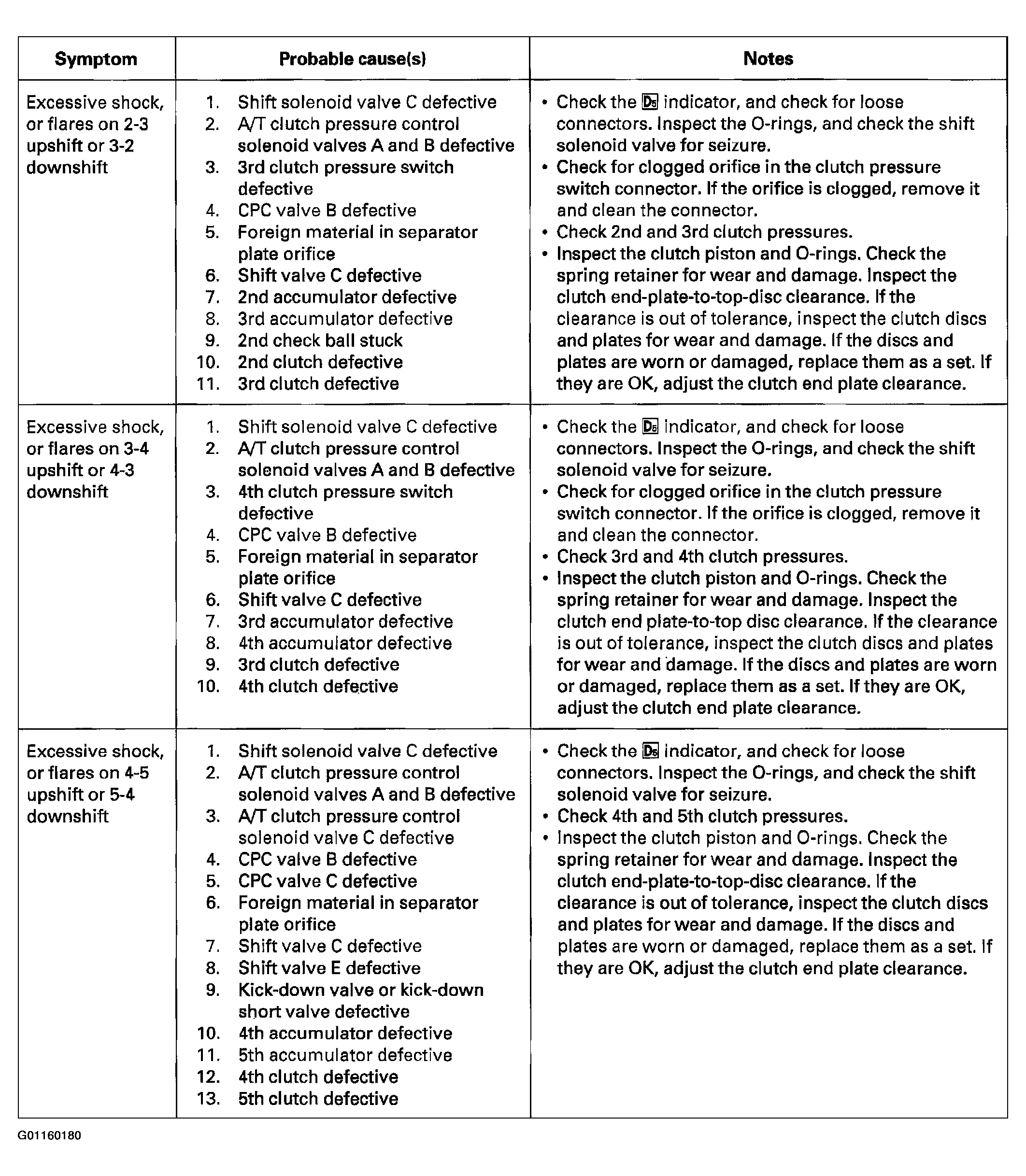

Fig 4: Symptom Troubleshooting Index (4 of 10)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

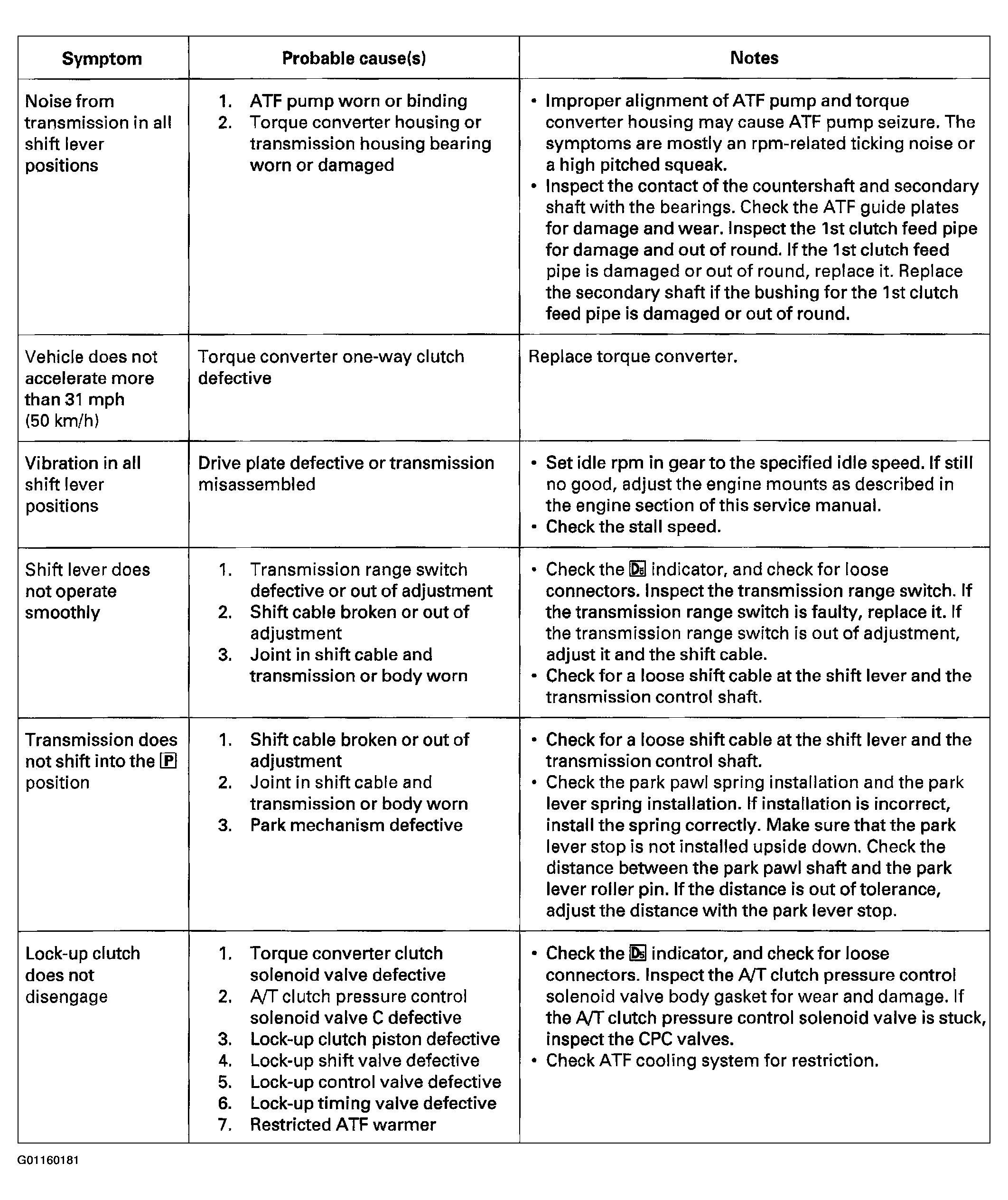

Fig 5: Symptom Troubleshooting Index (5 of 10)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

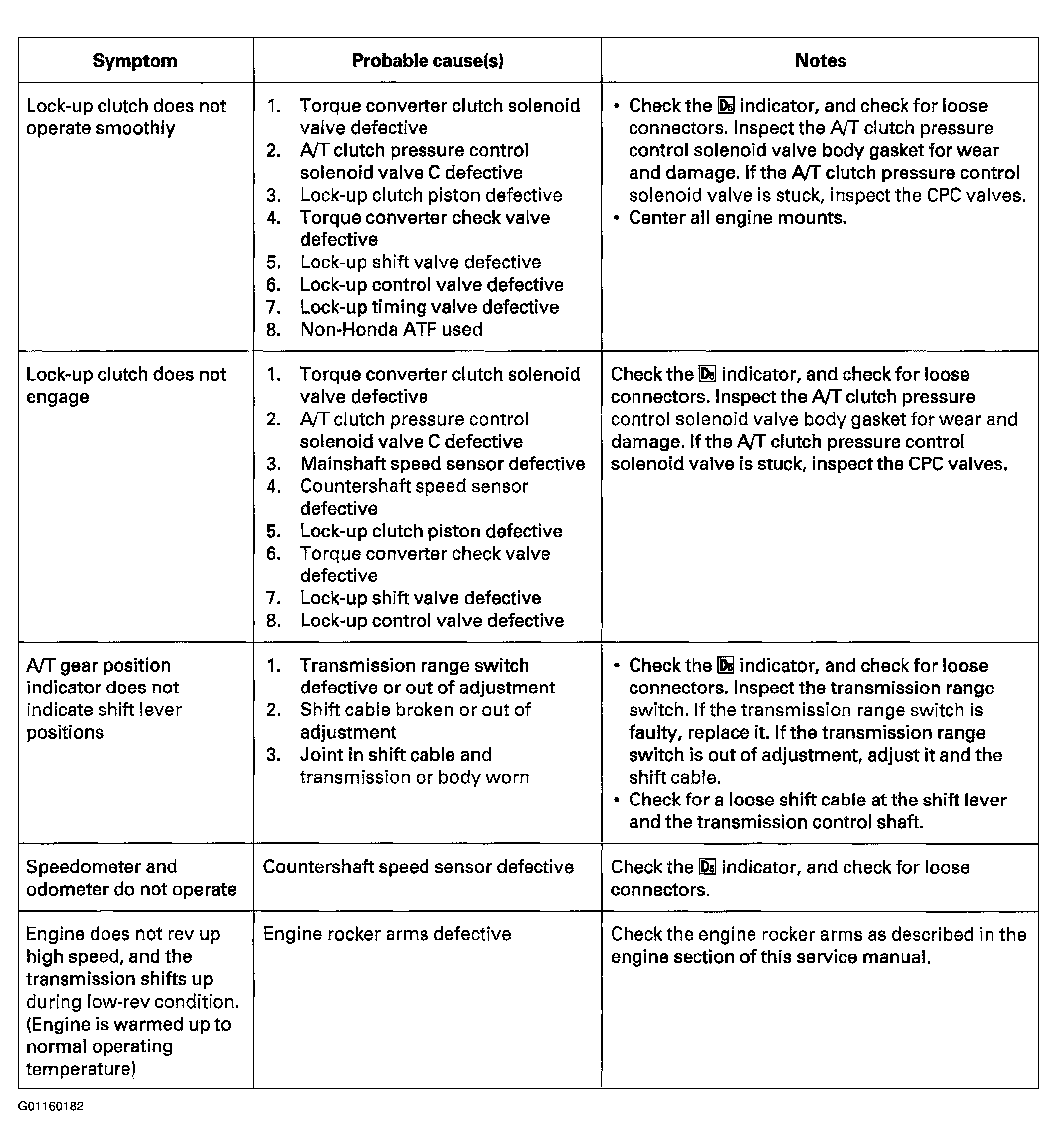

Fig 6: Symptom Troubleshooting Index (6 of 10)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

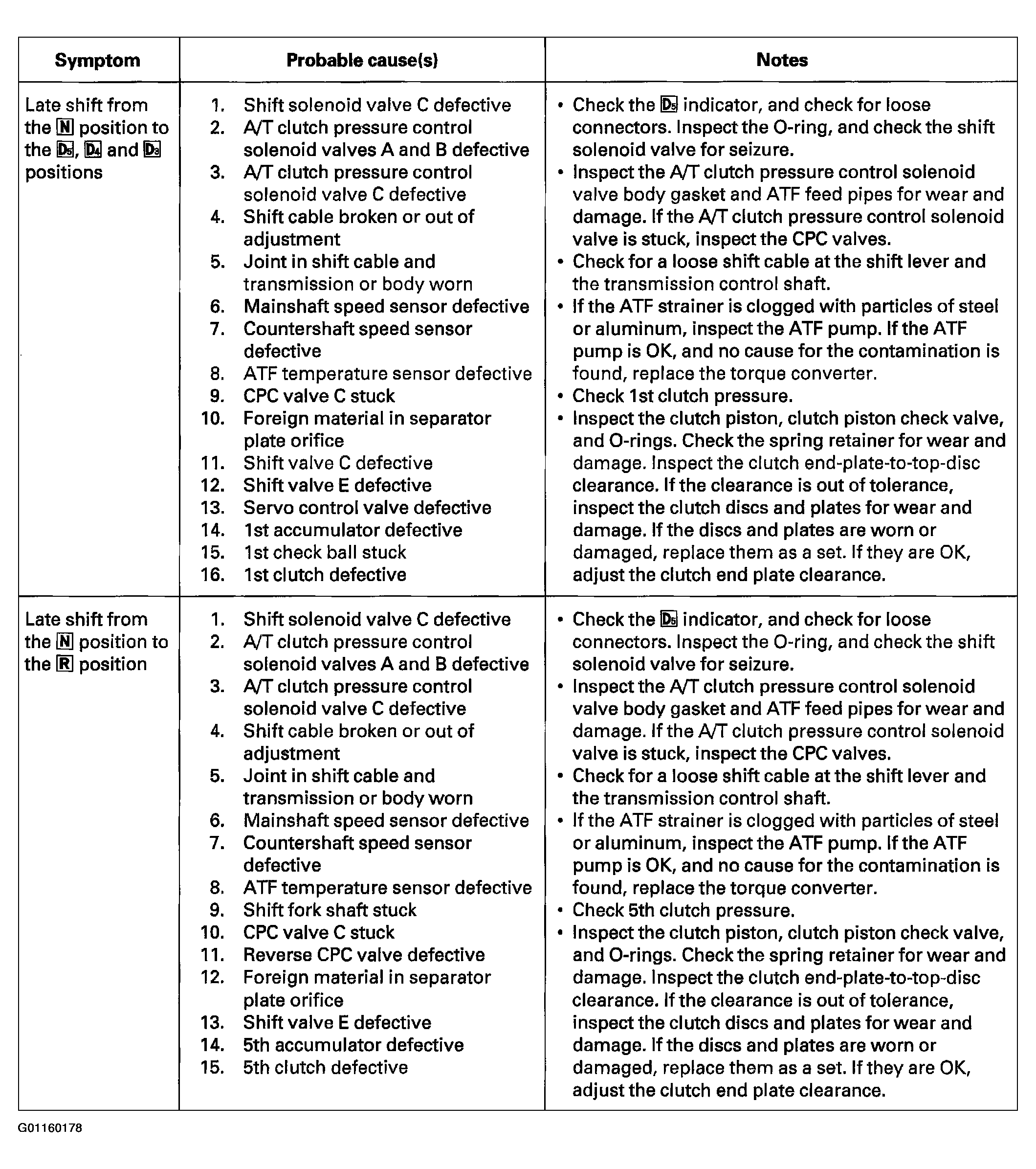

Fig 7: Symptom Troubleshooting Index (7 of 10)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

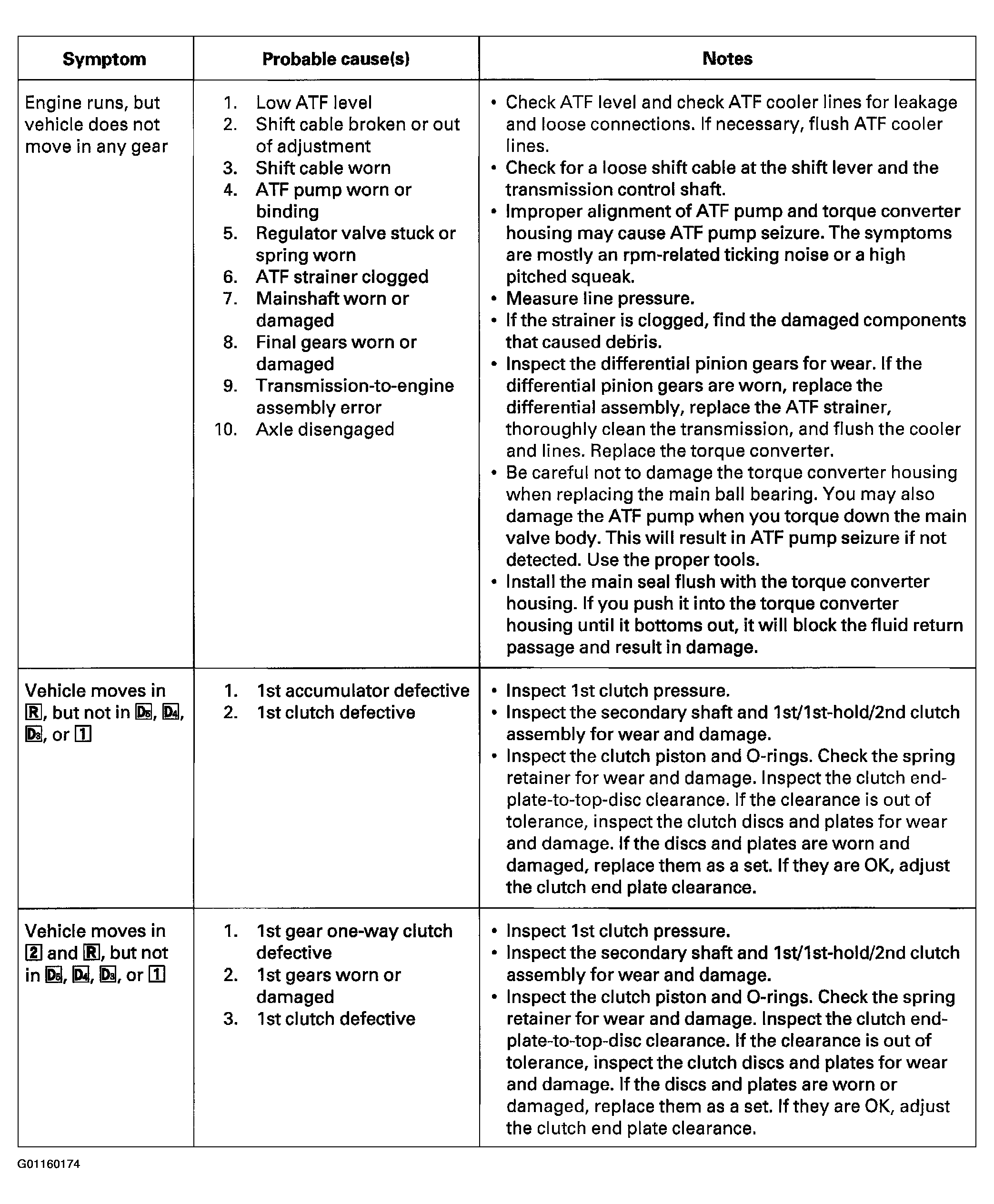

Fig 8: Symptom Troubleshooting Index (8 of 10)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Symptom Troubleshooting Index (9 of 10)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Symptom Troubleshooting Index (10 of 10)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
