Symptom Troubleshooting Index

Find the symptom in the chart below, and do the related procedures in the order listed until you find the cause.

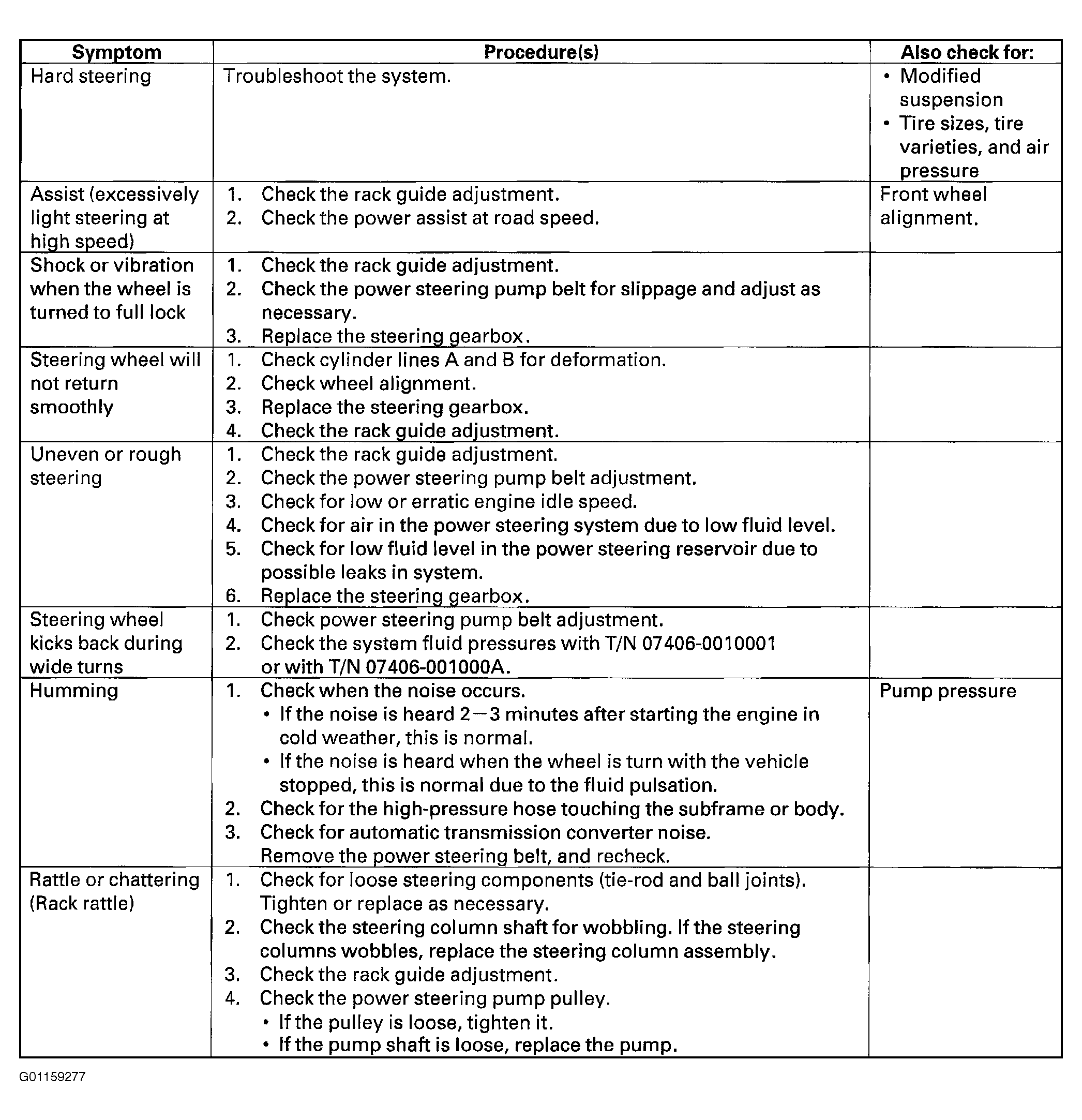

Fig 1: Symptom Troubleshooting Index Chart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

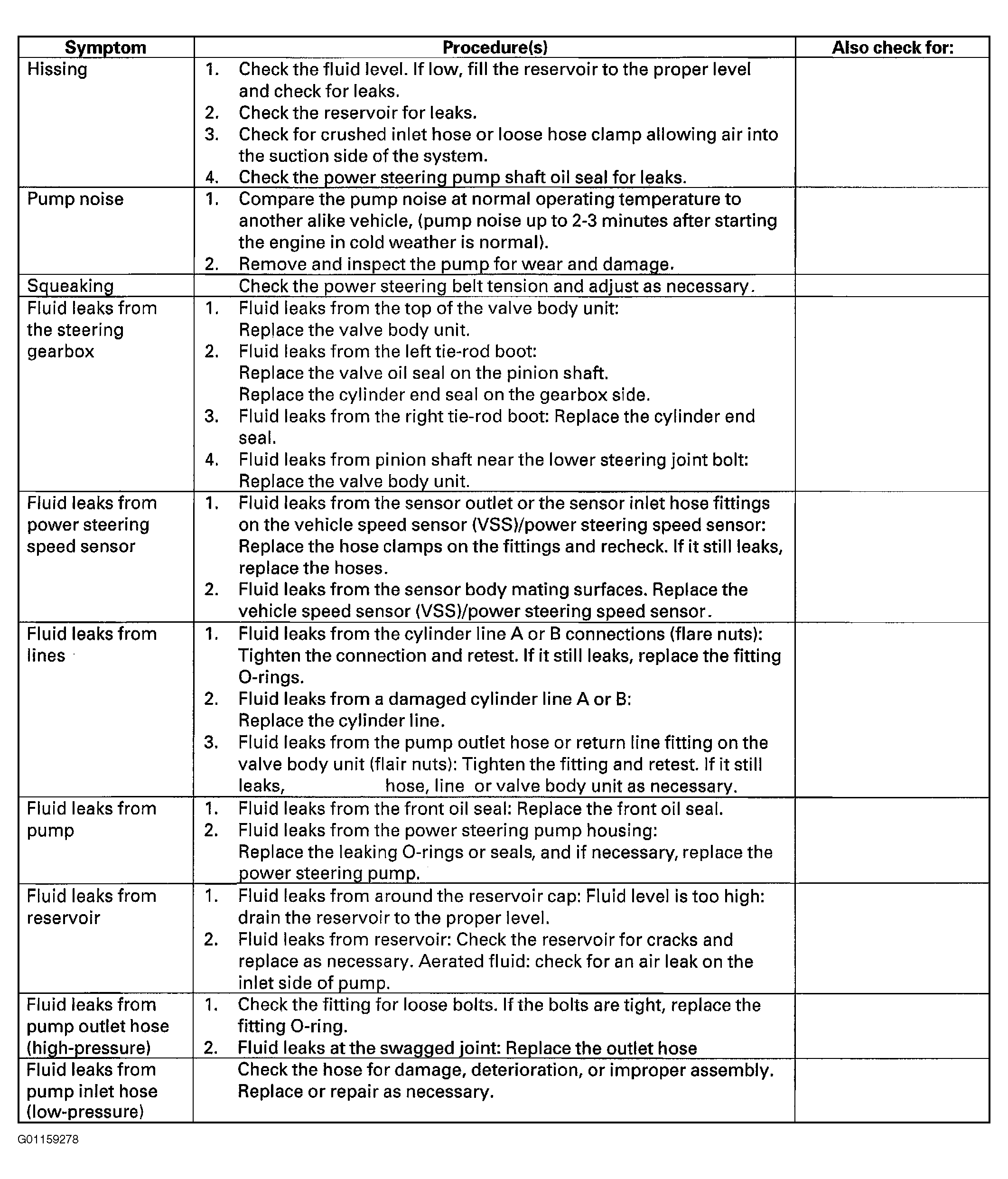

Fig 2: Symptom Troubleshooting Index Chart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
