Right Power Mirror Connector End View

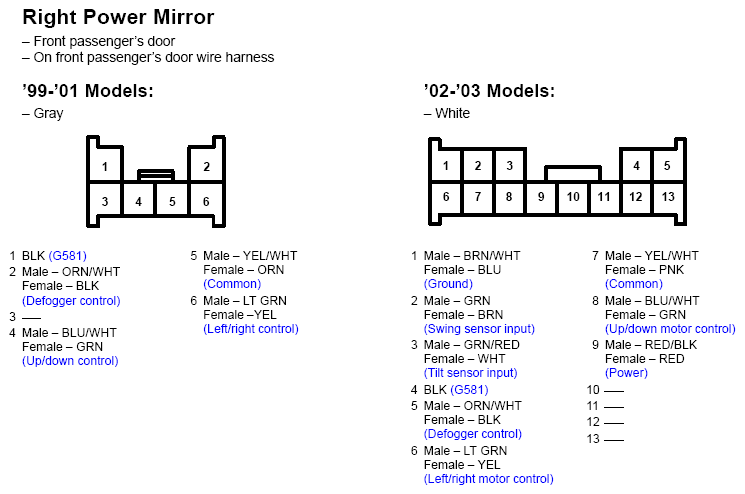

Fig 1: Right Power Mirror Connector End View

G11247390

Courtesy of AMERICAN HONDA MOTOR CO., INC.
