Removal & Installation: Engine: Removal

NOTE:
  • Use fender covers to avoid damaging painted surfaces.
  • To avoid damage, unplug the wiring connectors carefully while holding the connector portion.
  • Mark all wiring and hoses to avoid misconnection. Also, be sure that they do not contact other wiring or hoses, or interfere with other parts.
    NOTE: Do not attempt to close the hood with the support strut in the vertical position, as it will damage the support strut and hood.
  1. Remove the support struts (A) from the engine hood. Move the hood to a vertical position, then reinstall the support strut. See Fig 1.
  2. Make sure you have the anti-theft code for the radio, then write down the frequencies for the radio's preset buttons.
  3. Disconnect the negative cable from the battery first, then the positive cable.
  4. Remove the battery.
  5. Remove the intake manifold cover (if applicable). See Fig 2.
  6. Remove the water bypass hoses (A). See Fig 3. Disconnect the TCS control valve actuator connector (B) and the TCS control valve angle sensor connector (C) from the TCS control valve assembly, then remove the bolt (D) securing the TCS control valve bracket (J32A2 engine).
  7. Remove the Evaporative Emission (EVAP) canister hose (A) from the throttle body. See Fig 4.
  8. Remove the vacuum hose (B) and breather pipe (C), then remove the intake air duct (D).
  9. Remove the harness clamp (A), then remove the battery base (B). See Fig 5.
  10. Remove the battery base bracket (C).
  11. Remove the starter cable (A). See Fig 6.
  12. Remove the ground cable (B) (2002-03 models).
    Fig 1: Removing Support Struts From Engine Hood
    G00296330Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 2: Removing Intake Manifold Cover (2000-03 Models)
    G00296331Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 3: Removing Water Bypass Hoses
    G00296332Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 4: Removing Evaporative Emission Canister Hose From Throttle Body
    G00296333Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 5: Removing Battery Base
    G00296334Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 6: Removing Starter Cable
    G00296335Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Remove the throttle cable (A) and cruise control cable (B) by loosening the locknuts (C), then slip the cable ends out of the accelerator linkage. See Fig 7. Take care not to bend the cables when removing them. Always replace any kinked cable with a new one.
  14. Remove the ground cable (A) and harness clamp (B) (J32A2 engine). See Fig 8.
  15. Disconnect the engine wire harness connectors (C), and remove the harness clamp (D) on the left side of the engine compartment.
  16. Relieve fuel pressure. See FUEL PRESSURE RELEASE .
  17. Remove the fuel feed hose (A) and fuel return hose (B). See Fig 9.
  18. Remove the brake booster vacuum hose (A) and vacuum hose (B). See Fig 10.
  19. Remove the engine wire harness clamps. See Fig 11.

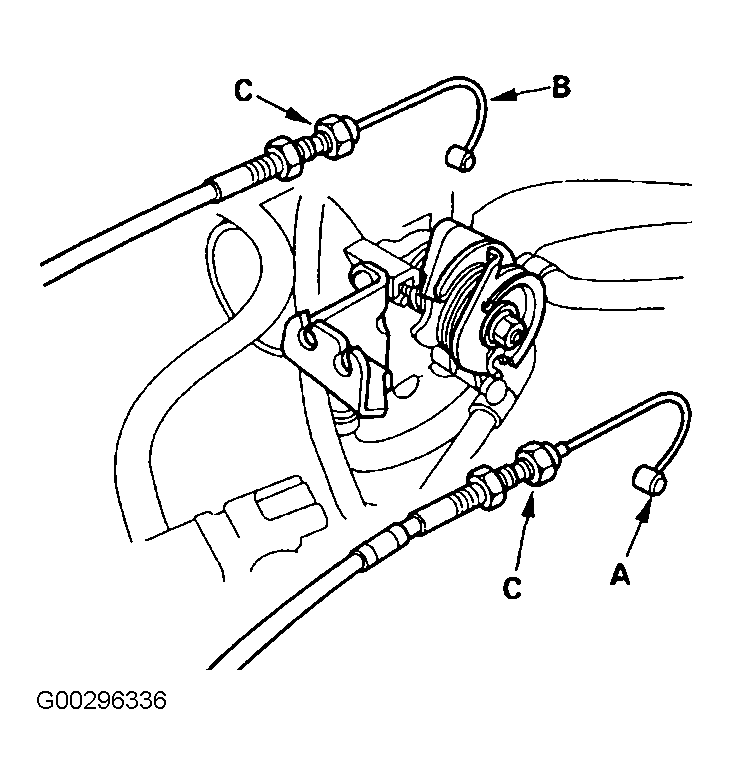

    Fig 7: Removing Throttle Cable & Cruise Control Cable
    G00296336Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 8: Removing Ground Cable & Harness Clamp
    G00296337Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 9: Removing Fuel Feed Hose & Fuel Return Hose
    G00296338Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 10: Removing Brake Booster Vacuum Hose & Vacuum Hose
    G00296339Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 11: Removing Engine Wire Harness Clamps
    G00296340Courtesy of AMERICAN HONDA MOTOR CO., INC.
  20. Remove the vacuum hose (A), then disconnect the primary Heated Oxygen Sensor (primary HO2S) connector (B). See Fig 12.
  21. Remove the battery cables (A) from the under-hood fuse relay box (B). See Fig 13.
  22. Remove the flange bolt (C), then remove the under-hood fuse relay box.
  23. Remove the harness clamps (D).
  24. Disconnect the Engine Control Module (ECM)/Powertrain Control Module (PCM) connectors (A) from the ECM/PCM, and remove the harness clamps (B). See Fig 14.
  25. Remove the grommet mounting nuts (A), then pull out the engine wire harness. See Fig 15.
  26. Move the auto-tensioner (A) to remove tension from the alternator belt (B), then remove the alternator belt. See Fig 16.
  27. Loosen adjusting nut (A), remove the locknut (B) and mounting bolt (C), then remove the power steering (P/S) pump belt (D) and pump without disconnecting the P/S hoses. See Fig 17.
  28. Remove P/S hose clamp (E).
    Fig 12: Removing Vacuum Hoses
    G00296341Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 13: Removing Battery Cables From Under-Hood Fuse From Relay Box
    G00296342Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 14: Disconnecting Powertrain Control Module Connectors
    G00296343Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 15: Removing Grommet Mounting Nuts
    G00296344Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 16: Moving Auto-Tensioner To Remove Tension From Alternator Belt
    G00296345Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 17: Loosening Adjusting Nut
    G00296346Courtesy of AMERICAN HONDA MOTOR CO., INC.
  29. Disconnect the Vehicle Speed Sensor (VSS) connector (A) (1999 model). See Fig 18.
  30. Remove the power steering speed sensor (B). Do not remove the hoses.
  31. Remove radiator cap.
  32. Raise the hoist to full height.
  33. Remove the front tires/wheels.
  34. Remove the splash shield. See Fig 19.
  35. Loosen the drain plug in the radiator to drain the engine coolant.
  36. Drain the Automatic Transmission Fluid (ATF). See appropriate SERVICING article in TRANSAXLE/TRANSMISSIONS.
  37. Drain the engine oil. Reinstall the drain bolt using a new washer. See ENGINE OIL  under ENGINE OILING.
  38. Remove exhaust pipe "A". See Fig 20.
    Fig 18: Disconnecting Vehicle Speed Sensor (1999 Model)
    G00296347Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 19: Removing Splash Shield
    G00296348Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 20: Removing Exhaust Pipe
    G00296349Courtesy of AMERICAN HONDA MOTOR CO., INC.
  39. Remove the damper forks. See appropriate FRONT article in SUSPENSION.
  40. Disconnect the suspension lower arm ball joints. See appropriate FRONT article in SUSPENSION.
  41. Remove the axle shafts. See appropriate AXLE SHAFTS article in DRIVELINE/AXLES. Coat all precision finished surfaces with clean engine oil. Tie plastic bags over the driveshaft ends.
  42. Remove the bolts (A) securing the shift cable holder (B), then remove the shift cable cover (C). See Fig 21. To prevent damage to the control lever joint, be sure to remove the bolts securing the shift cable holder before removing the bolts securing the shift cable cover.
  43. Remove the lock bolt (D) securing the control lever (E), then remove the shift cable (F) with the control lever. Take care not to bend the shift cable while removing it.
  44. Unplug the P/S hose clamps (A), and disconnect the engine mount control vacuum hose (B). See Fig 22.
  45. Lower the hoist, then remove the upper radiator hose (A), and the lower radiator hose (B). See Fig 23.
  46. Remove heater hoses. See Fig 24.
  47. Remove the ATF cooler hoses (A), then plug the ATF cooler hoses and lines (1999 model). See Fig 25.
  48. Remove the ground cable (B).
  49. Remove the P/S hose clamp from the rear beam. See Fig 26.
    Fig 21: Removing Bolts Securing Shift Cable Holder
    G00296350Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 22: Unplugging P/S Hose Clamps
    G00296351Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 23: Removing Upper Radiator Hose
    G00296352Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 24: Removing Heater Hoses
    G00296353Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 25: Removing ATF Cooler Hoses
    G00296354Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 26: Removing P/S Hose Clamp From Rear Beam
    G00296355Courtesy of AMERICAN HONDA MOTOR CO., INC.
  50. Attach the chain hoist to the engine. See Fig 27.
  51. Remove the side engine mount bracket. See Fig 28.
  52. Remove the rear mount bracket support nut (A) and mounting bolt (B). See Fig 29.
  53. Remove the front mount bracket support nut. See Fig 30.
  54. Make sure the hoist brackets are positioned properly. Raise the hoist to full height.
  55. Remove the flange bolts securing the radius rods. See Fig 31.
    Fig 27: Attaching Chain Hoist To Engine
    G00296356Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 28: Removing Side Engine Mount Bracket
    G00014477Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 29: Removing Rear Mount Bracket Support Nut & Bolt
    G00296358Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 30: Removing Front Mount Bracket Support Nut
    G00296359Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 31: Removing Flange Bolts Securing Radius Rods
    G00296360Courtesy of AMERICAN HONDA MOTOR CO., INC.
  56. Make a mark (A) on the front beam (B) and rear beam (C), then remove the front beam. See Fig 32.
  57. Remove the A/C compressor without disconnecting the A/C hoses. See Fig 33. Secure compressor with wire. Do not let compressor hang by hoses.
  58. Remove the rear mount bracket. See Fig 34.
  59. Remove the transmission lower rear mount. See Fig 35.
  60. Check that the engine/transmission is completely free of vacuum hoses, fuel and coolant hoses and electrical wiring.
  61. Slowly lower the engine about 6" (150 mm). Check once again that all hoses and wires are disconnected from the engine/transmission.
  62. Lower the engine all the way. Disconnect the chain hoist from the engine.
  63. Remove the engine from under the vehicle.
Fig 32: Making "A" Mark On Front & Rear Beam
G00296361Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 33: Removing A/C Compressor Without Disconnecting A/C Hoses
G00296362Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 34: Removing Rear Mount Bracket
G00296363Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 35: Removing Transmission Lower Rear Mount
G00297625Courtesy of AMERICAN HONDA MOTOR CO., INC.
