'03 Model:

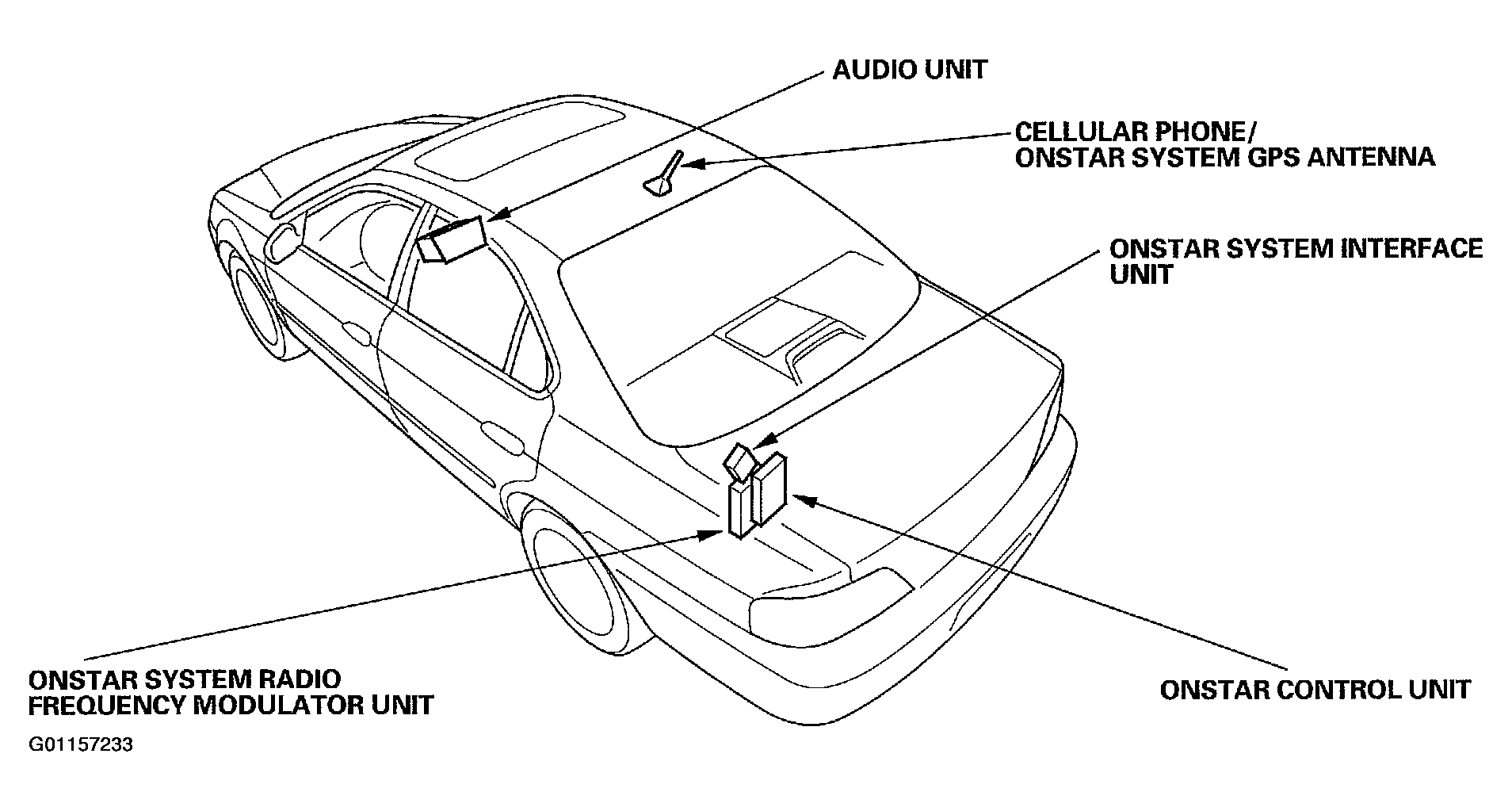

Fig 1: Locating OnStar System Components (1 Of 2)

G01157233

Courtesy of AMERICAN HONDA MOTOR CO., INC.

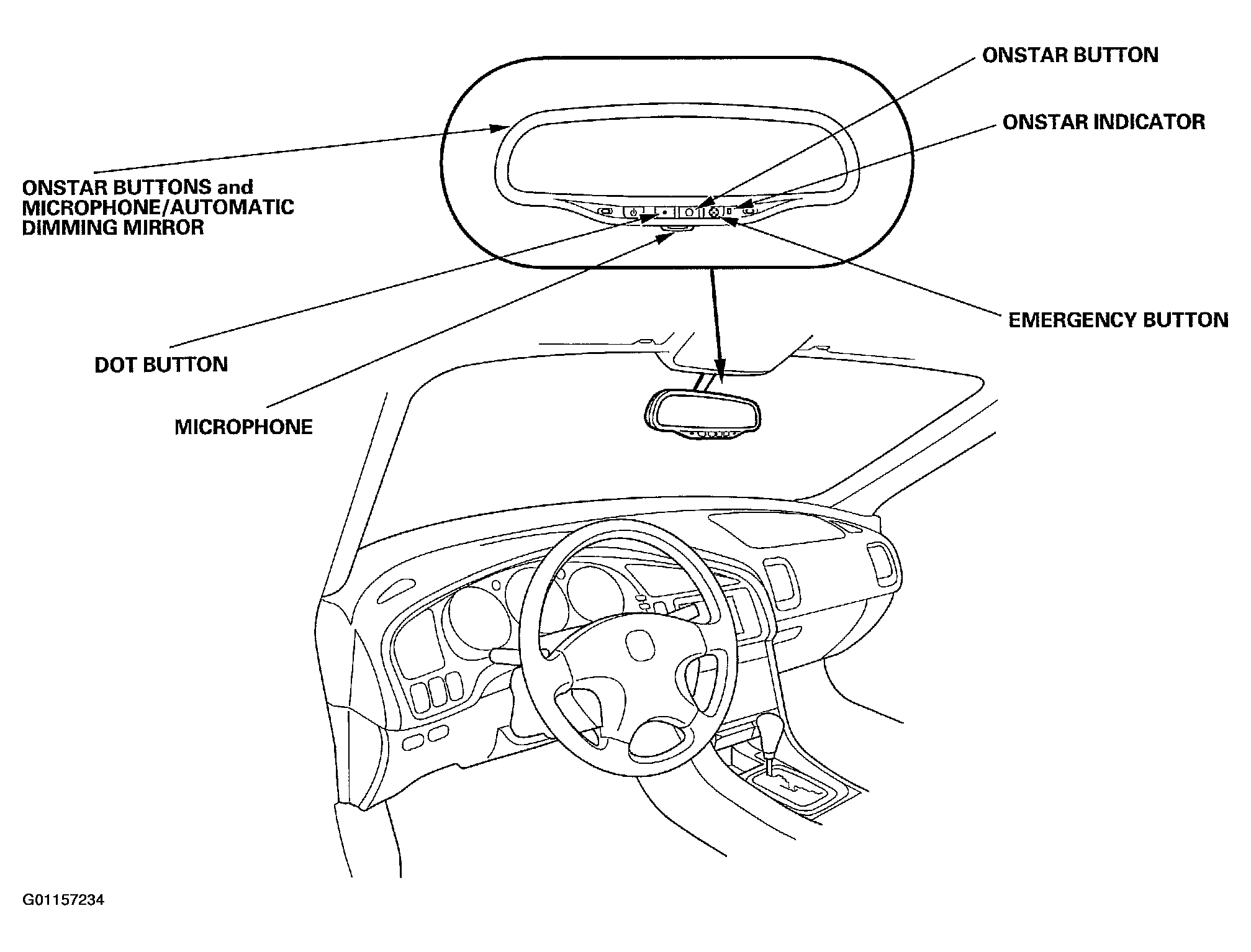

Fig 2: Locating OnStar System Components (2 Of 2)

G01157234

Courtesy of AMERICAN HONDA MOTOR CO., INC.
