Circuit Diagram

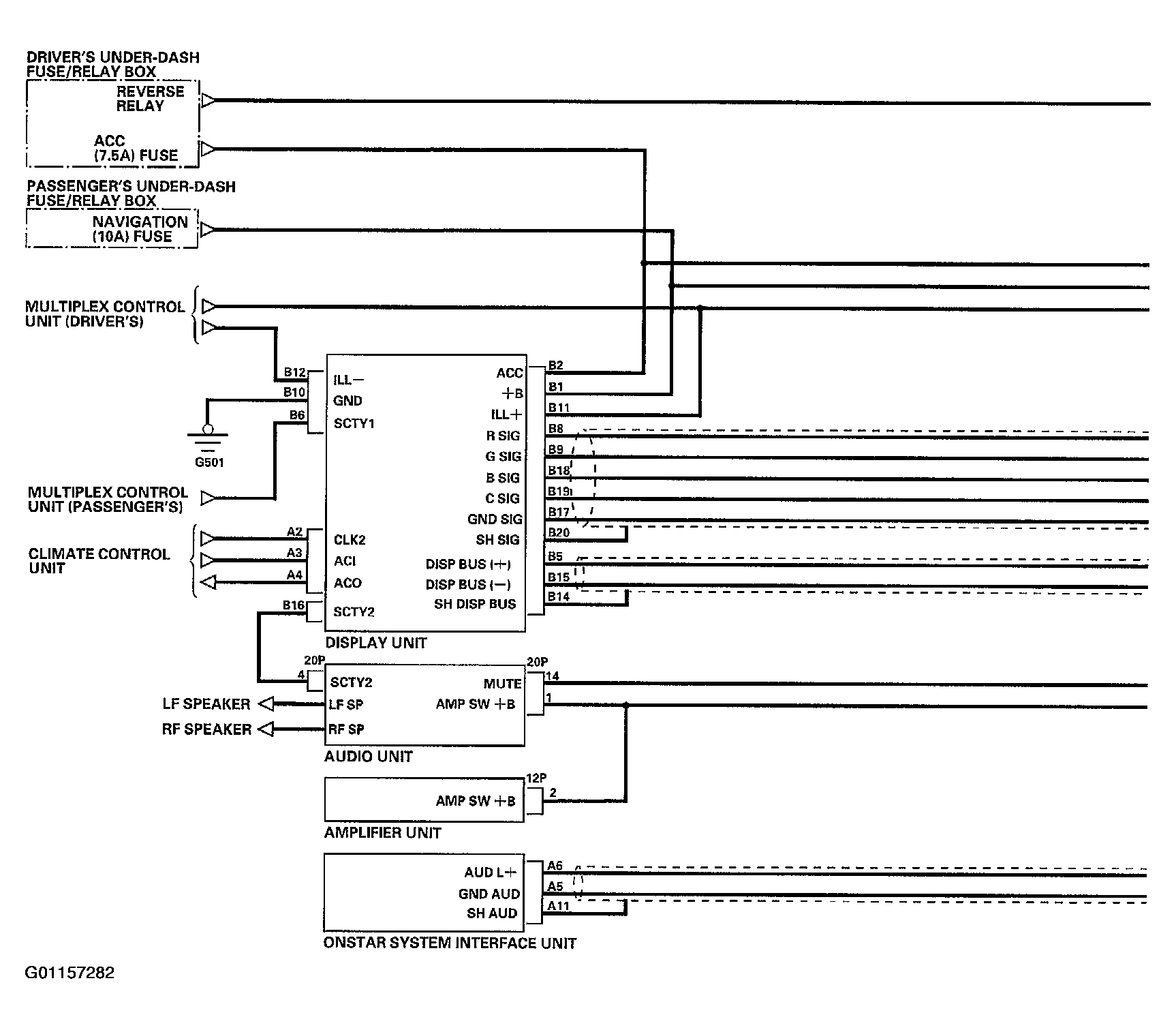

Fig 1: Navigation System Wiring Diagram (1999 model - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

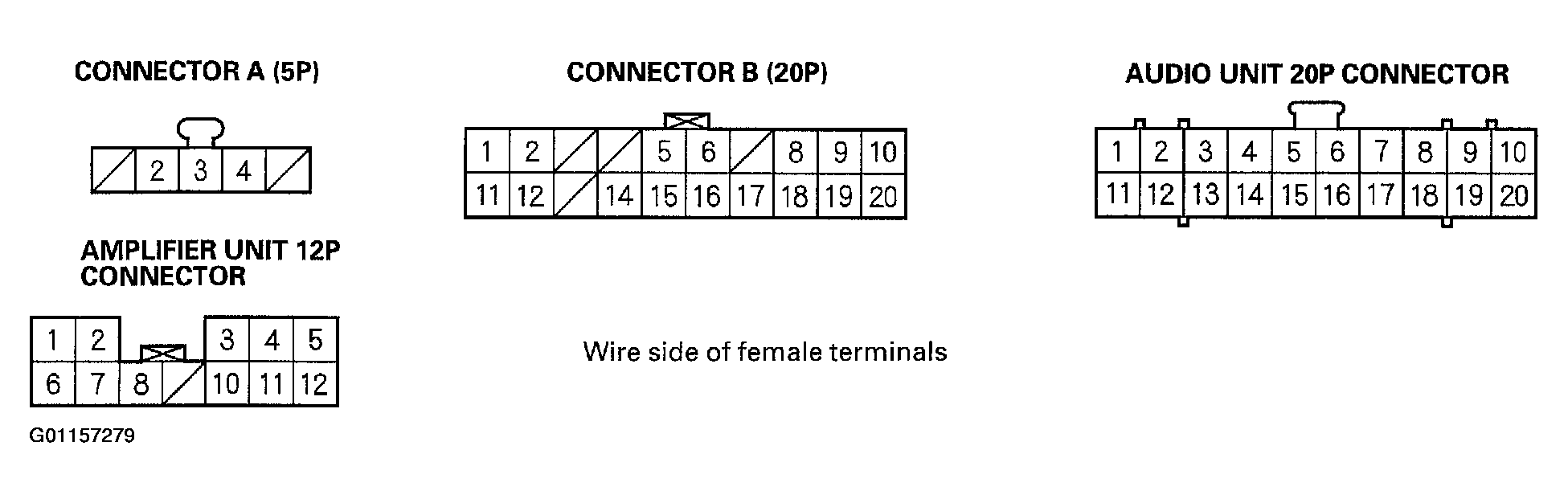

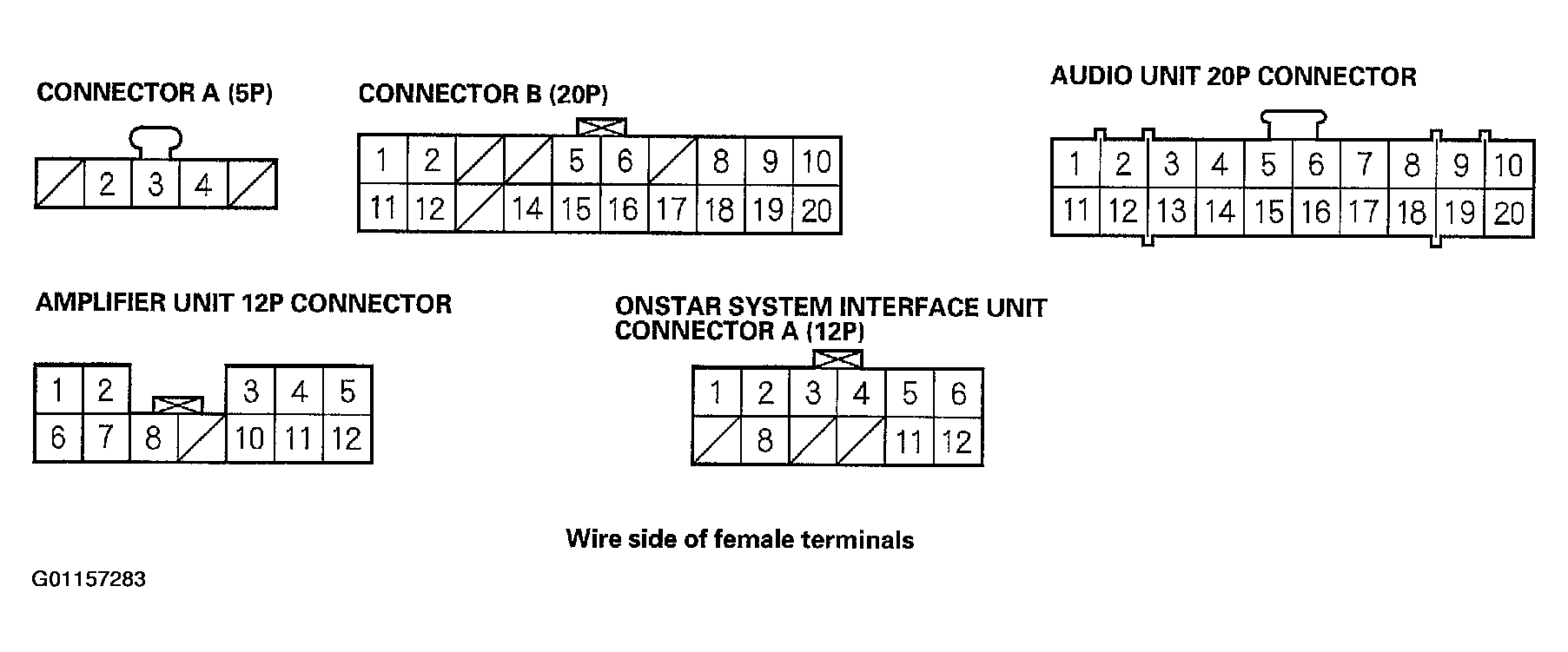

Fig 2: Display Unit Connectors (1999 model)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

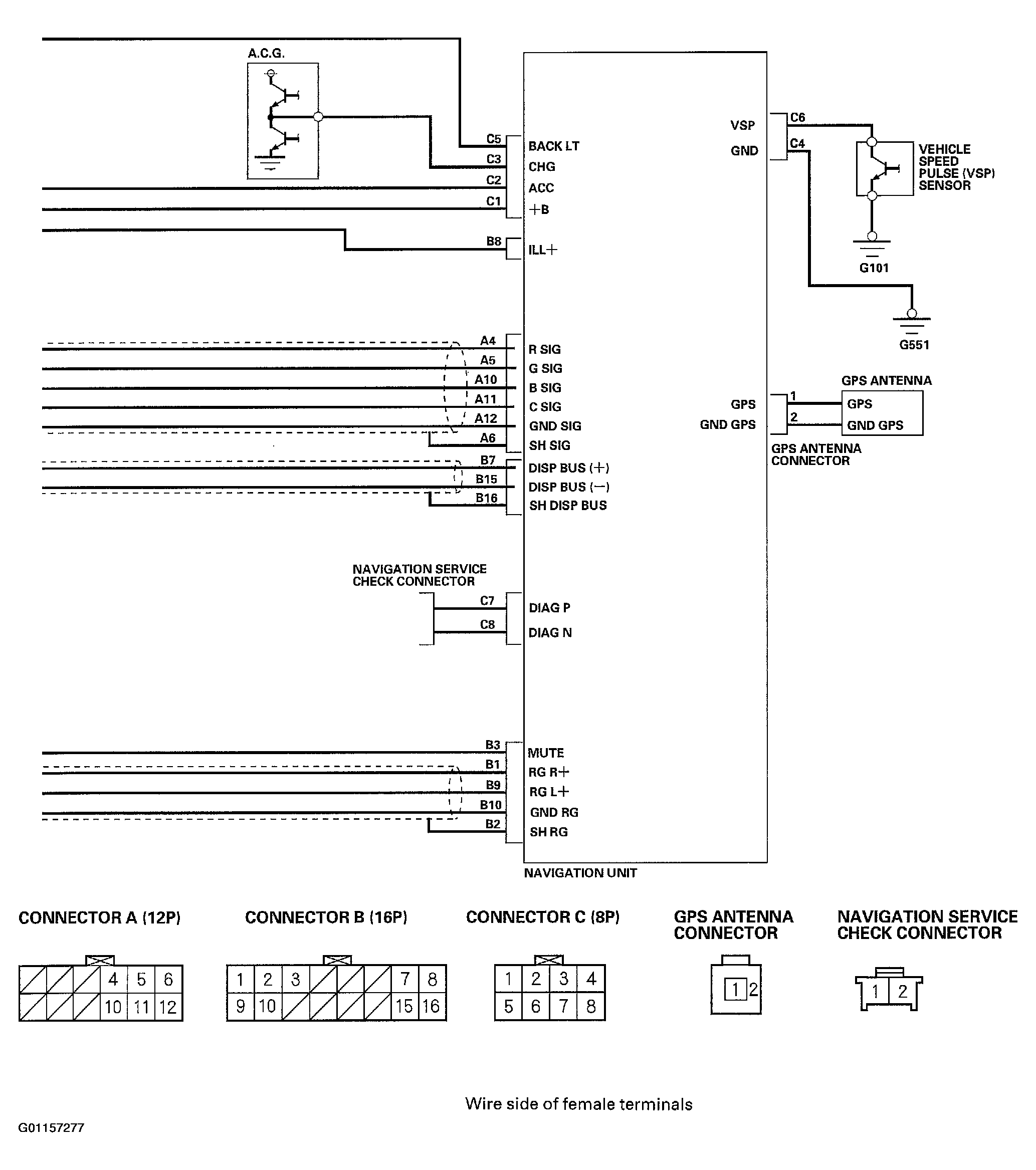

Fig 3: Navigation System Wiring Diagram (1999 model - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

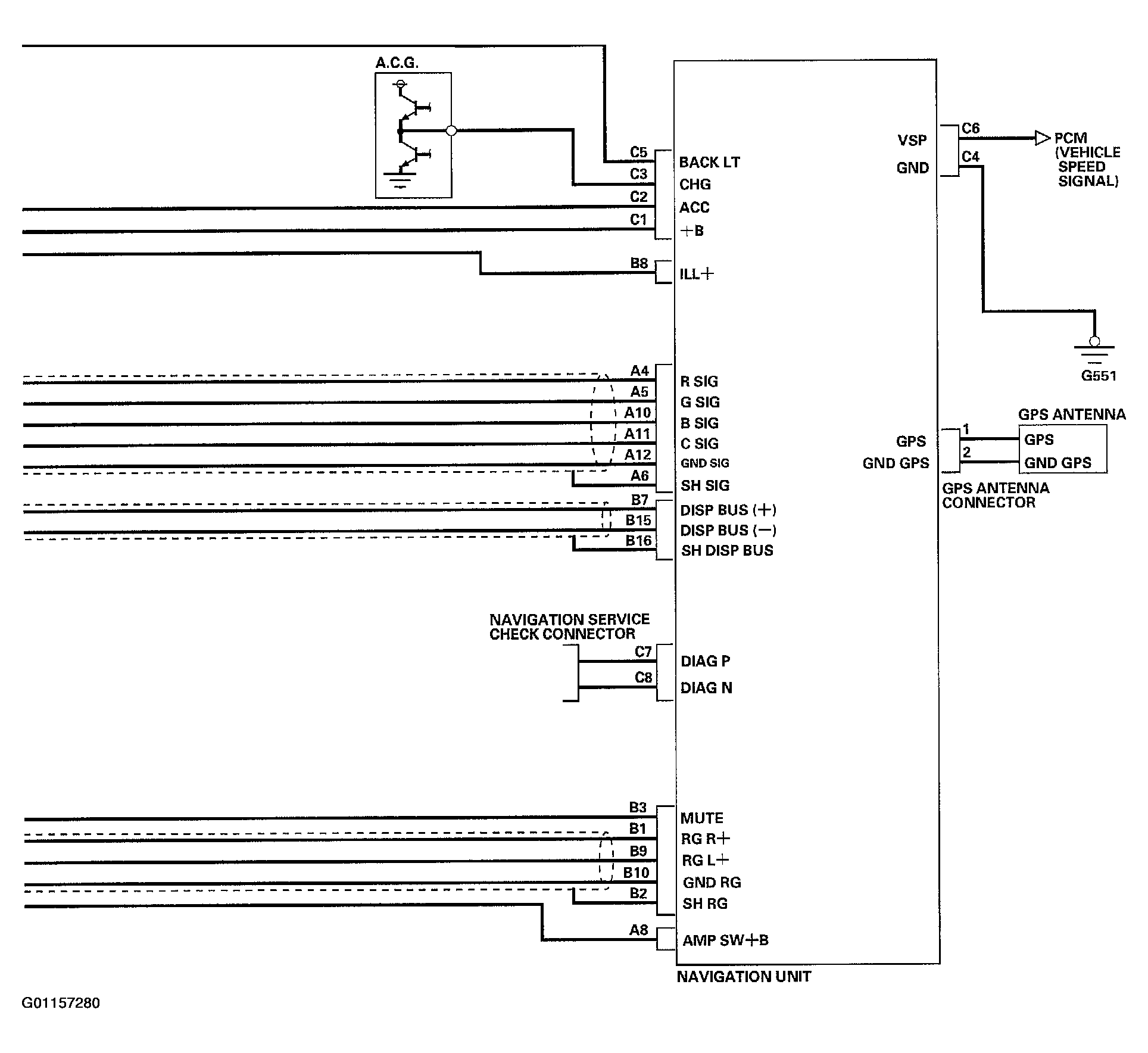

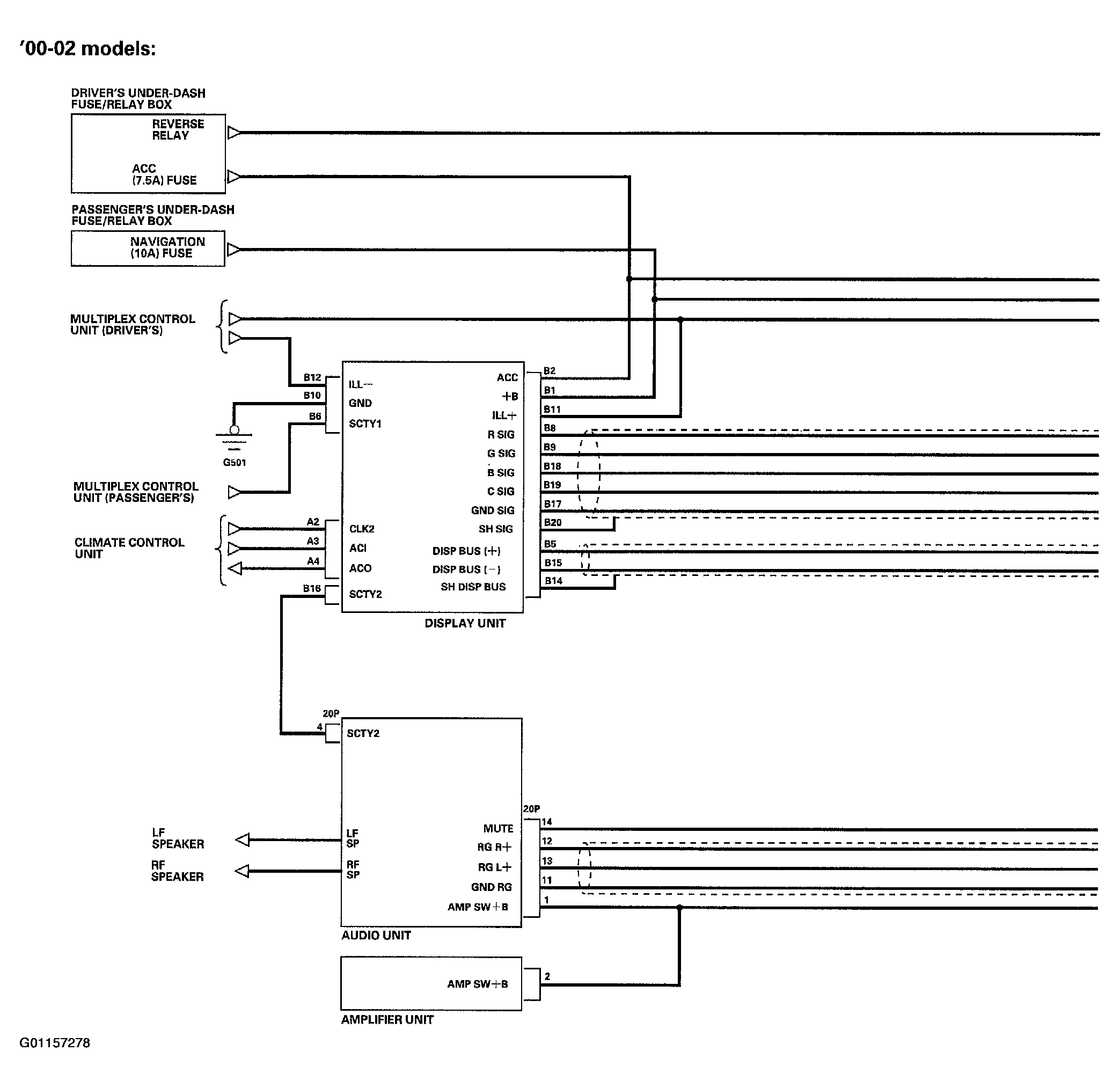

Fig 4: Navigation System Wiring Diagram (2000-02 models - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Display Unit Connectors (2000-02 models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Navigation System Wiring Diagram (2000-02 models - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

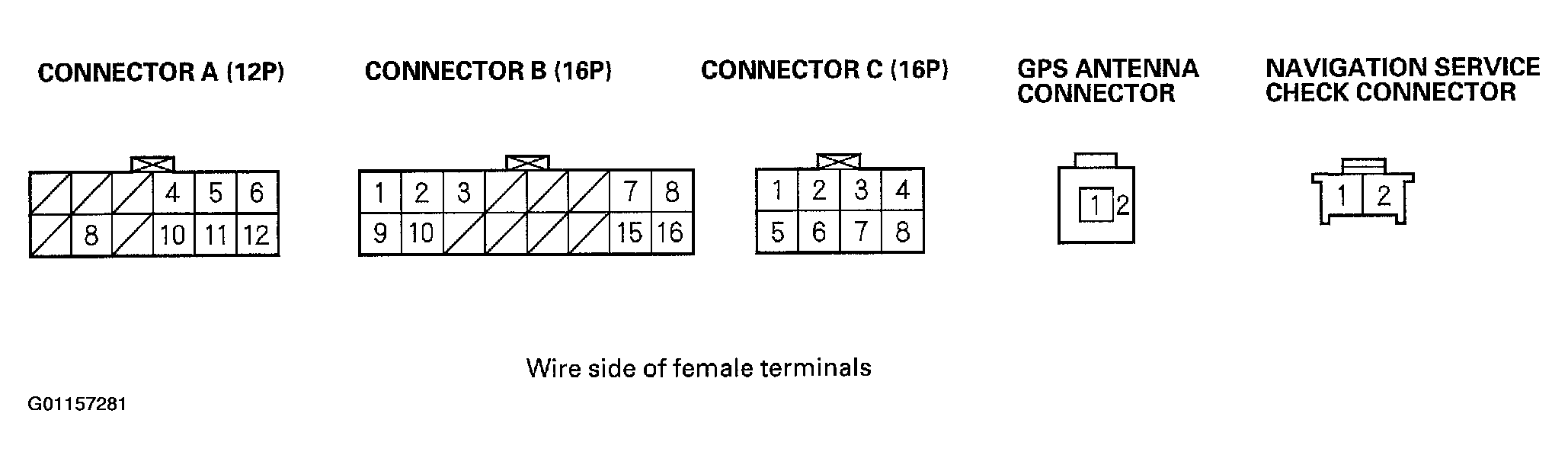

Fig 7: Navigation Unit Connectors (2000-02 models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

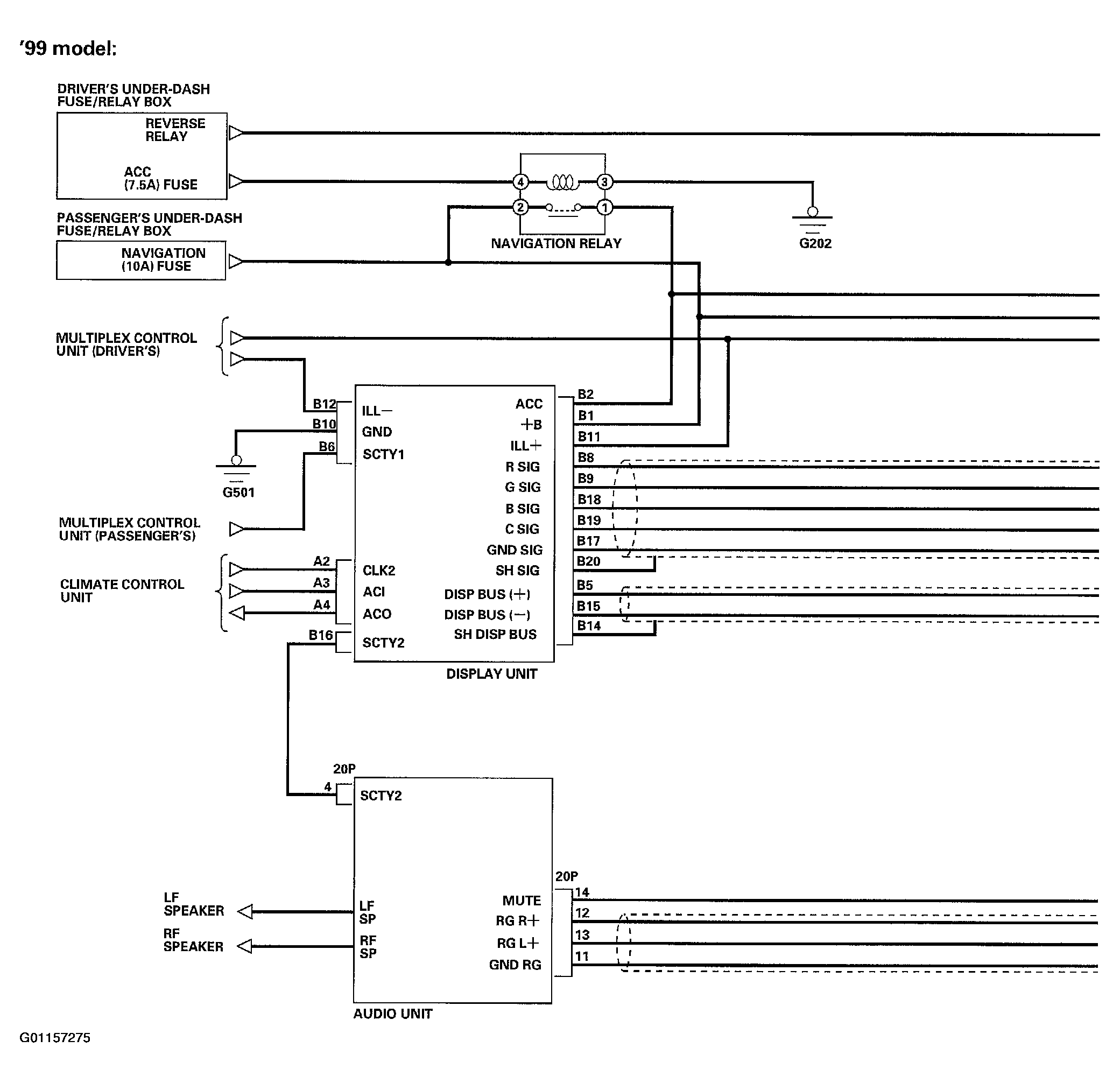

Fig 8: Navigation System Wiring Diagram (2003 model - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

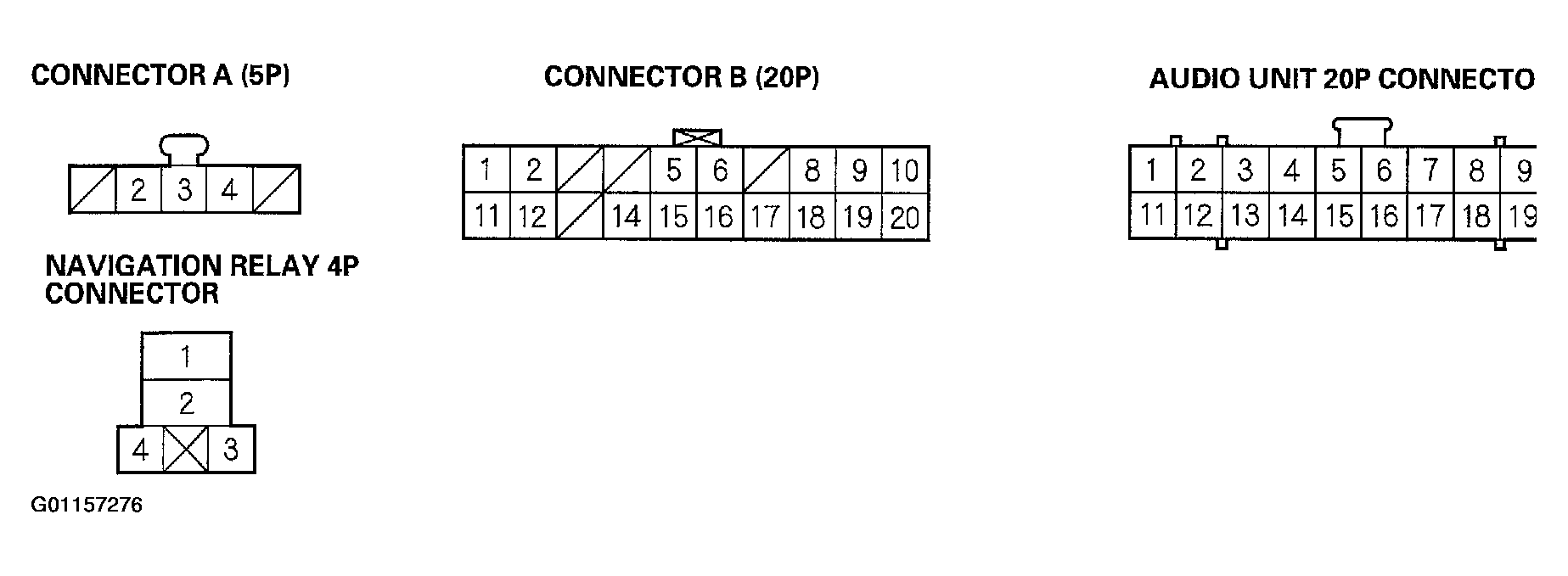

Fig 9: Display Unit Connectors (2003 model)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

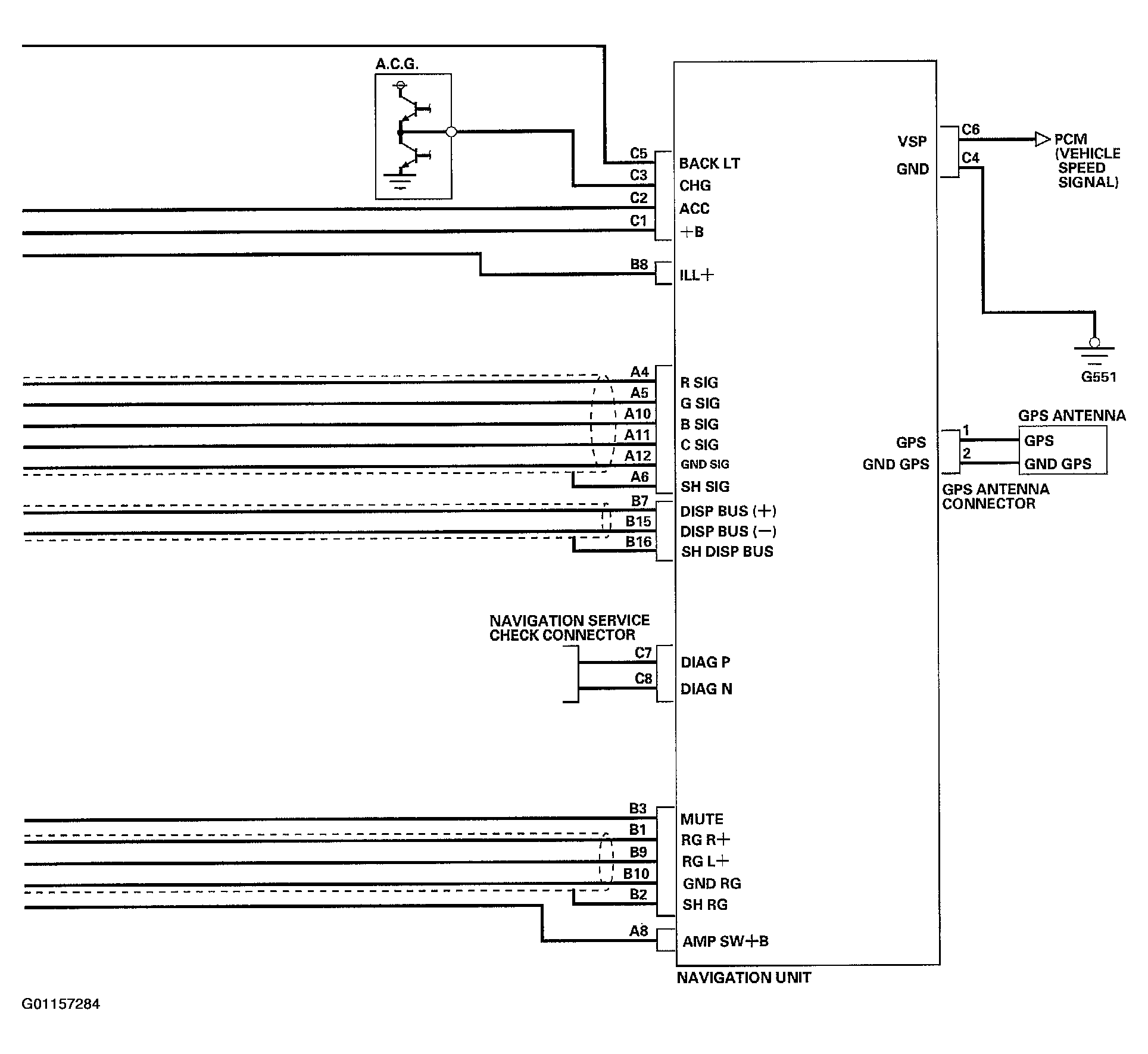

Fig 10: Navigation System Wiring Diagram (2003 model - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Navigation Unit Connectors (2003 model)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
