Shift Lever Detent Bracket Assembly Connector End View

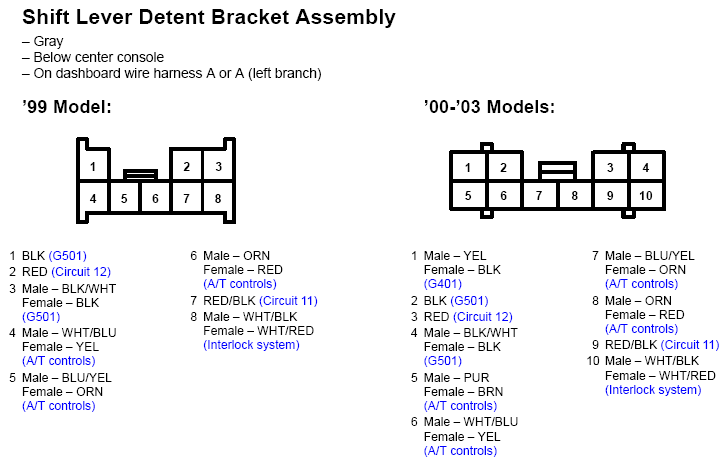

Fig 1: Shift Lever Detent Bracket Assembly Connector End View

G11247403

Courtesy of AMERICAN HONDA MOTOR CO., INC.
