Repair and Diagnosis (Single Page)
>>
Brakes
>>
Traction Control
>>
Vehicle Stability Assistance System
>>
System Description
>>
VSA Control Unit Inputs and Outputs
>>
Connector B (16P)
Connector B (16P)
Fig 1: VSA Control Unit Connector B (16P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

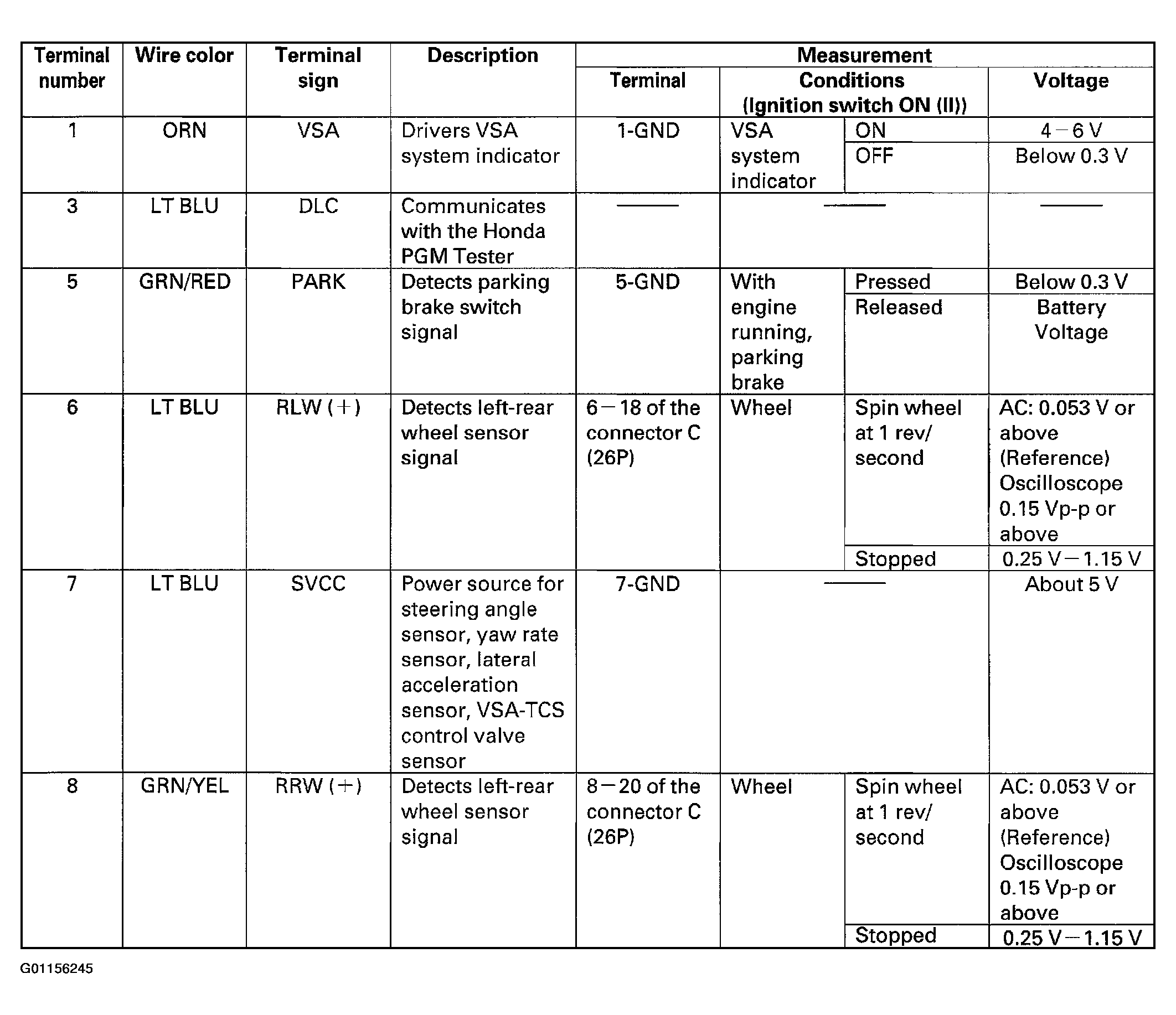

Fig 2: VSA Control Unit Inputs & Outputs For Connector B Chart (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

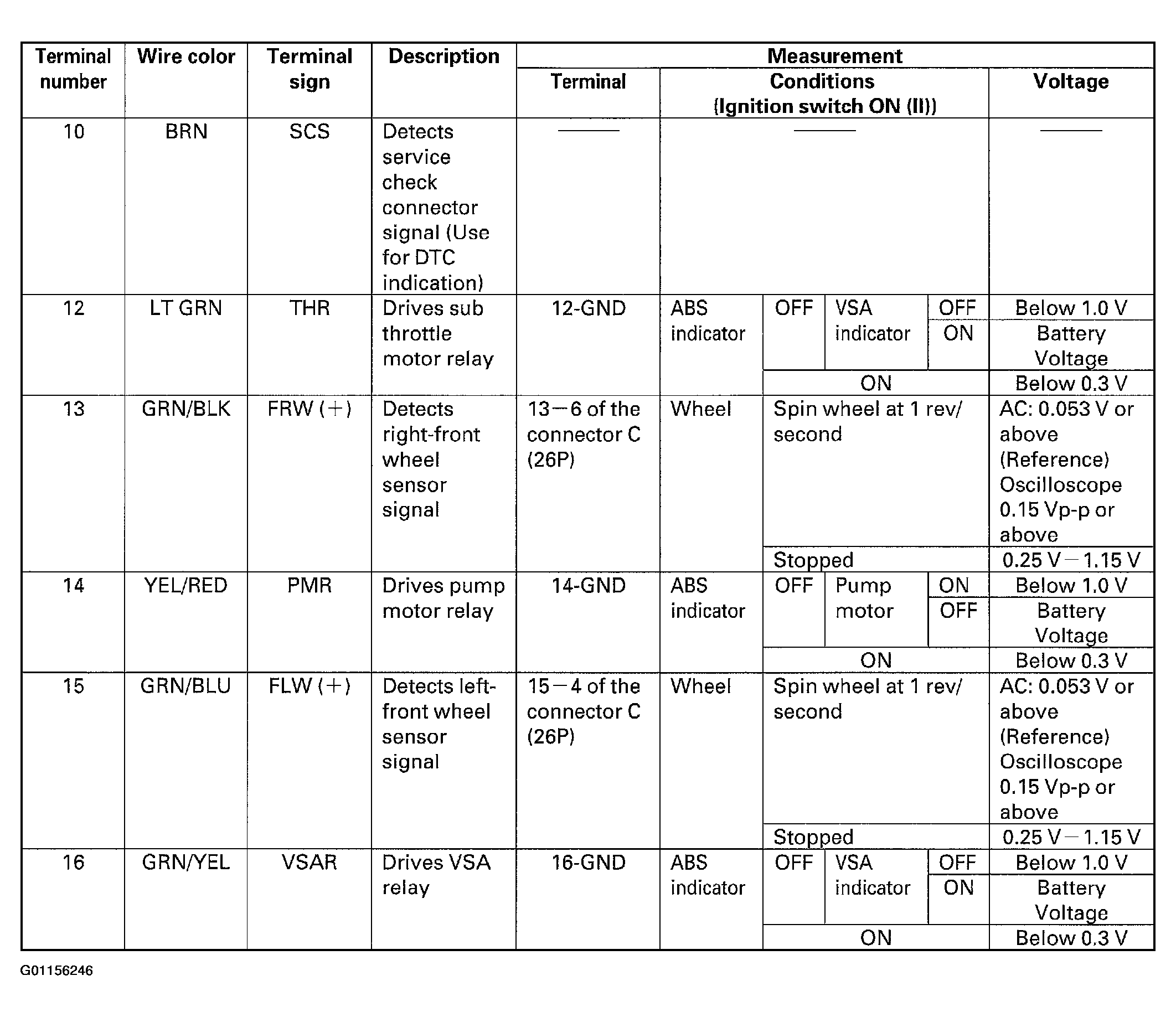

Fig 3: VSA Control Unit Inputs & Outputs For Connector B Chart (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
