Steering Linkage and Gearbox Inspection

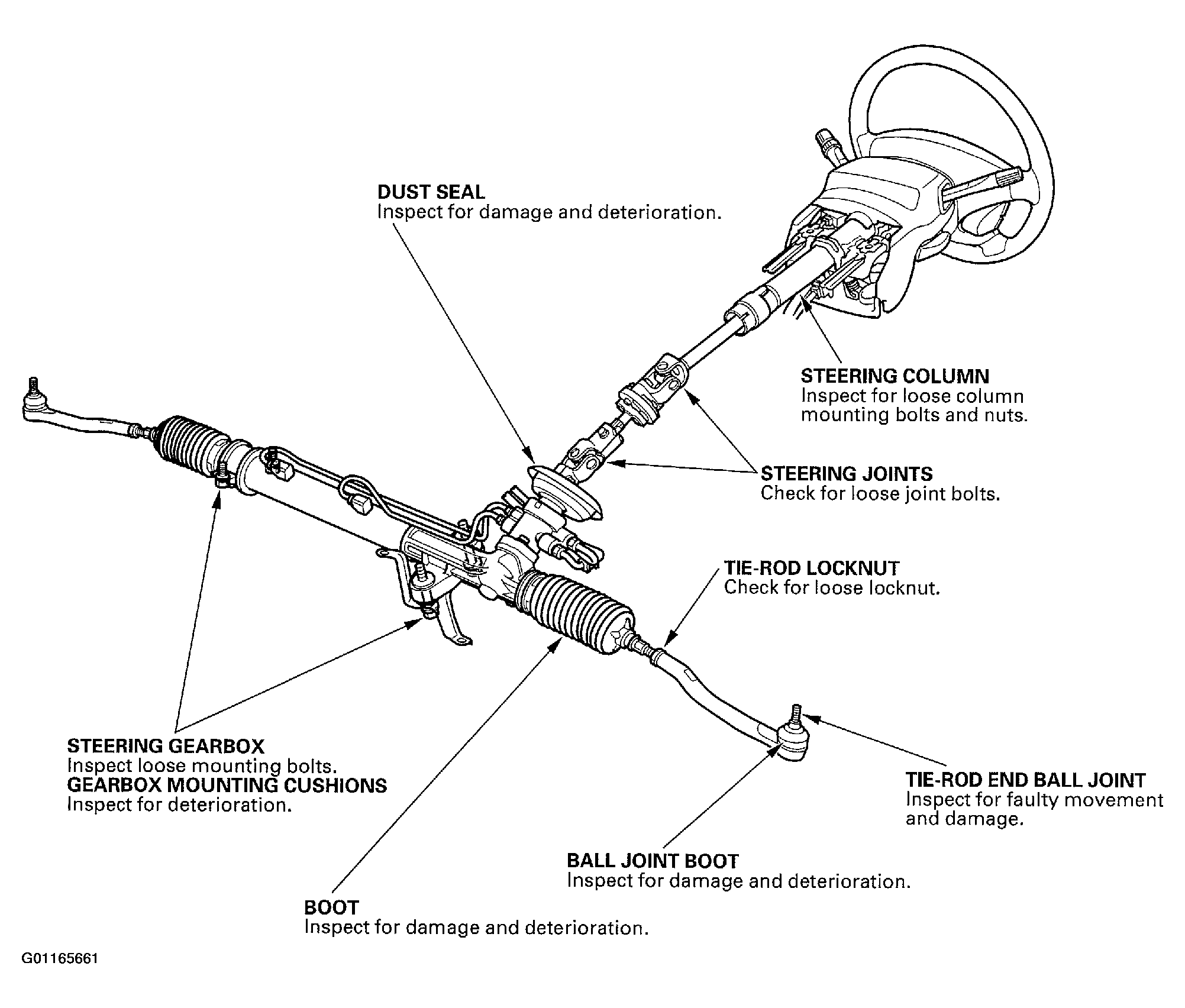

Fig 1: Inspecting Steering Linkage & Gearbox

G01165661

Courtesy of AMERICAN HONDA MOTOR CO., INC.
