Hazard Warning Switch Connector End View

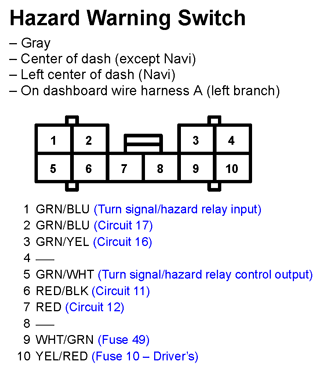

Fig 1: Hazard Warning Switch Connector End View

G11247293

Courtesy of AMERICAN HONDA MOTOR CO., INC.
