ILCO Immobilizer Key Code Duplicator (99-029)

Publication date: 2003-04-28
Reference number: 99-029

ILCO IMMOBILIZER KEY CODE DUPLICATOR

TECHNICAL SERVICE BULLETIN

Reference Number(s): 99-029, Date of Issue: April 28, 2003

ACURA:	Models With A Type 1, 2, Or 3 Immobilizer System
CATEGORY:	Tools
APPLIES TO:	Models With a Type 1, 2, or 3 Immobilizer System - ALL

Superceded Bulletin(s): 99-029, Date of Issue: June 26, 2000

NOTE: Supersedes 99-029, dated June 26, 2000.

SERVICE INFORMATION

The Ilco Immobilizer Key Code Duplicator (Model No. ILCRW2A), manufactured by Silca and supplied by Ilco Unican Corporation, is a portable, lightweight tool that reads the transponder code from a programmed ignition key and duplicates that code into an Ilco programmable key. The Ilco Immobilizer Key Code Duplicator has these features:

You need only one programmed ignition key for duplication.
Customer convenience: you do not need your customer's vehicle or all of the programmed ignition keys (master and valet).
Transponder code duplication takes only seconds after cutting the key blank with a suitable key cutter.
You can make as many duplicate ignition keys as you need.
The tool is secured by an assigned password.
A rechargeable, internal battery gives you portability and more than 4 hours of operating time.
The tool comes with a manufacturer's limited 5-year warranty.

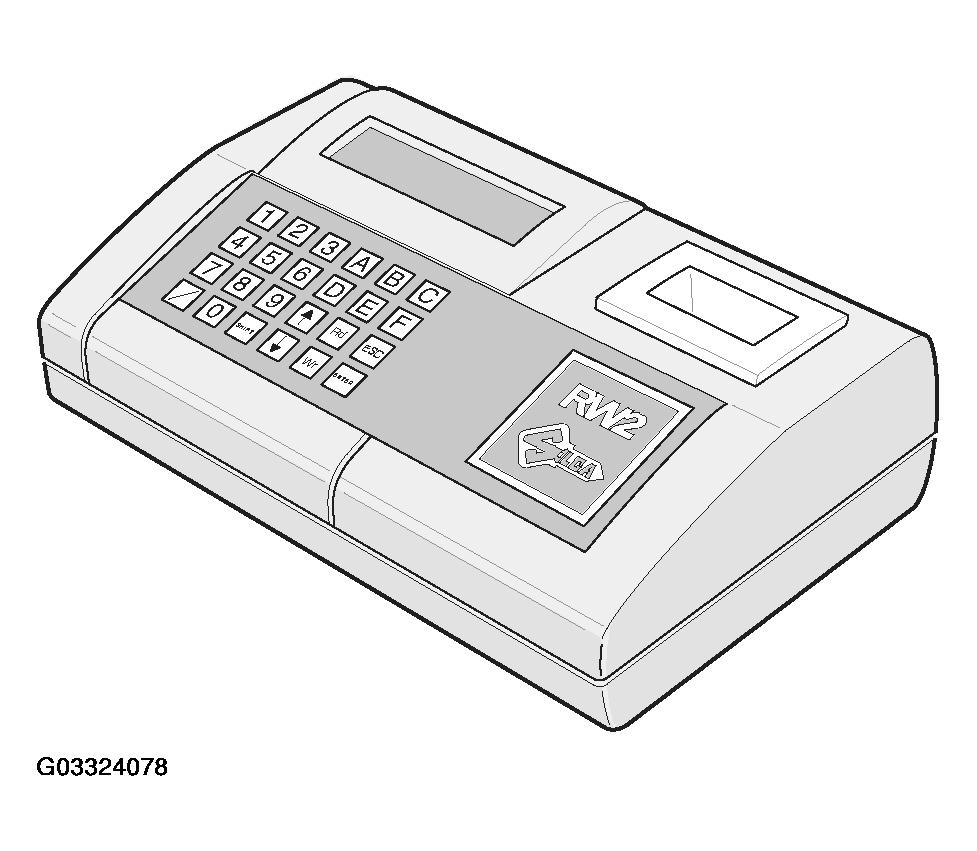

Fig 1: ILCO Immobilizer Key Code Duplicator (Model No. ILCRW2A)

The Ilco Immobilizer Key Code Duplicator works only with Ilco programmable key blanks. These key blanks come with no stored transponder codes and have a T5 stamped on the shank or molded into the grip.

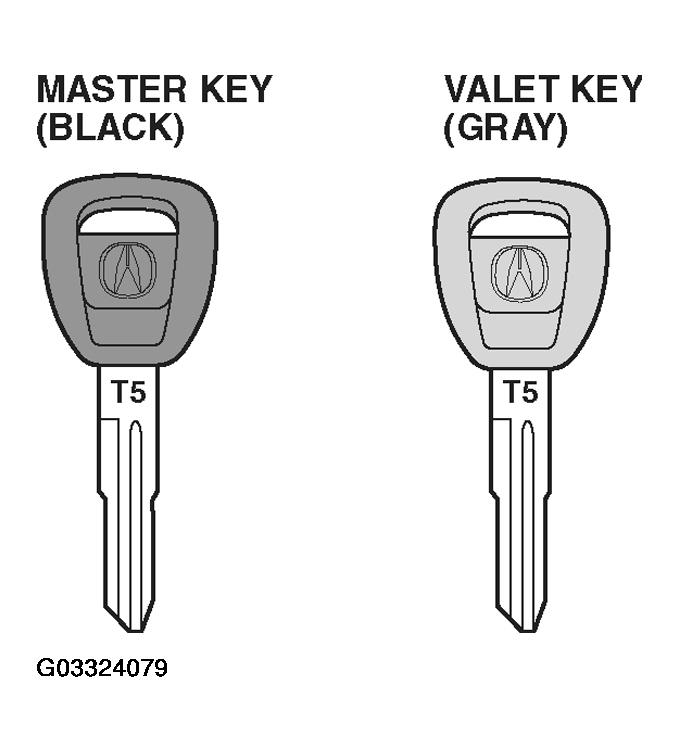

Fig 2: Identifying ILCO Immobilizer Keys

It cannot duplicate any programmed ignition keys with a V stamped on the shank. Those keys are used exclusively with a Type 4 (rolling code) immobilizer system. If you insert a Type 4 key into the key code duplicator, the display reads TRANSPONDER NOT DETECTED.

ADDING AND REPLACING PROGRAMMED IGNITION KEYS

With one programmed ignition key from your customer, you can make additional programmed ignition keys or replacements for lost programmed ignition keys with the Ilco Immobilizer Key Code Duplicator and Ilco programmable key blanks.

Cut the Ilco T5 key blank with a suitable key cutter (see Service Bulletin 99-010 , Cutting Keys With the Exacta Code Key Cutter ), and then follow the key code duplicator's instruction manual to code the key's transponder with the code of the programmed ignition key.

PARTS INFORMATION

Acura Ilco Master Key Blank (10 Pack): Model No. ILC35113T5A

Acura Ilco Valet Key Blank (10 Pack): Model No. ILC35114T5A

ORDERING INFORMATION

To order Ilco programmable key blanks, contact the Acura Tool and Equipment Program.
