DTC 26: Lateral Acceleration Sensor

WARNING: This page is about a different variant/trim than selected.

For DTC testing chart, see Fig 1 and Fig 2 .

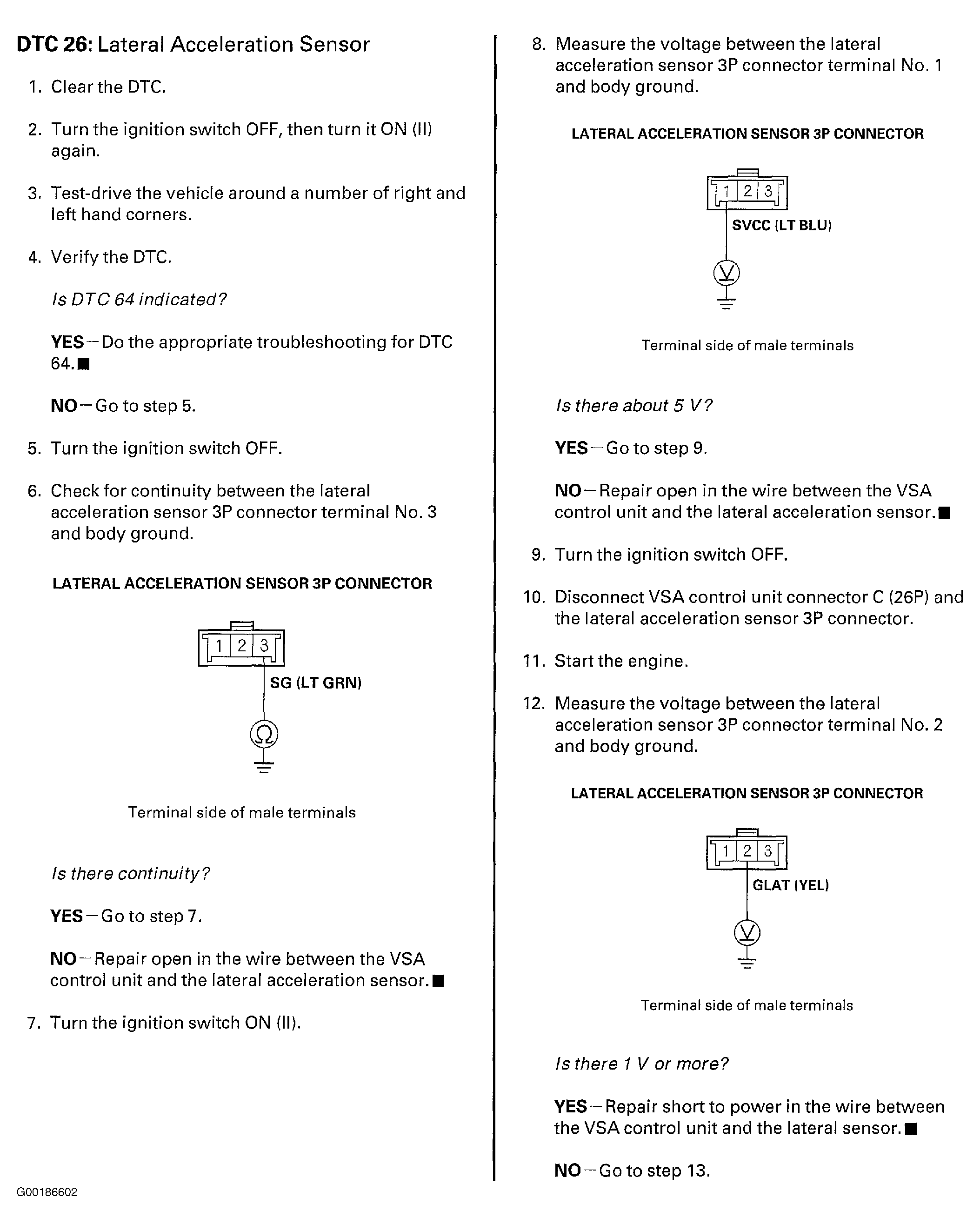

Fig 1: DTC 26: Lateral Acceleration Sensor Trouble Shooting Chart (1 of 2)
G00186602Courtesy of AMERICAN HONDA MOTOR CO., INC.

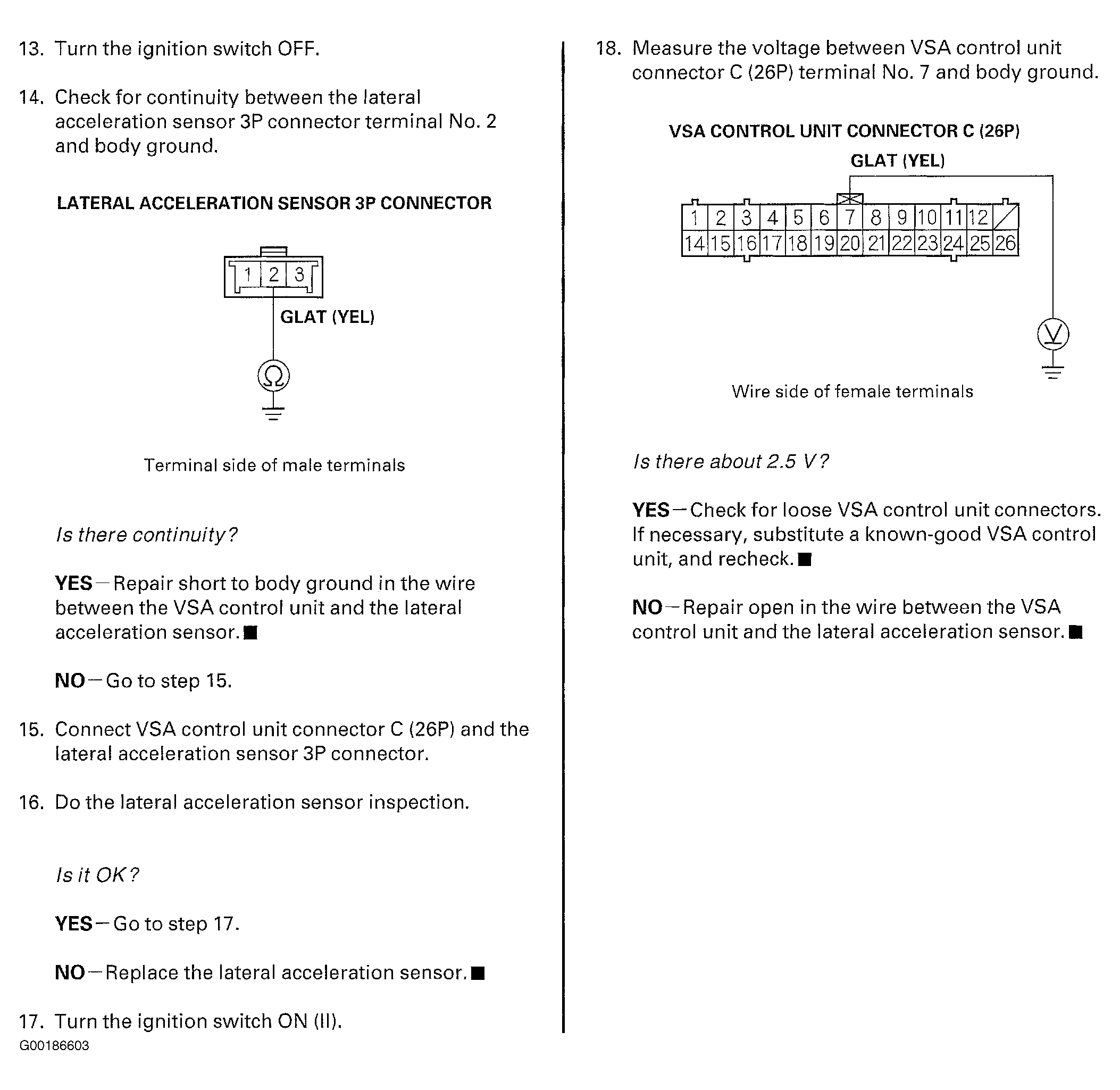

Fig 2: DTC 26: Lateral Acceleration Sensor Trouble Shooting Chart (2 of 2)
G00186603Courtesy of AMERICAN HONDA MOTOR CO., INC.
