Timing Belt: Inspection

WARNING: This page is about a different car, the 2003 Acura 3.2TL, 2002 Acura 3.2TL, 2001 Acura 3.2TL, 2000 Acura 3.2TL, and 1999 Acura 3.2TL. However, it is still accessible from the selected car via links, so may be relevant.

Remove ignition coil cover. See Fig 1.
Remove the front upper cover. See Fig 2.
Inspect the timing belt for cracks and oil or coolant soaking. Replace the belt if it is oil or coolant soaked. Remove any oil or solvent that gets on belt. See Fig 3.

Fig 1: Removing Ignition Coil Cover

Courtesy of AMERICAN HONDA MOTOR CO., INC.

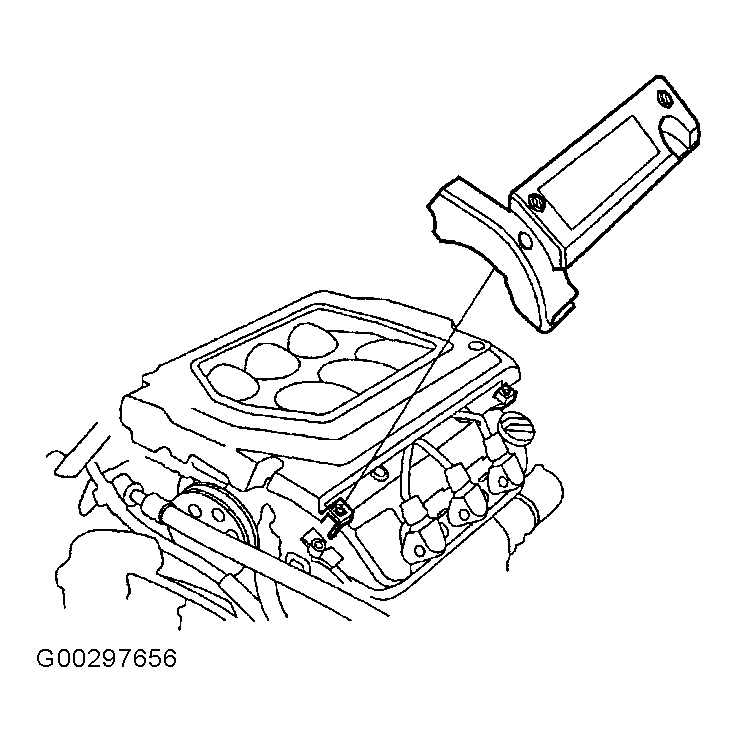

Fig 2: Removing Front Upper Cover

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Inspecting Timing Belt For Cracks & Oil Or Coolant Soaking

Courtesy of AMERICAN HONDA MOTOR CO., INC.
